Accessories : Wristband Rfid Transponder

$72.00
For Special & Volume Pricing - Call +61 489 087 085
WB06
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

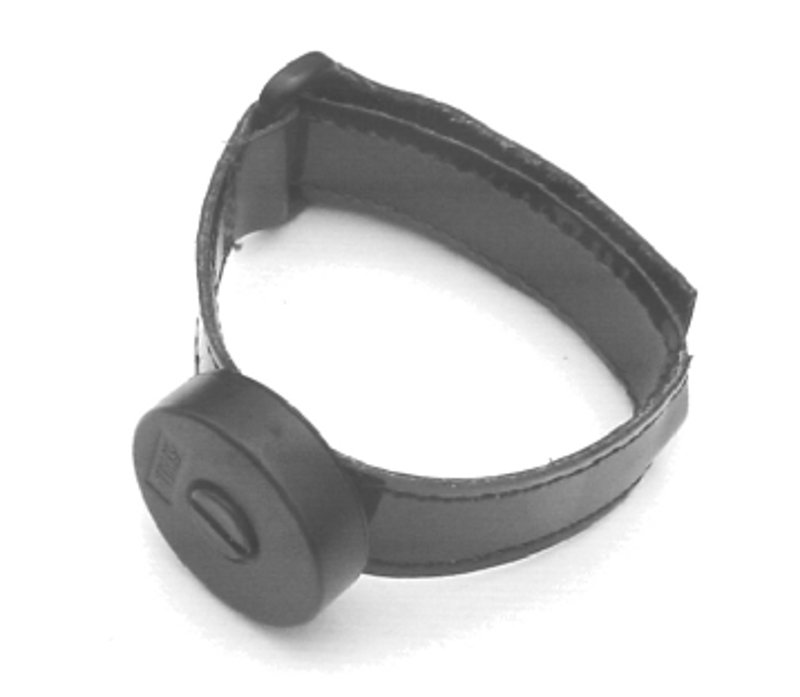

The Axeze WB06 Leather RFID Wristband is a high-performance access control accessory, designed for secure, reliable identification in industrial, event, or corporate environments. Featuring a larger transponder fixed externally, the WB06 offers an extended read range of up to 11cm, surpassing similar models like the WB-08. Constructed with durable leather and poly-oxy-methylene (POM) materials, this wristband is built to withstand extreme conditions and daily wear, providing IP67 protection against dust and water. Its compact and lightweight design ensures comfort while maintaining functionality, making it ideal for both staff and visitor management systems.


Product Features

  • Durable leather wristband with external fixed transponder
  • Longer read range (~11cm) compared to WB-08 (~7cm)
  • Read-only functionality, 64-bit memory, 1 memory page
  • Operating frequency: 134.2 kHz, FSK modulation
  • Powered directly from the reader signal (no battery required)
  • IP67 rated – dustproof and waterproof
  • Robust against electromagnetic interference and X-rays
  • Operating temperature: -25°C to +85°C; storage: -40°C to +100°C
  • Compact dimensions: φ29.4 mm × 8.4 mm; lightweight at 8g
  • Ideal for access control, events, and secure identification applications


Product Specifications

Specification

Details

Product Type

RFID Wristband

Brand / Manufacturer

Axeze

Model

WB06

Functionality

Read Only

Memory

64 bits / 1 Page

Operating Frequency

134.2 kHz

Modulation

FSK 134.2 kHz / 123.2 kHz

Transmission Principle

Half Duplex (HDX)

Power Source

Reader powered

Typical Reading Range

11 cm

Case Material

Poly-Oxy-Methylen (POM), Black

Protection Class

IP67

Operating Temperature

-25°C to +85°C

Storage Temperature

-40°C to +100°C

Dimensions

φ29.4 mm ± 0.5 mm x 8.4 mm ± 0.4 mm

Weight

8 g

Packaged Quantity

1 Wristband

Features

Manufacturer
:
Axeze

Attachments

WRISTBAND RFID TRANSPONDER Brochure (Datasheet_WB-06.pdf., 288 Kb) [Download]

Specifications



Functionality

Read Only

Memory (bits)

64

Memory Pages

1

Modulation

FSK 134.2 kHz / 123.2 kHz

Transmission Principle

Half Duplex (HDX)

Power Source

Powered from the reader signal

Typical reading range

approx 7cm

Operating Temperature

-25° to +70°C

Storage Temperature

-40° to +85°C

Case Material

Glass

Protection Class

Hermetically sealed

EMC

Programmed code not affected by normal electromagnetic Interference or X-rays

Dimensions

φ3.85 mm ± 0.05 mm x 23.1 mm ± 0.5 mm

Weight

0.6g

Operating Frequency

134.2kHz
