Description

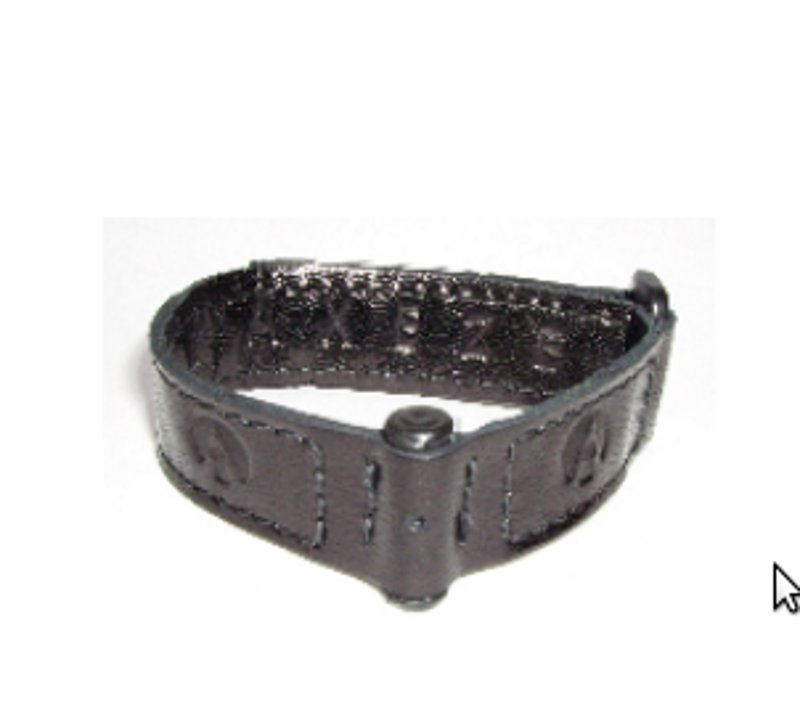

The WB-08 Glass Transponder wristband can be used with all Axeze LF readers, which currently include the KEP, KEN and KES ranges of Readers and Reader/Controllers. The wristband is made from quality black leather.
Attachments
Specifications
|
Functionality |
Read Only |
|
Memory (bits) |
64 |
|
Memory Pages |
1 |
|
Modulation |
FSK 134.2 kHz / 123.2 kHz |
|
Transmission Principle |
Half Duplex (HDX) |
|
Power Source |
Powered from the reader signal |
|
Typical reading range |
approx 7cm |
|
Operating Temperature |
-25° to +70°C |
|
Storage Temperature |
-40° to +85°C |
|
Case Material |
Glass |
|
Protection Class |
Hermetically sealed |
|
EMC |
Programmed code not affected by normal electromagnetic Interference or X-rays |
|
Dimensions |
φ3.85 mm ± 0.05 mm x 23.1 mm ± 0.5 mm |
|
Weight |
0.6g |
|
Operating Frequency |
134.2kHz |
