Description

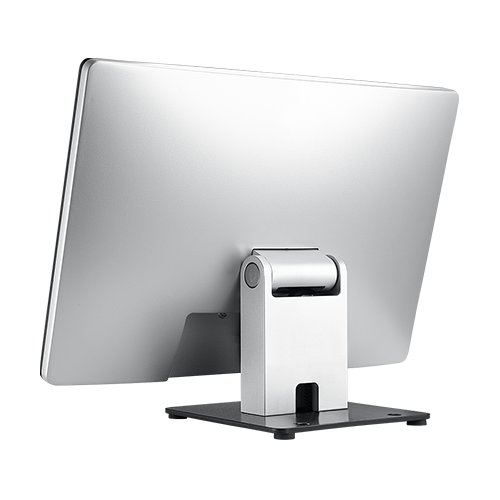

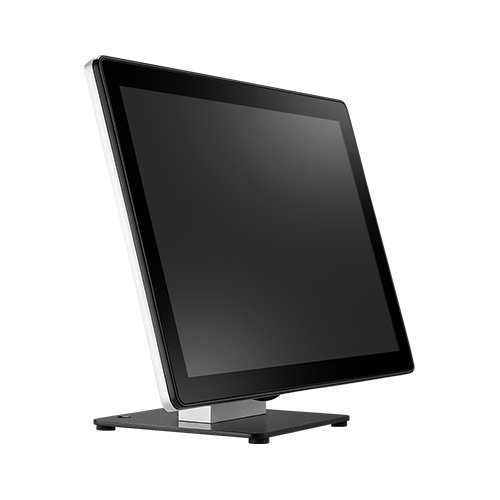

Advantech 10.IN 16:10 - HD - NON TOUCH MONITOR - GLASS - IP65 FRONT - HDMI - USB-C - VESA 75x75 - BLACK - SINGLE STAND
10.1" TFT display with LED backlight
Supports VESA (75 x 75 mm) and wall mounting
IP65-rated front panel
Compact, future-ready and simple design
USB-C solution optimises serviceability
Specifications :
| Audio | |
| Speakers | No |
| Warranty | |
| Limited Warranty Duration | |
| Environmental Conditions | |
| Minimum Operating Temperature | 0 |
| Maximum Operating Temperature | 40 °C |
| Miscellaneous | |
| Application/Usage | Healthcare |
| Package Contents | USC-M10G Display, Stand, VESA |
| Cable Type Included | USB C to USB C cable, 60cm, W/lock |
| Video | |
| Contrast Ratio | 800:1 |
| Brightness | 350 cd/m² |
| Maximum Resolution | 1280 x 800 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Inputs | 1 |
| USB Type-C | Yes |
| Total Number of USB Type-C Ports | 1 |
| Physical Characteristics | |
| Height | 163 mm |
| Width | 244.4 mm |
| Depth | 27 mm |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Stand Color | Black |
| Product Color | Silver |
| Color Family | White,Silver |
| General Information | |
| Product Type | LCD Monitor |
| Manufacturer Part Number | USC-M10G-BTC03 |
| Manufacturer Website Address | |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | USC-M10G |
| Product Name | 10.1" 16:9 Monitor with 1280x800 Resolution |
| Product Series | USC-M10 |
| Brand Name | Advantech |
| Technical Information | |
| Aspect Ratio | 16:10 |
| Response Time | 25 ms |
| Screen Surface | Anti-glare |
| Viewable Screen Size | 10.1" |
| Screen Mode | HD |
| Number of Screens | 1 |
| Horizontal Viewing Angle | 170 ° |
| Vertical Viewing Angle | 170 ° |
| Display Screen Type | Flat Panel |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Stand Included | Yes |
| Screen Size Class | 10 |
| Ingress Protection (IP) Rating | IP65 |
| Bezel Color | Black |
