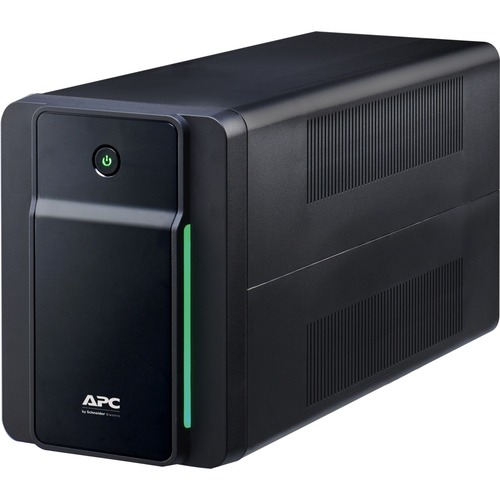

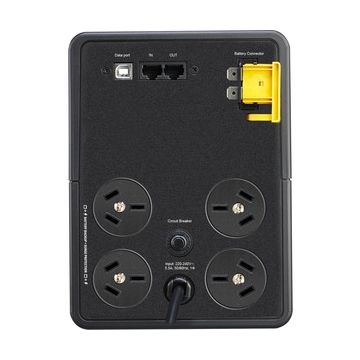

APC by Schneider Electric Back-UPS Line-interactive UPS - (1.20 kVA/650 W - AVR - 8 Hour Recharge)

BX1200MI-AZ
$299.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

APC by Schneider Electric Back-UPS Line-interactive UPS - 1.20 kVA/650 W - AVR - 8 Hour Recharge - 48 Second Stand-by - 230 V AC Input - 230 V AC Output

Specifications :

Controls/Indicators

Status Indicators

LED Status display with on line : on battery

Miscellaneous

Package Contents

  • Back-UPS 1200VA, 230V, AVR, Australian Sockets
  • User manual

Warranty

Limited Warranty

2 Year

Management

Alarm

Low Battery

On Battery

Battery Information

Battery Chemistry

Lead Acid

Backup/Run Time (Half Load)

6.30 Minute

Backup/Run Time (Full Load)

48 Second

Typical Battery Recharge Time

8 Hour

Environmental Conditions

Maximum Operating Temperature

40°C

Maximum Operating Elevation

914.40 m

Maximum Storage Elevation

914.40 m

Storage Temperature

-15°C - 40°C

Sound Emission (A-Weighted)

40 dB(A)

Technical Information

Application/Usage

Home

Network Device

Electronic Device

Business

Computer

Gaming Console

Dataline Protection

RJ-45

Plug/Connector Type

IEC 60320 C14

Receptacle Type

AUS

AVR

Yes

Transfer Time

6 ms

Physical Characteristics

Weight (Approximate)

7.60 kg

Height

190 mm

Width

140 mm

Depth

390 mm

Product Color

Black

General Information

Product Type

Line-interactive UPS

Manufacturer Part Number

BX1200MI-AZ

Manufacturer Website Address

http://www.schneider-electric.com.au

Manufacturer

Schneider Electric SA

Product Name

Back-UPS 1200VA, 230V, AVR, Australian Sockets

Product Line

Back-UPS

Brand Name

APC by Schneider Electric

Power Description

Input Voltage

230 V AC

Output Voltage

230 V AC

Load Capacity

1.20 kVA/650 W

Surge Energy Rating

273 J

Waveform Type

Stepped Approximated Sine Wave

Input Voltage Range

140 V AC - 300 V AC

Output Frequency

60 Hz

Input Frequency

60 Hz
