Description

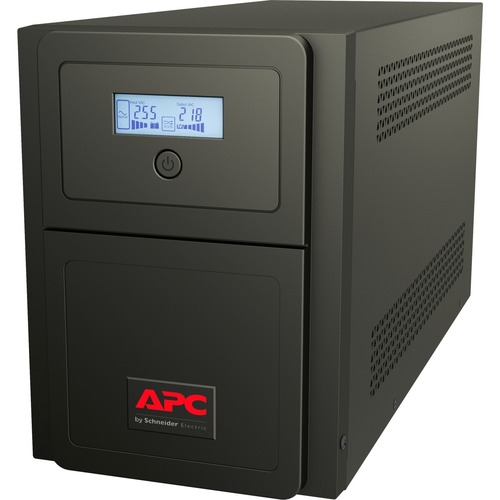

The APC Easy UPS SMV750CAI is designed to provide dependable power protection for small to medium business environments, home offices, and critical equipment. Delivering 750VA / 525W of pure sine wave power, it safeguards sensitive devices against sags, surges, and outages.
Featuring Automatic Voltage Regulation (AVR), this line-interactive UPS stabilises voltage without engaging the battery, extending battery life. The LCD graphics display and LED indicators provide clear, real-time information on system status, power conditions, and active alarms.

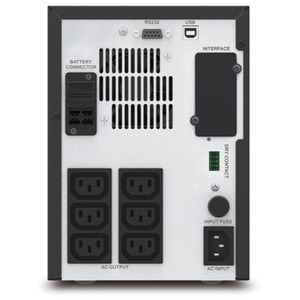

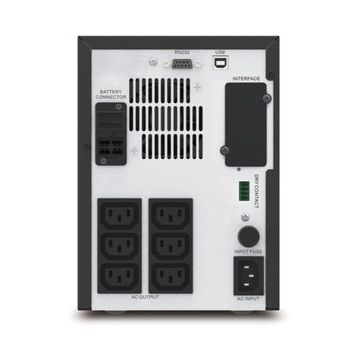

With 6 IEC 320 C13 outlets, the SMV750CAI supports multiple devices, while the USB (HID-compliant) and RS-232 ports allow for flexible monitoring and control. An intelligent card slot enables optional network-based UPS management with the APV9602 Network Management Card.
Its maintenance-free, sealed lead-acid battery offers a 4-hour recharge time and is fully replaceable (compatible with APCRBCV206). Backed by a 2-year warranty covering both the UPS and battery, the APC Easy UPS delivers reliable, business-grade power protection in unstable conditions.
Product Features
- 750VA / 525W capacity – supports business PCs, servers, and POS systems.
- Pure sine wave output – ensures compatibility with sensitive electronics.
- Line-Interactive topology with AVR – corrects voltage without battery usage.
- LCD graphics display + LED indicators – easy-to-read power and status updates.
- 6 x IEC 320 C13 outlets – battery backup & surge protection for multiple devices.
- USB & RS-232 connectivity – manage and monitor UPS performance.
- Network management ready – optional APV9602 card for remote monitoring.
- Quick 4-hour recharge – minimises downtime.
- Overload, low battery, and on-battery alarms – ensures operational awareness.
- 2-year warranty – includes UPS and internal battery coverage.
Product Specifications
Specification | Details |
Model | SMV750CAI |
Brand | APC by Schneider Electric |
Capacity | 750VA / 525W |
Topology | Line-Interactive |
Output Waveform | Pure sine wave |
Input Voltage | 230V AC |
Input Voltage Range | 160 – 295V AC |
Output Voltage | 230V AC |
Output Frequency | 60Hz |
Outlets | 6 x IEC 320 C13 |
Plug Type | IEC 320 C14 |
Battery Chemistry | Sealed lead-acid, maintenance-free |
Number of Batteries | 2 |
Battery Size | 12V, 7000mAh |
Recharge Time | 4 hours |
Transfer Time | 2ms |
Connectivity | USB (HID-compliant), RS-232 |
Network Management Slot | Yes (optional APV9602 card) |
Indicators | LCD display, LED indicators, audible alarms |
Form Factor | Tower |
Dimensions (HxWxD) | 220 x 160 x 410 mm |
Weight | 13.6 kg |
Color | Black |
Warranty | 2 years (UPS & battery) |
Features
- LCD
- Linux
- Windows
