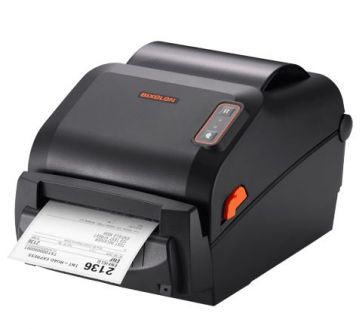

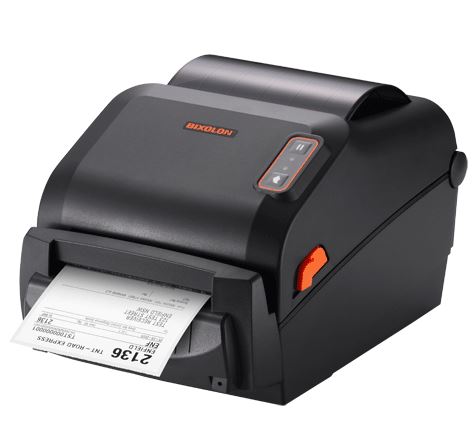

BIXOLON 4" 203dpi USB RS Eth Wifi Cutt Direct Thermal Label Printer

1 inch, Auto-Cutter, Android, iOS, Linux, Windows, 4", 2 Years, Direct Thermal , USB Host, USB, Serial / RS232, Ethernet, WIFI, 203dpi, Black, Monochrome, 7, Desktop, 4 inch, BIXOLON
$799.00
For Special & Volume Pricing - Call +61 2 9090 4610
XD5dC-40UREW
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The BIXOLON XD5-40d is a high-performance 4-inch direct thermal label printer engineered for precision and efficiency. Ideal for logistics, retail, warehousing, healthcare, and manufacturing environments, this advanced desktop printer delivers fast, high-resolution printing at speeds of 7 inches per second. With integrated USB, RS232, Ethernet, and Wi-Fi connectivity, plus an auto cutter for seamless operation, the XD5-40d provides unmatched versatility and convenience. Its compact, clamshell design, optional LCD display, and compatibility with major label software make it the smart choice for modern Australian businesses seeking reliable, cost-effective label printing.


Product Features

  • Fast 203dpi printing at speeds 7 IPS (178 mm/sec )
  • Built-in USB, USB Host, RS232, Ethernet, and Dual-Band Wi-Fi connectivity
  • Compact clamshell design with intuitive controls
  • Auto cutter for precise label separation
  • Adjustable media guide supports widths from 0.5 inch to 4 inch (15 mm to 118 mm)
  • Supports a wide range of 1D & 2D barcodes including QR Code and Data Matrix
  • Extended memory: up to 256MB SDRAM & 256MB Flash
  • Compatible with BIXOLON Label Artist and BarTender label software
  • Twin Function: Easily copy printer settings via USB
  • Energy Star Certified with robust performance in 0–40°C environments


Product Specifications

Specification

Details

Print Method

Direct Thermal

Print Resolution

203 DPI

Max Print Speed

7 IPS (178 mm/sec)

Max Print Width

4 inch

Media Width

0.5 inch to 4 inch

Media Thickness

0.06 mm to 0.20 mm

Roll Diameter

127 mm

Connectivity

USB, USB Host, RS232, Ethernet, Wi-Fi

Barcode Support

1D and 2D barcodes including QR, DataMatrix

Memory

256MB SDRAM, 256MB Flash

Auto Cutter

Yes (Installed)

Dimensions (WxDxH)

194mm x 248mm x 169 mm

Weight

1.89 kg

Operating Temperature

0°C to 40°C

OS Compatibility

Windows, Android, iOS, Linux, macOS

Certification

EnergyStar Certified

Warranty

2 Year

Features

Core Size:
1 inch
Cutter Option:
  • Auto-Cutter
OS Compatability:
  • Android
  • iOS
  • Linux
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Direct Thermal
Interface:
  • USB Host
  • USB
  • Serial / RS232
  • Ethernet
  • WIFI
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 7
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
BIXOLON

Attachments

Brochure (XD5-40Series_brochure.pdf, 163 Kb) [Download]
