BIXOLON 4" Direct Th Label Pr 203dpi USB RS Eth BT LE Cutt

USB, 1 inch, Auto Cutter, Windows, iOS, Android, 4", New, 2 Years, Direct Thermal , USB, Ethernet, Bluetooth, Serial, 203dpi, Monochrome, 7, Desktop, 4 inch, BIXOLON
$885.00
For Special & Volume Pricing - Call +61 489 087 085
XD5dC-40UREBLE
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

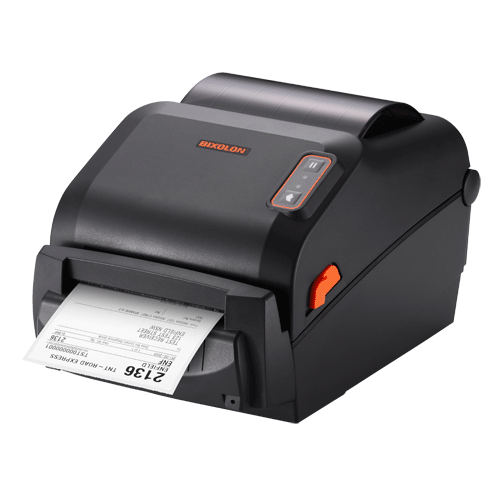

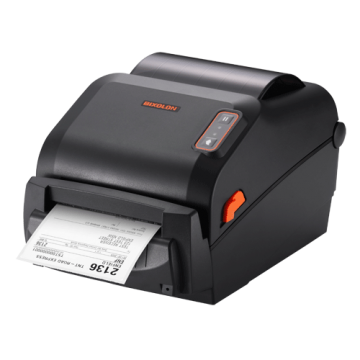

The BIXOLON XD5-40d 4-Inch Direct Thermal Label Printer delivers high-performance printing in a compact, user-friendly design. Featuring 203DPI print resolution, an auto cutter, and versatile connectivity options including USB, USB Host, RS232, Ethernet, and Bluetooth LE, this desktop label printer is ideal for retail, logistics, healthcare, and manufacturing environments.

With print speeds of up to 178mm/sec (7ips), extended memory, and compatibility with leading label design software such as Label Artist™ and BarTender®, the XD5-40d ensures smooth, efficient label production. Its clamshell design with adjustable media guides simplifies media loading, while optional LCD display and field-installable accessories like peelers enhance functionality.

Engineered for reliability, the BIXOLON XD5 series supports 1D/2D barcodes, Unicode fonts, and multiple emulations, ensuring seamless integration into existing workflows. With advanced remote management tools, Twin Function™ USB backup, and SNMP-enabled networking, the XD5-40d is built for business efficiency and long-term productivity.


Product Features

  • High-speed printing up to 178mm/sec (7ips) for faster label production.
  • 203DPI resolution for sharp text, barcodes, and graphics.
  • Auto cutter for precise, professional label output.
  • Multiple connectivity options: USB, USB Host, RS232, Ethernet, Bluetooth LE.
  • Extended memory up to 256MB SDRAM & 256MB Flash for complex printing needs.
  • Compact clamshell design with intuitive buttons for easy operation.
  • Supports 1D/2D barcodes and Unicode fonts for global applications.
  • Compatible with major software including Label Artist™, BarTender®, and SAP®.
  • Field-installable options like peeler and WLAN for flexible upgrades.
  • Durable and versatile with adjustable media guide and roll diameter support Ø127mm.


Product Specifications

Specification

Details

Printing Method

Direct Thermal

Print Resolution

203 dpi

Max Print Width

108 mm (4.25")

Print Speed

178 mm/sec (7 ips)

Media Width

15 mm118 mm

Media Thickness

0.06 mm0.20 mm

Roll Diameter

Max Ø127 mm

Interfaces

USB, USB Host, RS232, Ethernet, Bluetooth LE

Optional Interfaces

Dual-band WLAN (802.11a/b/g/n), Bluetooth V4.2 Classic/LE

Barcode Support

1D (Code39, UPC, EAN, etc.), 2D (QR, Data Matrix, PDF417, MaxiCode, Aztec)

Fonts & Graphics

Multiple bitmap & scalable fonts, Unicode UTF-8/16, logos, and formats

Memory

64MB SDRAM, 128MB Flash (expandable to 256MB each)

Sensors

Transmissive, Reflective (adjustable), Head open

Cutter Option

Auto Cutter

Software Compatibility

Label Artist™, BarTender®, SAP, Windows, Linux, Mac, iOS, Android SDKs

Dimensions (WxDxH)

194mm × 248mm × 169mm

Weight

1.89 kg

Warranty

2 Years

Features

Cable:
  • USB
Core Size:
1 inch
Cutter Option:
  • Auto Cutter
OS Compatability:
  • Android
  • iOS
  • Windows
Print Size:
  • 4"
Product Type:
New
Warranty:
2 Years
Print Method:
  • Direct Thermal
Interface:
  • USB
  • Ethernet
  • Bluetooth
  • Serial
Type:
  • Monochrome
Print Speed :
  • 7
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
BIXOLON

Attachments

Brochure (XD5-40Series_brochure.pdf, 163 Kb) [Download]
