Description

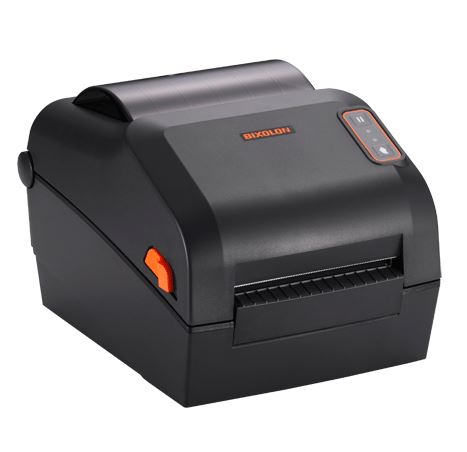

The Bixolon XD5-40dDEK is a high-performance 4 inch direct thermal label printer built for demanding Australian business environments. Featuring a crisp 203 dpi resolution, fast print speeds up to 7 inches per second, and versatile connectivity (USB, USB Host, RS232, Ethernet), it’s ideal for logistics, warehousing, retail, and manufacturing applications. The built-in peeler streamlines label dispensing, while optional field-upgrades—such as auto cutter, WLAN, Bluetooth—ensure this compact clamshell printer evolves with your needs. With extended memory options, SNMP-enabled management, and compatibility with major label design software (Label Artist, BarTender), the XD5-40dDEK delivers reliability, speed, and flexibility for everyday operations.
Product Features
- Direct Thermal Printing at 203 dpi for clear barcodes and text
- Fast Print Speed up to 7 IPS (178 mm/sec) for high-volume jobs
- Built-in Peeler for efficient label peeling and dispensing
- Multiple Interfaces: USB + USB Host, Serial, Ethernet (standard)
- Optional Upgrades: Auto Cutter, Dual-band WLAN, Bluetooth (V4.2)
- Compact Clamshell Design with easy media loading and adjustable guide
- Extended Memory: Standard 64MB SDRAM & 128MB Flash, upgradeable to 256MB each
- Wide Media Support: 0.5 inch –4 inch width, roll diameter 127 mm
- SNMP-enabled Management via XPM & XCM web tools
- Comprehensive SDK Suite for Windows, macOS, Linux, Android, iOS, Chrome, Xamarin
Product Specifications
Specification | Details |
Print Method | Direct Thermal |
Print Resolution | 203 dpi |
Max Print Width | 4 inch (108 mm) |
Max Print Length | 1,000 mm (depending on label format and software limits) |
Print Speed (Max) | 7 IPS (178 mm/sec) |
Media Width Range | 4 inch |
Media Thickness | 0.06 mm – 0.20 mm |
Media Roll Diameter | 127 mm |
Label Core Size | 1 inch (25.4 mm) core (compatible with 0.5 inch core for ribbon where applicable) |
Interfaces (Standard) | USB 2.0, USB Host, Serial, Ethernet |
Optional Interfaces | Bluetooth V4.2 Classic/LE, Dual-band WLAN (2.4 & 5 GHz) |
Memory | 64MB SDRAM & 128MB Flash (standard) optional upgrade to 256MB SDRAM & 256MB Flash |
Sensors | Transmissive (gap), Reflective (adjustable), Head open, Ribbon-end (if thermal transfer ribbon used) |
Barcode Symbologies | 1D & 2D: Code 39, Code 128, EAN-13, UPC-A/E, PDF417, QR Code, Data Matrix, Aztec, etc. |
Fonts & Emulations | SLCS, BPL-Z (ZPL II), BPL-E (EPL), Unicode support, bitmap & scalable fonts |
Software Compatibility | Bixolon Label Artist, Seagull BarTender, Bartender Ultralite, SAP, others |
SDKs & Drivers | Windows, macOS, Linux CUPS, Android SDK, iOS SDK, Chrome SDK, Xamarin SDK, virtual COM drivers |
Control Panel | Intuitive menu buttons, status LEDs |
Dimensions (WxDxH) | 194mm × 248mm × 169mm |
Weight | 1.89 kg |
Power Supply | External 100–240V AC, 50/60Hz |
Energy Efficiency | ENERGY STAR certified |
Operating Environment | 0°C to 40°C, 10–80% RH (non-condensing) |
Storage Environment | -20°C to 60°C, 10–90% RH (non-condensing) |
Warranty | 24 Months Manufacturer Warranty |
Features
Cable:
- USB
Core Size:
1 inch
Cutter Option:
- No Auto-Cutter
OS Compatability:
- Android
- iOS
- Linux
- Windows
Print Size:
- 4"
Warranty:
2 Years
Print Method:
- Direct Thermal
Interface:
- USB Host
- USB
Color:
- Black
Type:
- Monochrome
Print Speed :
- 7
Printer Type / Suitable For:
- Desktop
Print Width:
- 4 inch
