BIXOLON 4" Direct Th Label Printer 203dpi USB IF Peeler

1 inch, Tearbar, Windows, Linux, iOS, Android, 4", 2 Years, Direct Thermal , USB Host, USB, 203dpi, Black, Monochrome, 8, Desktop, 4 inch, BIXOLON
$529.00
For Special & Volume Pricing - Call +61 2 9090 4610
XD5-40dDK
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

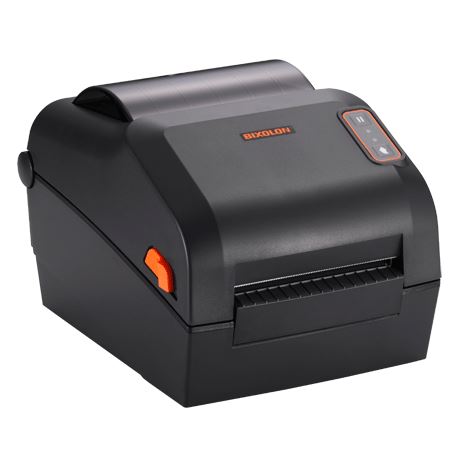

The BIXOLON XD5-40dDK is a powerful and compact direct thermal label printer designed for high-performance, cost-effective desktop labelling. With 203 DPI resolution and a fast 7 IPS (178 mm/s) print speed, this 4 inch printer is ideal for retail, warehousing, logistics, and healthcare environments in Australia.

Equipped with USB and USB Host interfaces, along with a built-in peeler, the XD5-40dDK simplifies media handling and boosts productivity. Its smart clamshell design, advanced media sensors, and compatibility with popular software such as BarTender and Label Artist make setup and use seamless. Upgradeable with WLAN, Bluetooth, or Ethernet options, this printer is built for flexible integration and future growth.


Product Features

  • Direct thermal printing for low-cost, ink-free label production
  • Fast print speed up to 7 IPS (178 mm/s) for high-volume output
  • Standard USB + USB Host interfaces for seamless connectivity
  • Built-in peeler for hands-free label dispensing
  • Adjustable media guide for various media widths (15–118 mm)
  • Compact clamshell design with intuitive controls
  • Optional upgrades: WLAN (dual-band), Bluetooth 4.1, Ethernet, Cutter
  • Extended memory (up to 256MB Flash & SDRAM) for complex print jobs
  • Wide barcode support: 1D & 2D including QR, PDF417, Data Matrix
  • Compatible with Windows, Mac, Linux, Android, iOS SDKs
  • Energy Star certified for efficient energy usage


Product Specifications

Specification

Details

Print Method

Direct Thermal

Print Resolution

203 DPI

Max Print Speed

7 IPS  (178 mm/sec)

Max Print Width

108 mm

Media Width

4 inch

Media Thickness

0.06 mm – 0.20 mm

Media Roll Diameter

127 mm

Interfaces

USB + USB Host

Optional Interfaces

Serial, Ethernet, WLAN, Bluetooth

Memory

64MB SDRAM, 128MB Flash (up to 256MB/256MB)

Barcodes Supported

1D & 2D including QR, PDF417, Data Matrix

Emulations

SLCS, BPL-Z, BPL-E

Display

Optional LCD

Peeler

Included

Cutter Option

Optional Auto Cutter

Software Compatibility

Label Artist, BarTender, SAP, CUPS

SDKs

Android, iOS, Windows, Linux, Chrome, Xamarin

Dimensions (WxDxH)

194mm x 248mm x 169 mm

Weight

1.89 kg

Operating Temp

0°C to 40°C

Compliance

EnergyStar, CE, FCC, RCM

Warranty

24 months

Features

Core Size:
1 inch
Cutter Option:
  • Tearbar
OS Compatability:
  • Android
  • iOS
  • Linux
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Direct Thermal
Interface:
  • USB Host
  • USB
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 8
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
BIXOLON

Attachments

Brochure (XD5-40Series_pdf.pdf, 163 Kb) [Download]
