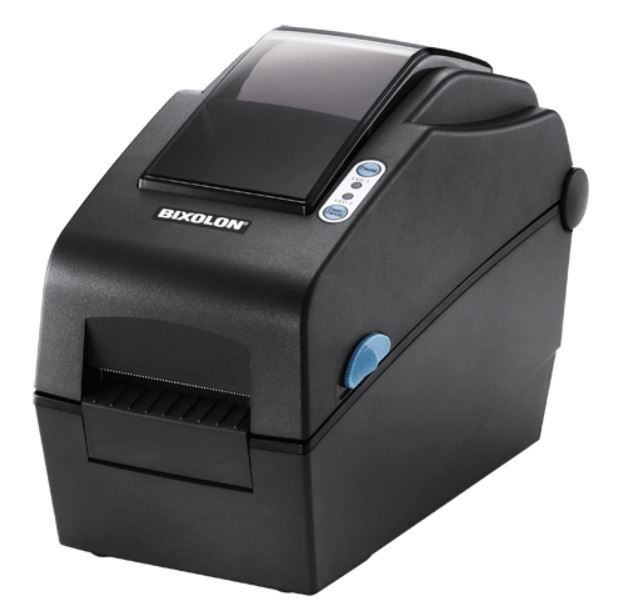

BIXOLON SLP-DX220G 2" DIRECT THERMAL LABEL PRINTER

$380.00
(Inc GST)
For Special & Volume Pricing - Call 0291 919 694
SLP-DX220G/AUS
+ −

Description

The 2-inch (60mm) SLP-DX220 is BIXOLON s most compact Direct Thermal label printer. With media handling capabilities from receipt through label tag stock and wristbandsI

Specifications
Printing Method
Direct Thermal
Printing Width
SLP-DX220: 54 mm
SLP-DX223: 56.9 mm
Media width
Min. 15 mm to Max. 60 mm
Media Tickness
Min. 0.06 mm to Max. 0.20 mm
Sensors
Transmissive, Reflective (adjustable), Head open
Roll Diameter
Max Ø 130 mm
Dot Pitch
SLP-DX220: 203 dpi
SLP-DX223: 300 dpi
Printing Speed (Max.)
SLP-DX220 Max. 152 mm/sec, 6 ips
SLP-DX223 Max. 100 mm/sec, 4 ips
Bar-code Type
1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB
2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Font
Character Sets:
•10 SLCS Resident Bitmap Fonts
•One SLCS Resident Scalable Font
•16 BPL-Z™ Resident Bitmap Fonts
•One BPL-Z™ Resident Bitmap Font
• 5 BPL-E™ Resident Bitmap Fonts
• 23 Code Page
• Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics: Supporting user-defined fonts, graphics, formats, and logos
Emulation
SLCS, BPL-Z™, BPL-E™
BASIC interpreter for data stream processing and ticketing emulations.
Controls
Function
CPU
TBA
Memory
SDRAM: 64MB
Flash (Non-Volatile Memory) 128MB
Interfaces
USB (2.0 full speed) & RS-232C interface
or USB (2.0 full speed) & Ethernet (10/100)
Can also have WLAN with USB Dongle
Auto Cutter
Optional
Driver available
Windows Driver (EURO Plus/Seagull™), OPS Driver, Linux CUPS Driver, MAC Driver, Virtual COM USB/ Ethernet Driver, Utility Program, Label Artist™
Android SDK
Operating Environment
Temperature: 0 to 40 °C
Humidity: 10 to 80% (no condensation)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 10 to 90% (no condensation)
External Dimensions (WxDxH)
120 × 230 × 170 mm
Weight
1.36 Kg
Power Supply
100-240V 50/60Hz

Attachments

Brochure (BR_SLP-DX220.pdf, 1,360 Kb) [Download]
