Description

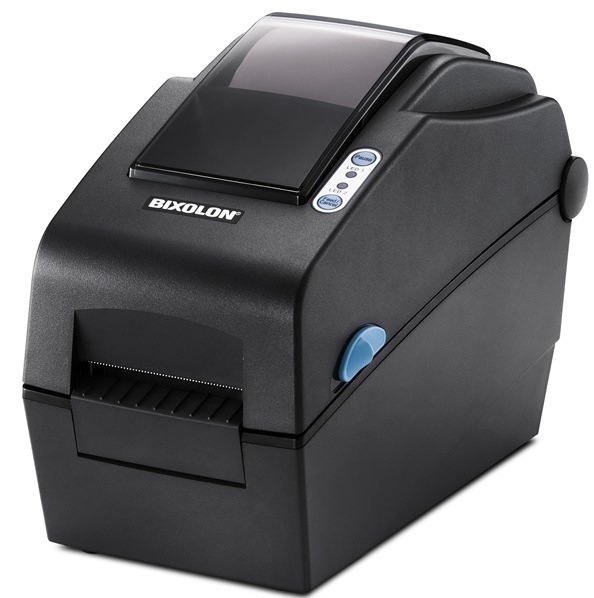

The Bixolon SLP-DX220DG is a compact and high-speed 2 inch direct thermal label printer ideal for retail, logistics, healthcare, and manufacturing. With print speeds up to 6 inches per second and 203 dpi resolution, it delivers fast and accurate label output for high-demand environments. This model includes USB and Serial interfaces with a built-in peeler, making it efficient for continuous labeling tasks. Smart media sensing (gap, black mark, short labels), adjustable paper guide, and Easy Paper Loading support streamlined operation. Backed by BIXOLON’s intuitive Label Artist software, industry-standard emulations (SLCS, BPL-Z, BPL-E), and optional network upgrades (Ethernet, WLAN), the SLP-DX220DG is a smart, scalable solution for Australian businesses.
Product Features
- Direct Thermal Printing with crisp 203 dpi resolution
- High-Speed Performance – 6 IPS (152 mm/s)
- Standard Interfaces: USB 2.0 and Serial
- Built-in Peeler for fast label dispensing
- Advanced Media Detection: Gap, black mark, and short label support
- Compact Footprint with adjustable paper guide and intuitive design
- Intelligent Leap-over: Skips empty labels automatically
- Supports 1D & 2D Barcodes, including QR Code, PDF417, Data Matrix
- Memory Capacity: 64MB SDRAM / 128MB Flash
- Bundled Label Software: BIXOLON Label Artist
- Optional Upgrades: Ethernet, WLAN, Auto Cutter, RTC
- EnergyStar Certified with external power adapter
- Compatible with Windows, macOS, Linux, Android
Product Specifications
Specification | Details |
Print Method | Direct Thermal |
Print Resolution | 203 dpi |
Max Print Speed | 6 IPS (152 mm/sec) |
Max Print Width | 2 inch |
Print Length | 6 mm to 2000 mm |
Media Types | Gap, Black Mark, Notch, Continuous, Fan-Fold |
Media Width Range | 0.5 inch to 2 inch |
Media Thickness | 0.06 – 0.20 mm |
Max Roll Diameter | 130 mm |
Sensors | Transmissive, Reflective (adjustable), Head open |
Interfaces (Standard) | USB 2.0, Serial (RS232) |
Optional Interfaces | Ethernet + WLAN (via USB dongle) |
Memory | 64MB SDRAM, 128MB Flash |
Peeler Function | Yes (built-in) |
Auto Cutter | Optional |
Power Supply | External, 100–240V AC, 50/60Hz (EnergyStar Certified) |
Emulation | SLCS, BPL-Z, BPL-E |
Barcode Support | 1D & 2D including QR Code, PDF417, Data Matrix, UPC, EAN |
SDK & Driver Support | Windows, Linux, Mac, Android (OPOS, CUPS, Virtual COM) |
Fonts & Graphics | User-defined fonts, graphics, Unicode support |
Software | BIXOLON Label Artist, BarTender compatible |
Dimensions (WxDxH) | 120mm x 230mm x 170mm |
Weight | 1.36 kg |
Operating Temp | 0°C to 40°C (10–80% RH) |
Storage Temp | -20°C to 60°C (10–90% RH) |
Warranty | 24 Months Manufacturer Warranty |
