Description

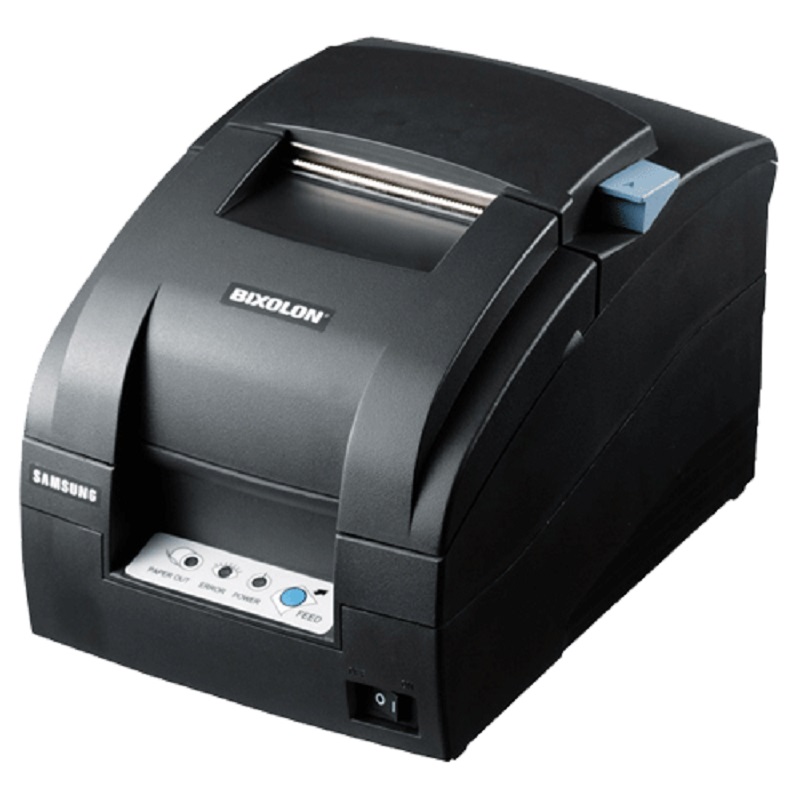

The BIXOLON SRP-275III is a high-speed, 3-inch impact dot matrix printer engineered for reliable receipt and order printing in busy retail, hospitality, and banking environments. Delivering fast bi-directional printing at up to 5.1 lines per second, this robust printer supports two-colour output for enhanced clarity, ideal for kitchens or service counters. Designed for versatility, the SRP-275III features drop-in paper loading, built-in SMPS, and triple interface connectivity (USB, Serial, and Ethernet). It is also available in a tear-bar (275IIIA) or auto-cutter (275IIIC) model. Compatible with ESC/POS commands and a wide range of OS drivers, it’s the perfect choice for seamless integration into new or legacy systems.
Product Features
-
Fast dot matrix printing at 5.1 lps (40 columns)
-
Drop-in paper loading and anti-jam design
-
Built-in USB, RS232 Serial, and Ethernet interfaces (USB & Parallel version also available)
-
Two-colour printing (black/red) for order clarity
-
ESC/POS compatible with Storemaker firmware/logo updates
-
Optional auto-cutter (275IIIC) or tear-bar (275IIIA) models
-
Built-in buzzer alarm ideal for kitchen use
-
Wall-mountable or desktop design
-
Internal power supply with Energy Star certification
Product Specifications
Printing Method | 9-pin Serial Dot Matrix |
Print Speed | Up to 5.1 lps (at 40 columns) |
Print Resolution | 80 dpi (H) / 144 dpi (V) |
Paper Width | 76.5 mm ± 0.5 mm |
Print Width | Up to 63.5 mm |
Characters Per Line | Font A: 35, Font B: 40, KOR: 20, CHN: 22 |
Paper Roll Diameter | Max Ø 83 mm |
Paper Type | Plain bond or 2-ply paper |
Interfaces | USB, Serial, Ethernet (or USB & Parallel) |
Buffer Memory | 64KB Receive, 256KB NV Memory |
Drawer Port | 1 (supports 2 drawers with special cable) |
Cutter Life | 1.8 million cuts (275IIIC only) |
Dimensions (W x D x H) | 160 x 239 x 157 mm |
Weight | 2.4 kg (Tear Bar), 2.5 kg (Auto Cutter) |
Operating Temperature | 0 to 40°C |
Storage Conditions | -20 to 60°C, 10–90% RH |
Reliability | 18 million characters |
Power Supply | Internal (100–240V AC, 50/60Hz) |
Certification | Energy Star |
Features
- Auto Cutter
- Linux
- Windows
- Serial dot matrix
- USB
- Serial / RS232
- Parallel
- Ethernet
- Dark Grey
- 129mm/sec
- 2.5inch
