Bixolon STP103III USB/RS232 Black Thermal Receipt Printer

Manual Tear Bar, 60mm, Windows, Desktop, Direct Thermal , USB, Serial / RS232, Parallel, 203 dpi , Black, 80mm/sec, 2 inch, BIXOLON
$295.00
For Special & Volume Pricing - Call +61 2 9090 4610
STP103IIIURG
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

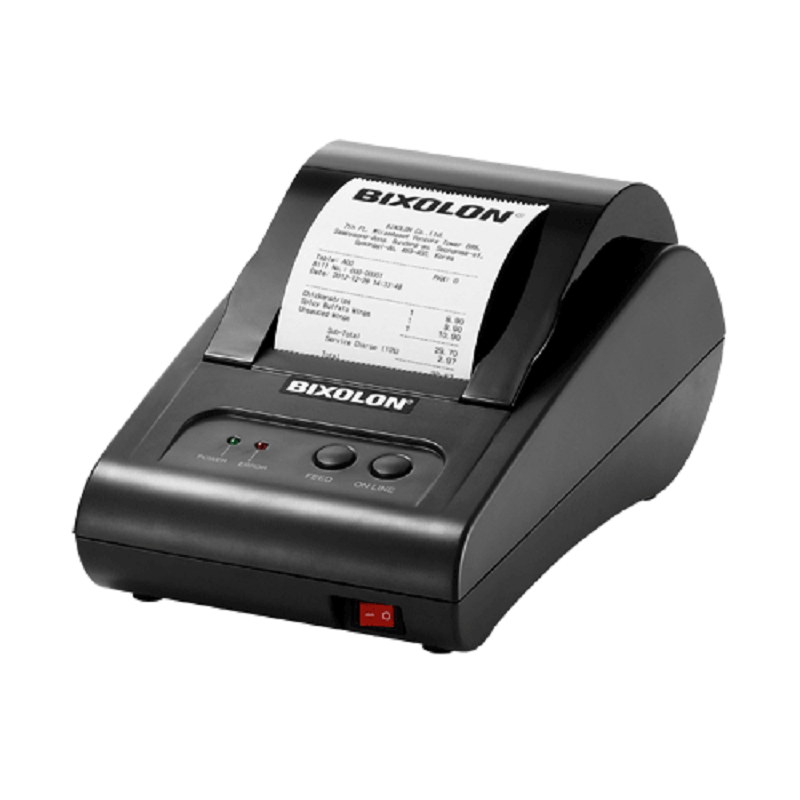

The BIXOLON STP-103III is a lightweight and space-saving 2-inch thermal POS printer, purpose-built for environments where footprint and cost efficiency matter. Perfect for retail, kiosk, ticketing, and hospitality, this compact unit offers enhanced performance over its predecessor (STP-103II), including faster print speeds of up to 80mm/sec and 65% reduced standby power consumption.

The STP-103III offers dual-interface flexibility, with models supporting USB + Serial or USB + Parallel connections. A Serial-to-Parallel cable is also included for seamless integration. The printer supports a standard 58mm media width, and easy drop-in paper loading ensures minimal disruption in high-traffic environments.

Despite its small size, the STP-103III is built to last, offering 50km thermal head life, 30 million lines MCBF, and compatibility with a wide range of POS systems through BXL/POS (ESC/POS) emulation.

This economical model also comes with a variety of software drivers and SDKs, including Windows, Android, Linux, and macOS—making it a reliable, flexible solution for small business owners and system integrators alike.

Product Features

  • Compact 2-inch thermal receipt printer

  • Fast print speed of 80mm/sec

  • Dual interface models: USB + Serial / USB + Parallel

  • Includes Serial-to-Parallel cable for flexibility

  • Energy-efficient with 65% lower standby consumption than previous models

  • Supports 57.5mm thermal receipt paper

  • Drop-in paper loading with jam-prevention design

  • Thermal head life: 50km / MCBF: 30 million lines

  • Lightweight (only 450g)

  • Drivers and SDKs for Windows, Android, macOS, Linux

  • Supports PDF417 and QR Code barcode printing

Product Specifications

Model

BIXOLON STP-103III

Print Method

Direct Thermal

Print Speed

Up to 80 mm/sec

Resolution

203 dpi

Print Width

Up to 48 mm

Media Width

57.5 mm

Media Roll Diameter

Up to 60 mm

Media Thickness

0.062 – 0.075 mm

Interfaces

USB + Serial / USB + Parallel (Serial-to-Parallel cable included)

Emulation

BXL / POS (ESC/POS Compatible)

Sensors

Paper End, Near End, Cover Open

Thermal Head Life

50 km

MCBF

30 million lines

Dimensions (WxDxH)

116 x 180 x 90 mm

Weight

450g

Drawer Ports

2 (via y-type adapter)

Operating Temp

0 – 45°C

Storage Temp

-20 – 60°C

Humidity Range

Operating: 10–80% RH / Storage: 10–90% RH

Memory

64 Mbit SDRAM, 16 Mbit FlashROM

Buffer

64 KB receive / 12 KB user-defined

NV Image Memory

256 KB

Drivers

Windows, OPOS, JPOS, Linux CUPS, macOS

SDKs

Android SDK

Supported Barcodes

1D: UPC, EAN, ITF, Code128, Code39, etc.
2D: QR Code, PDF417

Accessories

Optional buzzer and melody speaker



Features

Cutter Option:
  • Manual Tear Bar
Max Roll Diameter:
60mm
OS Compatability:
  • Windows
Receipt Printers Type:
  • Desktop
Print Method:
  • Direct Thermal
Interface:
  • USB
  • Serial / RS232
  • Parallel
Color:
  • Black
Print Speed :
  • 80mm/sec
Print Width:
  • 2 inch
Manufacturer
:
BIXOLON

Attachments

Brochure (stp103iii_brochure.pdf, 171 Kb) [Download]

Brochure (stp103iii_user_english_rev_1_01.pdf, 813 Kb) [Download]
