Description

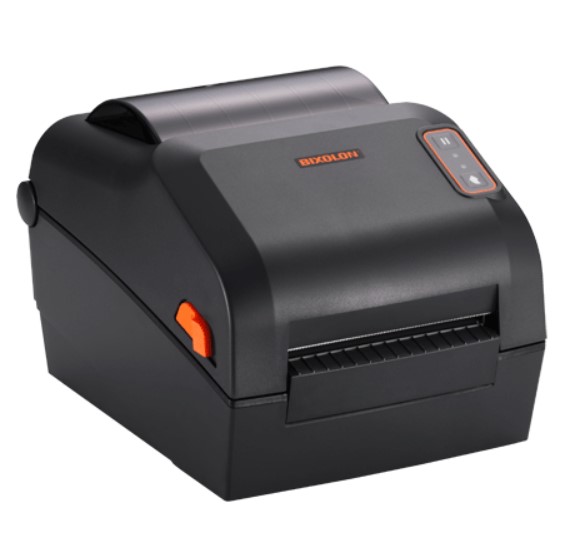

The Bixolon XD5-40d is a powerful, high-speed 4 inch direct thermal desktop label printer built to meet the demands of today’s fast-paced businesses. Engineered for performance and versatility, it supports 203 DPI resolution, print speeds 7 inches per second, and interfaces including USB, USB Host, RS232, and Ethernet, with optional Bluetooth and WLAN connectivity.
Whether for logistics, retail, warehousing, or manufacturing, the XD5-40d combines a compact clamshell design, robust connectivity, and advanced printer management tools like XPM & XCM. With adjustable media guides and optional field-upgradable features like peeler and auto cutter, this printer delivers reliable and customizable label printing.
Product Features
- Fast print speed of up to 7 IPS (178 mm/s) for high-volume tasks
- Direct Thermal printing with 203 DPI resolution
- Standard interfaces: USB, USB Host, RS232, Ethernet
- Optional connectivity: Bluetooth (V4.2), Dual-Band Wi-Fi (2.4GHz/5GHz)
- Compact clamshell design with intuitive control panel
- Supports media widths from 0.5 inch to 4 inch
- Max roll diameter: 127 mm
- SNMP-enabled WLAN and XPM/XCM for remote printer management
- Supports major 1D & 2D barcodes including QR Code, Data Matrix, PDF417
- Windows, Android, iOS, Linux, and Chrome SDKs for integration
- EnergyStar certified with wide operating temperature range
Product Specifications
Specification | Details |
Print Method | Direct Thermal |
Print Resolution | 203 DPI (XD5-40d) |
Max Print Width | 4 inch |
Max Print Speed | 7 IPS (178 mm/s) |
Media Width | 0.5 inch to 4 inch |
Media Thickness | 0.06 mm to 0.20 mm |
Roll Diameter | 127 mm |
Sensors | Transmissive, Reflective (adjustable), Head open |
Memory | 64MB SDRAM / 128MB Flash (standard); Upgradable to 256MB each |
Interfaces (Standard) | USB, USB Host, RS232, Ethernet |
Optional Interfaces | Dual-Band WLAN, Bluetooth V4.2 (MFi Certified) |
Barcode Support | Full 1D & 2D barcode support including QR, PDF417 |
Fonts & Emulations | SLCS, BPL-Z, BPL-E, Unicode, Bitmap & Scalable Fonts |
Drivers & SDKs | Windows, macOS, Linux, Android, iOS, Chrome, Xamarin |
Dimensions (WxDxH) | 194mm × 248mm × 169mm |
Weight | 1.89 kg |
Power Supply | 100–240V AC, 50/60Hz External Power Adapter |
Operating Temperature | 0°C to 40°C |
Humidity | 10% to 80% RH (non-condensing) |
Environmental Compliance | EnergyStar Certified |
Warranty | 2 Years |
Features
Core Size:
1 inch
OS Compatability:
- Android
- iOS
- Windows
Print Size:
- 4"
Warranty:
2 Years
Print Method:
- Direct Thermal
Interface:
- USB Host
- USB
- Ethernet
- Serial
Color:
- Black
Type:
- Monochrome
Print Speed :
- 8
Printer Type / Suitable For:
- Desktop
Print Width:
- 4 inch
