BIXOLON XD5-40t 4" T T 203dpi USB RS Eth IF Label Printer

1 inch, Linux, Windows, 4", 1 Year, Thermal Transfer, USB Host, USB, 203dpi, Black, Monochrome, 6, Desktop, 4 inch, BIXOLON
$609.00
For Special & Volume Pricing - Call +61 2 9090 4610
XD5t-40URE
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

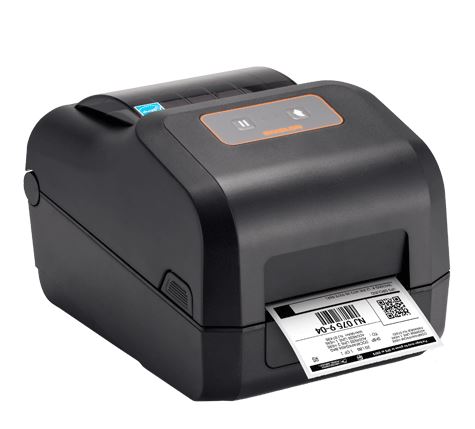

The BIXOLON XD5-40t is a versatile 4-inch thermal transfer label printer, designed to deliver premium performance and reliability in desktop environments. With a print resolution of 203 dpi and a print speed of up to 6 IPS, it is ideal for warehousing, logistics, manufacturing, retail, and healthcare labelling applications.

This model supports USB, RS232, and Ethernet interfaces, offering flexible connectivity for various setups. The printer supports both 0.5 inch (74m) and 1 inch (300m) core ribbons, with an adjustable media guide and a user-friendly clamshell design for easy loading and maintenance.

Optional upgrades include dual-band WLAN (2.4GHz / 5GHz), Bluetooth v4.1 (Classic + LE), LCD Display, Auto Cutter, and Peeler. Its extensive memory (256MB SDRAM, 256MB Flash) allows for faster processing and label rendering.

The XD5-40t also supports web-based printer management through BIXOLON's XPM & XCM utilities, and integrates easily with BIXOLON Label Artist and Seagull BarTender label design software.


Product Features

  • Fast & Reliable Printing: Thermal Transfer printing up to 6 IPS at 203 dpi
  • Flexible Connectivity: Standard USB, USB Host, RS232 Serial & Ethernet ports
  • Memory Power: 256MB SDRAM, 256MB Flash for faster performance
  • Ribbon Compatibility: Supports both 74m & 300m ribbons (0.5 inch & 1inch core)
  • Compact & User-Friendly: Clamshell design with intuitive buttons, optional LCD
  • Modular Upgrades: Optional Peeler, Auto Cutter, WLAN (5GHz/2.4GHz), Bluetooth v4.1
  • Label Design Software: Compatible with Label Artist & BarTender
  • Web Management Tools: Supports XPM (printer management) & XCM (connectivity app)
  • Copy Settings via USB: Twin Function allows easy cloning of printer settings
  • SNMP Enabled: Supports advanced network management protocols


Product Specifications

Specification

Details

Model

BIXOLON XD5-40t

Print Method

Thermal Transfer (also supports Direct Thermal)

Print Resolution

203 dpi

Max Print Speed

6 IPS

Print Width

4 inch

Interfaces

USB 2.0, USB Host, RS232 Serial, Ethernet

Optional Interfaces

WLAN (5GHz/2.4GHz), Bluetooth v4.1

Ribbon Support

0.5 inch (74m) & 1 inch (300m) ribbon compatible

Media Handling

Adjustable media guide, optional cutter/peeler

Memory

256MB SDRAM / 256MB Flash

Software Compatibility

Label Artist, Seagull BarTender, XPM, XCM

Management Tools

SNMP, Web-based printer config (XPM/XCM)

Twin Function

Clone printer settings & data via USB

Display (Optional)

LCD Display

Emulation

BPL-Z (ZPLII), BPL-E (EPLII), BXL

Warranty

1 year

Features

Core Size:
1 inch
OS Compatability:
  • Linux
  • Windows
Print Size:
  • 4"
Warranty:
1 Year
Print Method:
  • Thermal Transfer
Interface:
  • USB Host
  • USB
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 6
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
BIXOLON

Attachments

Brochure (BR_XD5-40t.pdf, 1,021 Kb) [Download]
