BIXOLON XD5-40TOWK 4" T/T USB+Wifi LABEL PRINTER

1 inch, Windows, macOS, Android, iOS, Linux, 4", 2 Years, Thermal Transfer, USB, 203dpi, Black, Monochrome, 6, Desktop, 4 inch, BIXOLON
$869.00
For Special & Volume Pricing - Call +61 2 9090 4610
XD5-40TOEWK/AUS
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

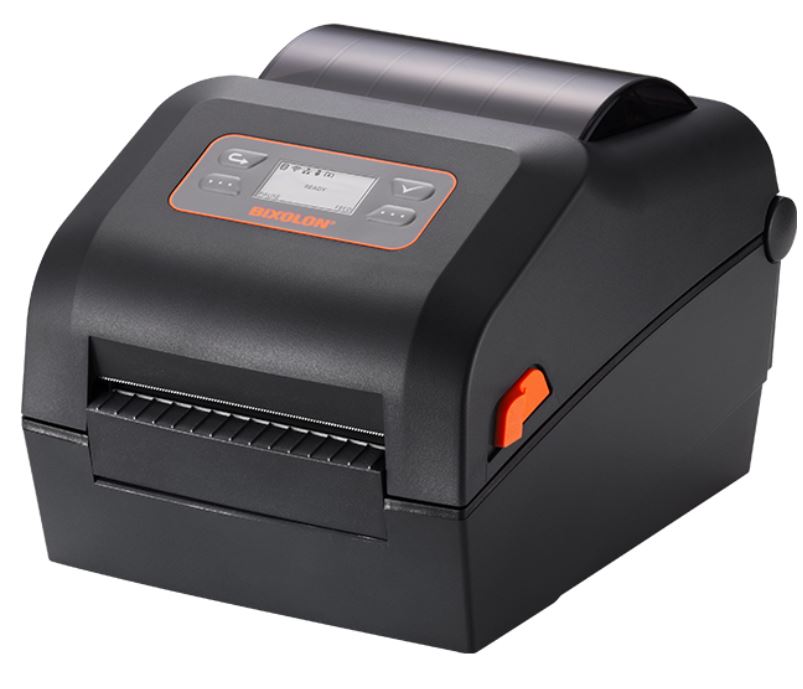

The BIXOLON XD5-40TOWK is a powerful, versatile 4-inch label printer offering both Thermal Transfer and Direct Thermal printing modes. Built for performance and connectivity, this robust desktop printer supports USB, Serial, Ethernet, and dual-band Wi-Fi for seamless integration into your business environment.

Designed for industries such as retail, logistics, manufacturing, and healthcare, the XD5-40TOWK prints high-quality labels at speeds of up to 6 inches per second. Its compact clamshell design, easy paper loading, and adjustable media guide simplify day-to-day operations. With support for multiple media types, an optional LCD display, and field-installable peeler and cutter, this printer adapts effortlessly to your evolving labelling needs.


Product Features

  • Dual printing technology: Thermal Transfer & Direct Thermal
  • High-speed printing 6 IPS (152 mm/sec) at 203 DPI
  • Multi-interface connectivity: USB, Serial, Ethernet, and dual-band Wi-Fi
  • Compact, clamshell design for space-saving and easy access
  • Adjustable media guide and drop-in media loading
  • Compatible with 74m and 300m ribbon types
  • Supports a variety of media types including gap, black mark, and continuous
  • Optional LCD display for enhanced user interaction
  • Field-installable peeler and auto cutter available
  • BIXOLON’s Label Artist and BarTender software compatibility


Product Specifications

Specification

Details

Print Method

Thermal Transfer & Direct Thermal

Resolution

203 DPI

Max Print Speed

6 IPS (152 mm/sec)

Max Print Width

4 inch

Print Length

Up to 1,000 mm

Media Types

Gap, Black Mark, Notch, Continuous, Fan-Fold

Media Width

4 inch

Ribbon Type

Wax, Wax/Resin, Resin (Outside wound)

Ribbon Length

300 m

Interfaces

USB, USB Host, Serial, Ethernet, Wi-Fi

Dimensions (WxDxH)

210mm x 284mm x 188mm

Weight

2.48 kg

Memory

64 MB SDRAM, 128 MB Flash

Emulations

SLCS, BPL-Z, BPL-E

OS Compatibility

Windows, iOS, Android, Linux, MacOS

Warranty

2 Years



Features

Core Size:
1 inch
OS Compatability:
  • Android
  • iOS
  • Linux
  • macOS
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
Interface:
  • USB
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 6
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
BIXOLON

Attachments

Brochure (BR_XD5-40Series_EN_JUN20_V1.pdf, 1,311 Kb) [Download]
