Description

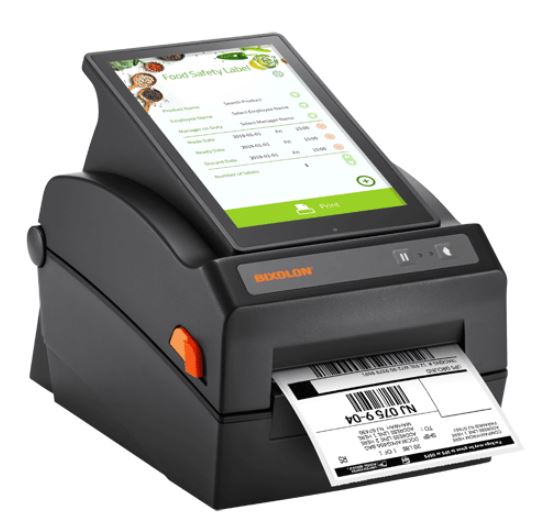

The BIXOLON XQ-840 is a next-generation 4-inch direct thermal label printer integrated with an 8-inch Android touchscreen tablet, delivering all-in-one label printing convenience for retail, hospitality, food service, and logistics environments. Combining performance, smart device functionality, and user-friendly features, the XQ-840 simplifies labelling operations while boosting productivity.
With a 203DPI resolution and a maximum print speed of 6 IPS (152mm/sec), the XQ-840 ensures fast and clear label output. Its integrated Android 7.0 tablet features a vibrant multi-touch 8” IPS display and a 5MP auto-focus camera for quick barcode scanning. Dual USB host ports, Ethernet, Wi-Fi (802.11ac) and Bluetooth v4.2 provide versatile connectivity for seamless integration into any workspace.
Equipped with adjustable media holders, optional peeler and auto cutter, and anti-theft and water/dust-resistant design, this robust label printer is ideal for mobile POS, food safety labelling, and self-service kiosks. The XQ-840 supports popular emulations such as ZPL (BPL-Z™), EPL (BPL-E™), and ESC/POS, ensuring compatibility with various applications and existing systems.
Whether you're printing price tags, shelf-edge labels, or compliance stickers, the BIXOLON XQ-840 is a compact, intelligent solution to streamline your operations.
Product Features
- Integrated 8” Android Tablet (Android 7.0) – Multi-touch screen with 5MP camera for scanning and interface
- Fast Printing Speeds – Up to 6 IPS(152mm/sec) at 203DPI resolution
- Wide Media Support – Prints labels up to 4 inch (108mm) wide with max roll Ø130mm
- Robust Connectivity – WLAN (dual-band), Bluetooth 4.2, USB, and Ethernet
- Label Compatibility – Supports die-cut, gap, black mark, and continuous media
- Emulation Support – SLCS™, BPL-Z™ (ZPL II), BPL-E™ (EPL), BXL/POS (ESC/POS)
- Optional Auto Cutter and Peeler – Field-installable for added media handling options
- Anti-Theft Design – Engineered for self-service and unattended use
- App & SDK Ready – Supports Label Artist™ Mobile, Android SDKs, and more
- Energy Star Certified – External power adaptor 100–240V, 50/60Hz
Product Specifications
Specification | Details |
Model | XQ-840 |
Print Method | Direct Thermal |
Print Resolution | 203 DPI (8 dots/mm) |
Max Print Speed | 6 IPS (152 mm/sec) |
Max Print Width | 4 inch (108 mm) |
Media Width | Up to 4 inch |
Media Thickness | 0.06 mm to 0.20 mm |
Roll Diameter | Max Ø130 mm |
Sensors | Transmissive, Reflective (adjustable), Head Open |
Tablet OS | Android 7.0 |
Tablet Display | 8" IPS TFT LCD (800x1280) |
Tablet Camera | 5MP Auto-Focus |
Tablet Memory | 1GB RAM, 8GB Flash |
Printer Memory | 64MB SDRAM, 128MB Flash |
Interfaces | 2 USB Host, Ethernet, WLAN (2.4GHz/5GHz), Bluetooth v4.2 |
Emulations | SLCS™, BPL-Z™ (ZPL II), BPL-E™ (EPL), BXL/POS |
Optional Add-ons | Auto Cutter, Peeler |
Driver Support | Windows, Linux CUPS, Mac, Android SDK |
Dimensions (WxDxH) | 194mm x 273mm x 212mm |
Weight | 2.2 kg |
Operating Temperature | 0°C to 40°C |
Humidity | 10% to 80% (non-condensing) |
Power Supply | External adaptor, 100–240V, 50/60Hz (Energy Star Certified) |
Warranty | 2 Years |
