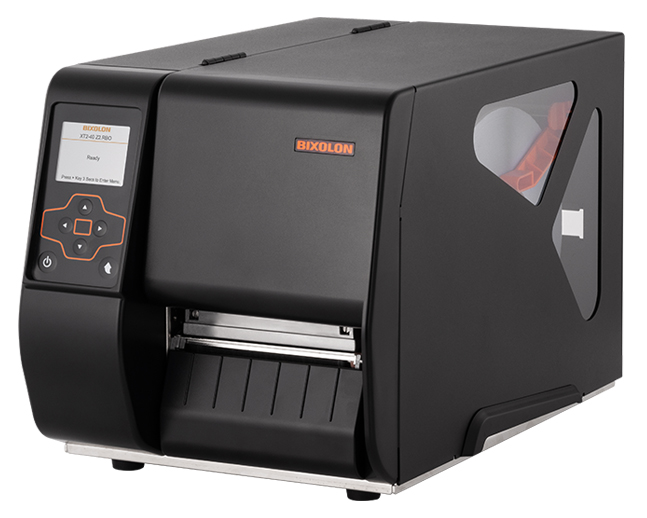

BIXOLON XT2-40 4" INDUSTRIAL T/T USB/SER/ETH 203DPI

Serial, USB, 1 inch, Auto Cutter, Cutter, Tearbar, LCD, Windows, iOS, Android, 4", New, 1 Year, Thermal Transfer, USB, Ethernet, Serial, 203dpi, Monochrome, 6, Industrial, 4 inch, BIXOLON
$1,500.00
For Special & Volume Pricing - Call +61 489 087 085
XT2-40
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

The BIXOLON XT2-40 4" Industrial Label Printer is a compact yet powerful thermal transfer and direct thermal printing solution designed for businesses requiring high-volume, durable labelling in constrained work environments.

With a 203 DPI resolution, print speeds of up to 6 ips (152 mm/s), and support for multiple media types including gap, black mark, notch, continuous, and fan-fold, the XT2-40 delivers unmatched flexibility. Its rugged industrial design is complemented by a user-friendly 2.4-inch colour TFT LCD display, ensuring intuitive operation and simplified maintenance.

Equipped with USB, Serial, and Ethernet interfaces, the XT2-40 integrates seamlessly into any workflow. Supporting wax, wax/resin, and resin ribbons up to 450m, it’s built to handle long print runs at a low cost per label. Ideal for logistics, warehousing, retail, and manufacturing, the XT2-40 is your dependable choice for efficient and cost-effective labelling.


Product Features

  • Heavy-duty 4" industrial label printer in a compact footprint
  • Thermal Transfer & Direct Thermal printing for versatile applications
  • 203 DPI resolution for sharp and reliable text, graphics, and barcodes
  • Print speed up to 6 ips (152 mm/s) for fast, high-volume output
  • Supports a wide range of media: gap, black mark, notch, continuous, fan-fold
  • Large ribbon capacity up to 450m for uninterrupted operation
  • Multiple interfaces: USB 2.0, USB Host, Serial, Ethernet (10/100 Mbps)
  • 2.4" colour TFT LCD display for easy navigation and control
  • Advanced sensors: transmissive, reflective, ribbon-end, and head open
  • Supplied with Windows driver, network setup utility, and Bartender Ultralite.


Product Specifications

Specification

Details

Model

BIXOLON XT2-40

Print Method

Thermal Transfer

Print Resolution

203 DPI

Max Print Speed

6 IPS (152 mm/s)

Max Print Width

108 mm (4.25 inch)

Print Length

4 mm – 3999 mm

Sensors

Transmissive, Reflective, Ribbon-End, Head Open

Media Types

Gap, Black Mark, Notch, Continuous, Fan-Fold

Media Width

25.4 mm – 118 mm

Media Roll Diameter

Up to 203 mm

Media Thickness

0.076 – 0.25 mm

Supply Method

Easy Paper Loading

Inner Core Size

25.4 – 76.2 mm

Ribbon Type

Wax, Wax/Resin, Resin (inside & outside wound)

Ribbon Width

30 – 110 mm

Ribbon Length

450 m

Ribbon Core Inner Dia.

25.4 mm

Display

2.4-inch Colour TFT LCD

Memory

32 MB SDRAM, 128 MB Flash

Interface

USB 2.0, USB Host, Serial, Ethernet (10/100 Mbps)

Power Supply

Internal 100–240V AC, 50–60Hz

Dimensions (W x D x H)

259mm x 429mm x 277mm

Weight

10.9 kg

Operating Temperature

5 – 40°C

Storage Temperature

-20 – 60°C

Operating Humidity

20 – 85% RH

Storage Humidity

10 – 90% RH

Software Support

Windows Drivers, Bartender Ultralite, Android/iOS/Windows SDK

Standard Accessories

USB Cable

Optional Accessories

Peeler, Auto-Cutter

Warranty

12 Months

Features

Cable:
  • Serial
  • USB
Core Size:
1 inch
Cutter Option:
  • Auto Cutter
  • Cutter
  • Tearbar
Display:
  • LCD
OS Compatability:
  • Android
  • iOS
  • Windows
Print Size:
  • 4"
Product Type:
New
Warranty:
1 Year
Print Method:
  • Thermal Transfer
Interface:
  • USB
  • Ethernet
  • Serial
Type:
  • Monochrome
Print Speed :
  • 6
Printer Type / Suitable For:
  • Industrial
Print Width:
  • 4 inch
Manufacturer
:
BIXOLON

Attachments

Brochure (BR_XT2-40_EN_JUN20_V1.pdf, 897 Kb) [Download]
