Description

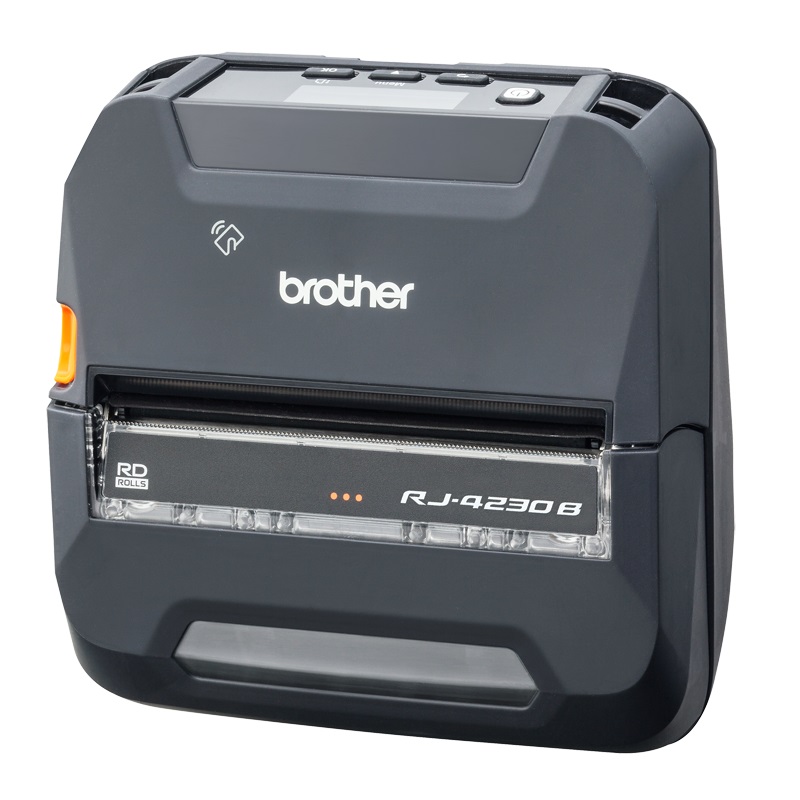

The Brother RJ-4230B Bundle Pack is a rugged, high-speed mobile printing solution built for professionals on the move. This comprehensive kit includes the Brother RJ-4230B 4 inch Mobile Printer, a rechargeable Li-ion smart battery, and an AC adapter, giving you everything needed for fast, flexible, and reliable printing in the field.
Whether you're printing labels, receipts, quotes, or invoices, the RJ-4230B delivers crisp 203DPI prints at 5 IPS (127mm/sec). With Bluetooth 4.2, USB, and NFC support, you’ll benefit from effortless connectivity across mobile platforms including Windows, Android, and iOS.
Rugged yet compact, the RJ-4230B is IP54-certified and drop-tested up to 2.1 metres, making it ideal for use in logistics, field service, warehousing, and retail. The backlit LCD, ZPL II/CPCL emulation, and support for Brother’s Mobile Deploy and SDKs ensure seamless integration into your existing workflows across Australia.
Product Features
- Complete Mobile Kit – Includes printer, battery, and AC adapter for instant out-of-the-box use.
- Ultra-Rugged Design – IP54 rating and 2.1m drop protection for field-ready durability.
- Fast Print Speeds – 5 IPS (127mm/sec) for rapid output of receipts and labels.
- 203DPI Print Resolution – Crisp, clear print quality for text, barcodes, and graphics.
- Bluetooth 4.2 + USB + NFC – Versatile wireless and wired connectivity.
- Smart Battery Support – Prints up to 10,000 labels per charge with real-time battery monitoring.
- Wide Media Compatibility – Handles labels, receipts, linerless media, and tags from 45–113mm wide (Max : 4 inch).
- Seamless Integration – Compatible with Windows, Android, and iOS; supports ZPL II, CPCL, ESC/P.
- LCD with Backlight – Easy menu navigation in all lighting conditions.
- SDK & Mobile Deploy App – Remote configuration and software development tools available.
Product Specifications
Specification | Details |
Model | Brother RJ-4230B Bundle Pack |
Print Technology | Direct Thermal |
Print Resolution | 203 DPI |
Print Speed | 5 IPS (127mm/sec) |
Max Print Width | 4 inch |
Max Print Length | 3000 mm |
Media Width | 4 inch |
Media Types | Labels, Receipts, Tags, Linerless |
Roll Diameter | 2 inch (Max: 58 mm) |
Display | Monochrome LCD with Backlight |
Interfaces | USB 2.0 (Mini-B), Bluetooth 4.2, NFC |
Bluetooth Profiles | SPP, OPP, HCRP, iAP; MFi Certified |
Emulations Supported | P-touch Template, ZPL II, CPCL, ESC/P, Raster |
RAM / Flash | 256MB / 64MB |
Drop Protection | Up to 2.1m |
Sealing | IP54 |
Battery Life | Approx. 10,000 labels per charge (Smart Li-ion) |
Operating Temp. | -20°C to +55°C |
Storage Temp. | -20°C to 60°C |
Dimensions | 153mm x 68mm x 159mm |
Weight | 850g (with battery) |
Included in Bundle | RJ-4230B Printer, Smart Battery, AC Adapter |
Warranty | 2 Years Return to Base |
Features
- Tearbar
- Android
- iOS
- Windows
- 4"
- Direct Thermal
- USB
- Bluetooth
- Black
- Monochrome
- 5
- Mobile
- 4 inch
