Description

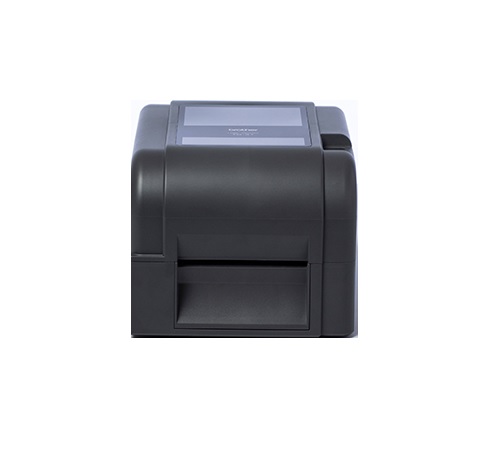

The Brother TD-4520TN is a powerful 4 inch thermal transfer label printer designed to meet the high demands of Australian warehouses, logistics providers, healthcare environments, and retail operations. With sharp 300 DPI resolution, this printer ensures premium quality labels, barcodes, and receipts across various media types. Its robust connectivity via USB, Serial, and Ethernet makes it ideal for seamless integration into existing systems, while support for multiple printer command languages, including ZPLII and EPL, offers unmatched compatibility.
Engineered for reliability, the TD-4520TN uses thermal transfer technology, minimizing moving parts and reducing the likelihood of mechanical failure. This model supports a range of ribbon types and media formats, including continuous, die-cut, and fanfold labels. It’s a perfect solution for businesses that require durable, high-quality labels with minimal downtime.
Product Features
- 300 DPI resolution for crisp, detailed barcode and label printing
- Supports thermal transfer printing for durable, long-lasting output
- Maximum print speed 5 IPS (127 mm/sec)
- Wide media support 4 inch (112 mm) label width
- Multiple connectivity options: USB 2.0, RS-232C Serial, Ethernet (10/100BASE-TX)
- Compatible with ZPLII, EPL, DPL and FBPL-EZD command languages
- Windows, macOS, and Linux driver support
- BarTender Ultra Lite label design software included
- Ideal for manufacturing, logistics, healthcare, and warehousing applications
- Standard 2-year return-to-base warranty on hardware
Product Specifications
Specification | Details |
Print Technology | Thermal Transfer |
Print Resolution | 300 DPI |
Max Print Speed | 5 IPS (127 mm/sec) |
Max Print Width | 4 inch (105.7 mm) |
Media Width | 4 inch |
Media Types | Continuous, Die-cut, Black mark, Fanfold |
Ribbon Types | Wax, Resin, Wax/Resin (Outside wound) |
Connectivity | USB 2.0, RS232C Serial, 10/100BASE-TX Ethernet |
OS Compatibility | Windows, macOS, Linux |
Printer Emulations | ZPLII, EPL, DPL, FBPL-EZD |
Dimensions (WxHxD) | 204mm x 177mm x 280mm |
Weight | 2.5 kg |
RAM / Flash | 64MB / 128MB |
Display Type | 1 LED (3 colours), 1 Button (Feed) |
Warranty | 2 Years Hardware, 6 Months Print Head |
