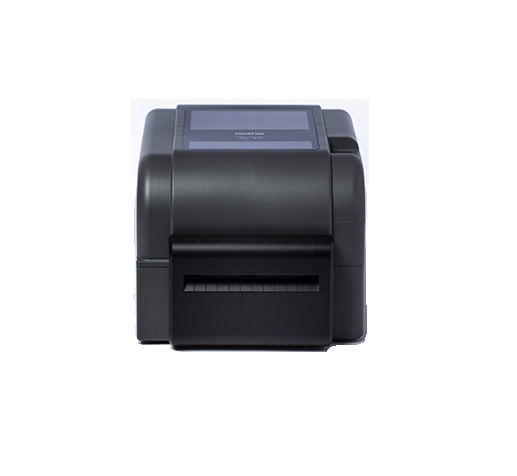

Brother TD-4520TNC 300DPI TT ETH CUT Label Printer

Ethernet, 1 inch, Cutter, macOS, Windows, Linux, 4", 1 Year, Thermal Transfer, WLAN, USB, Serial / RS232, 300 dpi, Black, Monochrome, 5, Desktop, 4 inch, Brother
$889.00
For Special & Volume Pricing - Call +61 2 9090 4610
PRBRTD4520TNC
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Designed for performance-driven businesses, the Brother TD-4520TNC is a reliable 4-inch desktop thermal transfer label printer that ensures exceptional print quality, seamless integration, and rugged reliability. With a 300DPI resolution and fast 5 IPS (127mm/sec) print speed, this industrial-grade label printer is ideal for asset labelling, barcode generation, shipping, and inventory management. Pre-installed with a precision auto-cutter and supporting popular command systems like ZPLII, this printer provides optimal flexibility for your labelling operations. Experience hassle-free connectivity via USB, RS232C, and Ethernet.

Whether you're working in retail, healthcare, logistics, or warehousing, the TD-4520TNC's versatile media compatibility and robust performance make it a perfect addition to your labelling workflow.


Product Features

  • High-resolution 300 DPI thermal transfer printing
  • Built-in auto-cutter for precise label separation
  • Fast print speed 5 IPS (127mm/sec)
  • Ethernet, USB 2.0, and RS232C serial connectivity
  • Supports ZPLII emulation for easy system integration
  • Compatible with continuous, die-cut, black mark, fan-fold, and notch media
  • Prints up to 11,430mm (450 inches) in length
  • 128MB Flash & 64MB SDRAM memory for efficient processing
  • Seamless software integration with BarTender Ultra Lite Edition included
  • 1-year return-to-base warranty on hardware


Product Specifications

Specification

Details

Print Method

Thermal Transfer

Print Resolution

300 DPI

Max Print Speed

5 IPS (127 mm/sec)

Max Print Width

4 inch (105.7 mm)

Print Length

Min: 5 mm; Max: 11,430 mm

Interfaces

USB 2.0 (Type B), RS232C, 10/100 BASE-TX Ethernet, USB Host

Media Types

Continuous, Die-cut, Black Mark, Fan-fold, Notch

Media Width

4 inch

Ribbon Types

Premium Wax, Resin, Wax/Resin

Ribbon Length

300 m

Memory

128MB Flash, 64MB SDRAM

Dimensions (W x H x D)

204mm x 177mm x 280mm

Weight

2.87 kg (with cutter)

Warranty

1 Years Printer / 6 Months Print Head

Features

Cable:
  • Ethernet
Core Size:
1 inch
Cutter Option:
  • Cutter
OS Compatability:
  • Linux
  • macOS
  • Windows
Print Size:
  • 4"
Warranty:
1 Year
Print Method:
  • Thermal Transfer
Interface:
  • WLAN
  • USB
  • Serial / RS232
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 5
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
Brother

Attachments

Brochure (Brother_TD-4520T_Datasheet.pdf, 1,904 Kb) [Download]
