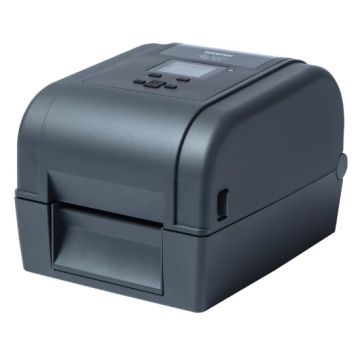

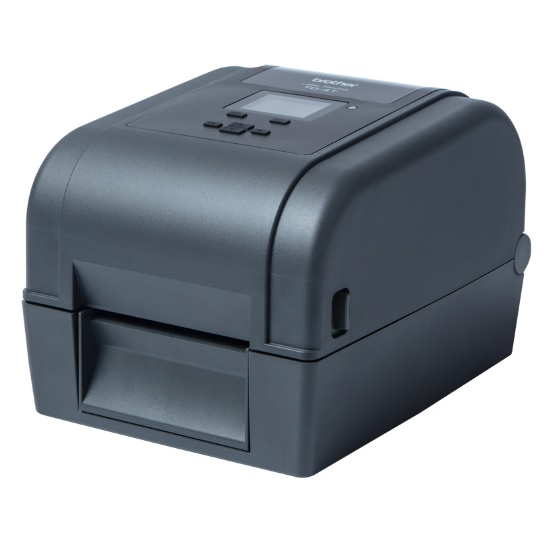

BROTHER TD-4750 300DPI TT MULTI-I/F PRINTER

1.5 inch, Tearbar, Windows, macOS, Linux, 4", 2 Years, Thermal Transfer, Direct Thermal , WLAN, USB Host, USB, Serial / RS232, Bluetooth, WIFI, 300 dpi, Black, Monochrome, 6, Desktop, 4 inch, Brother
$1,215.00
For Special & Volume Pricing - Call +61 2 9090 4610
TD-4750TNWB
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Labelling performance with the Brother TD-4750TNWB – a 300DPI, 4-inch desktop thermal label printer designed for precision, reliability, and effortless integration. Whether you're printing shipping labels, barcode tags, shelf signage, or wristbands, this printer offers seamless adaptability with thermal transfer and direct thermal capabilities.

Packed with advanced connectivity including USB, Ethernet, Wi-Fi (dual-band), Bluetooth 4.2, and Serial, the TD-4750TNWB integrates easily into your existing systems with support for ZPL II, FBPL-EZD, and BarTender software. With a print speed of up to 6 ips, adjustable media sensors, and support for multiple ribbon types, this printer meets the demands of high-volume labelling environments in logistics, retail, warehousing, and healthcare.

Designed with fewer moving parts for enhanced durability and backed by Brother’s trusted support, the TD-4750TNWB delivers dependable, high-quality printing for Australian businesses.


Product Features

  • 300DPI High-Resolution Printing – Perfect for sharp, scannable barcodes and text.
  • Versatile Media Compatibility – Supports die-cut, fanfold, black mark, continuous, notched, and wristband labels.
  • Dual Technology – Supports both thermal transfer and direct thermal printing.
  • Fast Print Speeds – 6 IPS (152.4 mm/sec) for high-efficiency labelling.
  • Comprehensive Connectivity – USB, Serial, Ethernet, Bluetooth 4.2, and dual-band Wi-Fi.
  • Easy Integration – ZPL II emulation, SDK support, Windows/Mac/Linux compatibility.
  • Adjustable Sensors – Gap and black mark sensors ensure consistent print quality.
  • Ribbon Support – Handles 110mm wide ribbons, including wax, resin, and wax/resin.
  • Compact Design – Durable, space-efficient desktop footprint.
  • Warranty – 2-year warranty


Product Specifications

Specification

Details

Model

TD-4750TNWB

Print Method

Thermal Transfer & Direct Thermal

Print Resolution

300 DPI

Print Speed

6 IPS (152.4 mm/sec)

Maximum Print Width

4 inch (105.7 mm)

Maximum Print Length

11,430 mm (450")

Minimum Print Length

5 mm

Media Types

Die-cut, continuous, fanfold, black mark, tag, wristband, notched

Media Width

4 inch

Max Roll Diameter

127 mm

Core Sizes Supported

1 inch & 1.5 inch

Ribbon Length Support

Up to 300 m

Media Sensor Types

Gap (transmissive), Black mark (reflective)

Connectivity Interfaces

USB 2.0, USB Host, RS232 Serial, Ethernet, Bluetooth 4.2, Wi-Fi (802.11a/b/g/n)

Control Panel

6-button panel, 3-colour LED

Memory

128MB SDRAM / 128MB Flash

Software Support

Windows, macOS, Linux, BarTender, ZPL II emulation

Barcodes Supported

Code 128, EAN, UPC, QR Code, PDF417, DataMatrix, Maxicode, Aztec

Operating Temperature

5°C to 40°C

Dimensions (W x D x H)

219mm x 284mm x 191mm

Weight

3 kg

Power Supply

AC 100-240V, 50/60Hz, 90W

Warranty

2-Year Return

Features

Core Size:
1.5 inch
Cutter Option:
  • Tearbar
OS Compatability:
  • Linux
  • macOS
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
  • Direct Thermal
Interface:
  • USB Host
  • WLAN
  • USB
  • Serial / RS232
  • Bluetooth
  • WIFI
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 6
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
Brother

Attachments

Brochure (Brother_TD-4750TNWB_Datasheet.pdf, 2,809 Kb) [Download]
