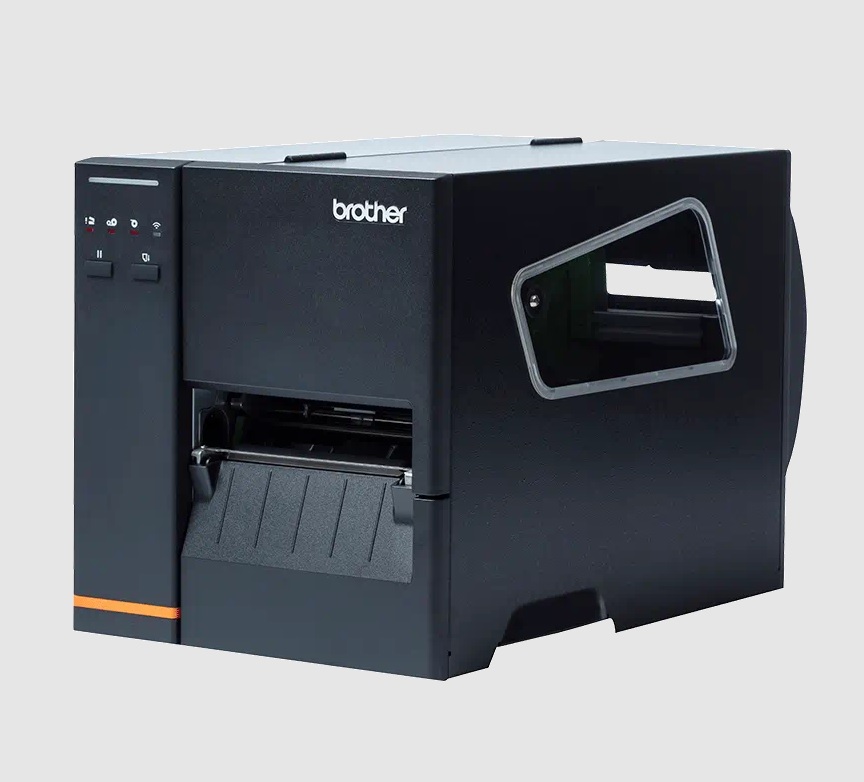

Brother TJ-4020TN TT 203dpi Eth/Usb Industrial Label Printer

3 inch, Auto-Cutter, iOS, Android, Linux, Windows, Mac, 4", 2 Years, Thermal Transfer, USB, Serial / RS232, Ethernet, 203dpi, Black, Monochrome, 10, Industrial, 4 inch, Brother
$1,789.00
For Special & Volume Pricing - Call +61 2 9090 4610
TJ-4020TN
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Engineered for high-volume labelling in demanding industrial environments, the Brother TJ-4020TN is a powerful and durable thermal transfer label printer offering blazing-fast speeds, a 450m ribbon capacity, and versatile media compatibility. Designed with simplicity in mind, the TJ-4020TN features a drop-in, connect-and-print setup, allowing Australian businesses to be up and running in no time.

With USB, Serial, and Ethernet connectivity as standard, plus optional Wi-Fi and Bluetooth, this label printer easily integrates into existing infrastructures. The rugged design, paired with advanced features such as ZPL2, EPL, DPL emulation and support for a wide range of label types, makes it perfect for shipping, logistics, manufacturing, compliance, and warehouse labelling tasks. Backed by a 2-year warranty and lifetime support from Brother Australia, it’s a reliable solution to streamline your labelling operations.


Product Features

  • 203 DPI Print Resolution – High-quality, durable text and barcodes
  • Thermal Transfer Printing – Ideal for long-lasting or cost-effective labelling
  • High-Speed Performance – Print up to 10 IPS (254 mm/sec)
  • Large Ribbon Capacity – Supports 450m ribbon rolls to minimize downtime
  • Robust Build – Built for tough production environments with a heavy-duty frame
  • Versatile Media Handling – Supports die-cut, continuous, fanfold, black mark and notch media
  • Standard Connectivity – USB 2.0, Serial (RS232), and Ethernet (10/100BASE-TX)
  • Optional Wi-Fi & Bluetooth – For wireless flexibility and mobility
  • Emulation Support – Compatible with ZPL2, EPL2, DPL and FBPL
  • Simple Control Panel – 4 intuitive icons and 2 function buttons for easy operation
  • Generous Warranty – 2-year hardware and printhead coverage


Product Specifications

Specification

Details

Model

Brother TJ-4020TN

Print Resolution

203 dpi (8 dots/mm)

Print Method

Thermal Transfer

Maximum Print Speed

10 IPS (254 mm/sec)

Maximum Print Width

4 inch (107 mm)

Minimum Print Length

5 mm (continuous), 50 mm (tear)

Maximum Print Length

25,400 mm

Connectivity

USB 2.0, Serial, Ethernet (Standard); Wi-Fi (Optional)

Media Width

Up to 4 inch

Media Thickness

0.06 mm to 0.28 mm

Roll Diameter

Max. 203.2 mm

Core Size

1 inch to 3 inch

Ribbon Capacity

450 m length, 40–110 mm width

Emulations Supported

ZPL2, EPL2, DPL, FBPL

Display

LED indicators and buttons for pause/feed

Control Panel

4 icon indicators, 1 status LED, 2 function buttons

Memory

128MB RAM, 128MB Flash

Dimensions (W x D x H)

248mm x 436mm x 274mm

Weight

9.2 kg (without media roll)

Power Supply

100–240V, 50/60Hz; Output: 24V/3.75A (90W)

Operating Temperature

0°C to 40°C

Operating Humidity

25% to 85% non-condensing

Warranty

2-Year Return to Base (Hardware & Printhead)

Software Compatibility

Windows®, macOS®, Linux®, BarTender, SDKs for iOS & Android

Features

Core Size:
3 inch
Cutter Option:
  • Auto-Cutter
OS Compatability:
  • Android
  • iOS
  • Linux
  • Mac
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
Interface:
  • USB
  • Serial / RS232
  • Ethernet
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 10
Printer Type / Suitable For:
  • Industrial
Print Width:
  • 4 inch
Manufacturer
:
Brother

Attachments

Brochure (Titan_Industrial_Printer_pdf.pdf, 3,458 Kb) [Download]
