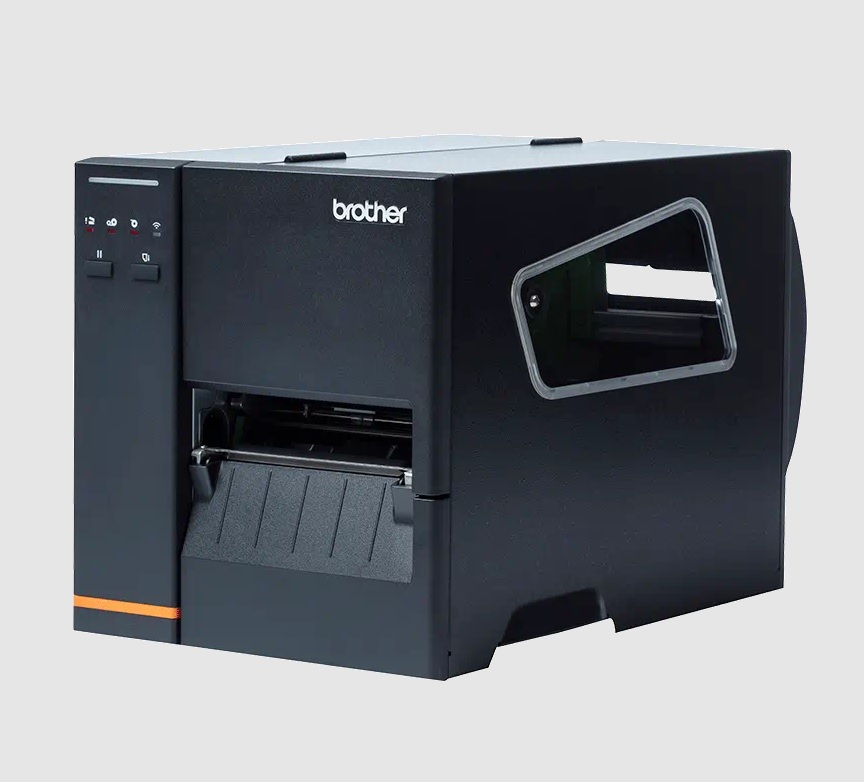

BROTHER TJ-4020TNW TT 203DPI ETH/USB/WIFI INDUSTRIAL LABEL PRINTER

USB, 3 inch, Tearbar, iOS, macOS, Android, Linux, Windows, 4", 2 Years, Thermal Transfer, USB, Serial / RS232, Ethernet, WIFI, 203dpi, Black, Monochrome, 10, Industrial, 4 inch, Brother
$1,809.00
For Special & Volume Pricing - Call +61 2 9090 4610
TJ-4020TNW
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Built to perform in high-demand industrial environments, the Brother TJ-4020TNW combines speed, reliability, and flexible connectivity in one rugged labelling solution. With a 203DPI print resolution, 450-metre ribbon capacity, and multiple interface options—including USB, Serial, Ethernet, and Wi-Fi—this label printer is engineered for high-volume applications such as logistics, warehousing, manufacturing, and compliance labelling.

The TJ-4020TNW’s intuitive drop-in and print design makes integration seamless, while its compatibility with ZPL2, EPL2, and DPL printer languages ensures it easily slots into your existing systems. From shipping and pallet labels to product and quality control tags, this Wi-Fi-enabled industrial printer gets the job done—fast, reliably, and with minimal downtime. Supported by Brother's 2-year warranty and lifetime local support across Australia, it's the productivity partner your operations can count on.


Product Features

  • 203 DPI Print Resolution – Crisp, clear barcodes and label text
  • Dual Thermal Technology – Supports both thermal transfer and direct thermal printing
  • Fast Printing – Speeds up to 10 IPS (254 mm/sec)
  • High Ribbon Capacity – Uses 450m ribbon rolls for less frequent changes
  • Industrial-Grade Durability – Built to handle rugged environments and continuous use
  • Flexible Connectivity – USB 2.0, Serial, Ethernet and built-in Wi-Fi for wireless setup
  • ZPL2, EPL2, DPL Compatible – Seamless integration with existing systems
  • Optional Accessories – Peeler and cutter available for automation workflows
  • Supports Multiple Media Types – Die-cut, fanfold, black mark, continuous, notch media
  • Brother “At Your Side” Support – Lifetime local support + 2-year warranty on hardware and printhead


Product Specifications

Specification

Details

Model

Brother TJ-4020TNW

Print Resolution

203 dpi (8 dots/mm)

Print Method

Thermal Transfer

Maximum Print Speed

Up to 10 IPS (254 mm/sec)

Maximum Print Width

4 inch (107 mm)

Minimum Print Length

5 mm (continuous), 50 mm (tear)

Maximum Print Length

25,400 mm

Media Width

20 mm to 120 mm

Media Thickness

0.06 mm to 0.28 mm

Media Types

Continuous, black mark, die-cut, fanfold, notch

Roll Diameter

Max. 203.2 mm

Core Size

1 inch to 3 inch (25.4 mm to 76.2 mm)

Ribbon Width

40 mm to 110 mm

Ribbon Length

450 metres

Connectivity

USB 2.0, Serial (RS232), Ethernet (10/100BASE-TX), Wi-Fi (802.11 a/b/g/n)

Emulations

ZPL2, EPL2, DPL, FBPL-EZD

Control Panel

4 icon indicators, 1 status LED, 2 buttons (Pause, Feed)

Memory

128 MB RAM / 128 MB Flash

Dimensions (W x D x H)

248mm x 436mm x 274mm

Weight

9.2 kg

Power Supply

100–240V AC, 24V output, 90W

Operating Temperature

0°C to 40°C

Humidity

25% to 85% RH (operating), 10% to 90% (storage)

Software Compatibility

Windows, macOS, Linux + SDKs for iOS & Android

Warranty

2-Year Return to Base (Hardware & Printhead)

Features

Cable:
  • USB
Core Size:
3 inch
Cutter Option:
  • Tearbar
OS Compatability:
  • Android
  • iOS
  • Linux
  • macOS
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
Interface:
  • USB
  • Serial / RS232
  • Ethernet
  • WIFI
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 10
Printer Type / Suitable For:
  • Industrial
Print Width:
  • 4 inch
Manufacturer
:
Brother

Attachments

Brochure (Brother_TJ-4020TN_PDF.pdf, 1,915 Kb) [Download]
