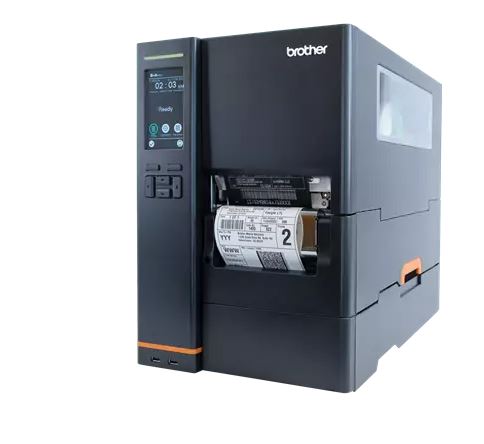

Brother TJ-4522TN TT 300Dpi Eth/Usb Industrial Label Printer

4", 2 Years, Thermal Transfer, USB Host, USB, Ethernet, Serial, 300 dpi, Black, Monochrome, 12, Industrial, 4 inch, Brother
$3,629.00
For Special & Volume Pricing - Call +61 2 9090 4610
TJ-4522TN
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Engineered for the most demanding environments, the Brother TJ-4522TN is a rugged 300DPI industrial thermal transfer label printer that delivers exceptional speed, reliability, and print quality. With a durable metal frame, 600m ribbon capacity, and intuitive 8.3cm colour touch display, this high-performance printer is built to handle heavy-duty labelling—printing over 1,000 labels per day with ease.

The TJ-4522TN supports USB, Serial, Ethernet connectivity out of the box and offers optional Wi-Fi and Bluetooth via modules for flexible network integration. Designed to work seamlessly with ZPL2, EPL, DPL, and FBPL command languages, it makes replacing legacy systems effortless.

Its internal rewinder, cutter and peel & present options ensure streamlined workflows, making it ideal for manufacturing, warehousing, logistics, shipping, and compliance labelling. The 300DPI resolution ensures high-quality barcodes and text for critical applications where accuracy matters most.


Product Features

  • 300DPI High-Resolution Output – Print clear barcodes and fine details
  • Print Speed up to 12 IPS (305mm/sec) – Fast labelling to maximize throughput
  • 8.3cm Colour LCD Touchscreen – Simplified navigation and troubleshooting
  • Supports ZPL2, EPL, DPL, and FBPL-EZD – Easy drop-in replacement for legacy systems
  • Built-In Interfaces – USB 2.0, Serial, USB Host, 10/100 Ethernet
  • Optional Wi-Fi & Bluetooth – Add wireless capability via PA-WI-002 or PA-WB-001
  • Rugged Industrial Build – Metal casing and robust design for tough environments
  • Internal Rewinder – Keeps printed labels neat and ready for batch use
  • 600m Ribbon Capacity – Reduces downtime and maintenance
  • 2-Year Warranty – Brother’s return-to-base support


Product Specifications

Specification

Details

Model

TJ-4522TN

Print Technology

Thermal Transfer

Print Resolution

300 DPI

Max Print Speed

12 IPS (305 mm/sec)

Max Print Width

4 inch

Media Width

0.7 inch - 4 inch  (20 mm – 114 mm)

Max Roll Diameter

203.2 mm

Ribbon Capacity

Up to 600 metres, inside/outside wound

Display

8.3cm Colour Touch LCD

Internal Rewinder

Yes

Connectivity

USB 2.0, USB Host, Serial, Ethernet (Standard)

Optional Connectivity

Wi-Fi (802.11a/b/g/n), Bluetooth 5.0

Emulations

FBPL-EZD (ZPL2, EPL, DPL, TSPL2)

Memory

128MB RAM / 512MB Flash, microSD slot (up to 32GB)

Roll Width (Cutter Mode)

0.7 inch - 4 inch (20 mm – 114 mm)

Operating Temp

0°C – 40°C

Humidity

25% – 85% (non-condensing)

Dimensions

276mm x 502mm x 412mm

Weight

18.93 kg

Warranty

2-Year Return-to-Base Warranty

Features

Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
Interface:
  • USB Host
  • USB
  • Ethernet
  • Serial
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 12
Printer Type / Suitable For:
  • Industrial
Print Width:
  • 4 inch
Manufacturer
:
Brother

Attachments

Brochure (Titan_Industrial_Printer_pdf.pdf, 3,458 Kb) [Download]
