Description

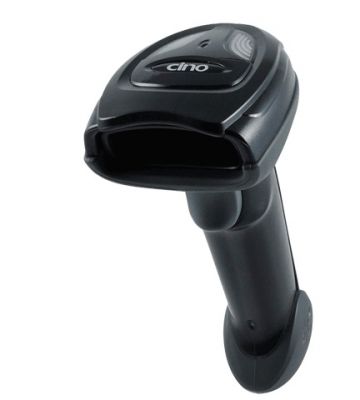

The Cino A780 Series 2D Handheld Imager is a high-performance barcode scanner engineered for demanding enterprise environments including retail, warehousing, logistics, and healthcare. Powered by Cino’s exclusive FuzzyScan Imaging Technology, the A780 offers superior first-time barcode reads, even on damaged, smudged, or low-contrast labels—across paper, plastic, and mobile screens.
With models tailored for Standard-Range, High-Density, and Extended-Range applications, the A780 accommodates everything from tiny electronics barcodes to long-range warehouse scanning—all in one rugged, compact form. It also supports omnidirectional scanning, enabling intuitive point-and-shoot operation with no need for barcode alignment.
The optional SmartStand enables seamless switching between handheld and presentation mode, while DataWizard Premium delivers advanced data formatting without complex host-side changes. Its robust build quality, tactile feedback (including optional vibrator), and intuitive LED indicators ensure excellent user experience and low downtime—perfect for any busy work environment.
Product Features
-
Reads All 1D & 2D Barcodes – From product labels to on-screen mobile tickets
-
Advanced FuzzyScan Technology – Instant decode of poor-quality or distorted barcodes
-
Omnidirectional Scanning – True point-and-shoot ease, no alignment required
-
Three Model Options – Standard, High-Density, and Extended-Range for versatile needs
-
Smart Visual & Audio Feedback – Includes LED indicators, beeper, and optional silent vibrator
-
Durable Build – Withstands multiple drops from 2 metres, IP42-rated protection
-
Intelligent Configuration – Scan-to-configure barcodes or use intuitive PowerTool software
-
Optional SmartStand Support – Enables hands-free auto-detection and scanning
Product Specifications
Scan Engine | Cino FuzzyScan Imaging with 1280 x 800 pixel resolution |
Supported Barcodes | 1D, 2D (QR, PDF417, DataMatrix, Aztec, MaxiCode), Postal codes |
Omnidirectional Scanning | Yes |
Minimum Resolution | HD: 2.4 mil Code 39 / SR: 2.7 mil / ER: 3.5 mil |
Reading Range (UPC 13mil) | HD: up to 9" / SR: up to 16" / ER: up to 26" |
Light Source | Red LED (660nm), sharp round LED aimer |
Print Contrast | ≥18>% |
Feedback Options | Beeper, LED, optional vibration |
Interfaces | USB HID, USB VCOM (COM), RS232 |
Dimensions | 93.5 x 71 x 160 mm |
Weight | 150g (excl. cable) |
Color | Black |
Power Requirement | 5VDC ± 10%, 395 mA (typical) |
Included Accessories | USB/RS232 Cable, Quick Start Guide |
Optional Accessories | SmartStand (auto-switching), USB Power Steal Cable, Wall Adapter |
Compliance | CE, FCC, RCM, VCCI, KC, RoHS |
Warranty | 5-Year Manufacturer Warranty |
