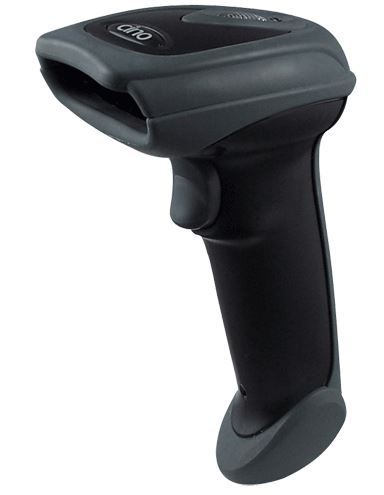

CINO F780 Linear Imager Scanner with USB Cable

Handheld, Corded, USB, Black, CINO
$189.00
For Special & Volume Pricing - Call +61 2 9090 4610
FBC780B-U
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Cino F780 Series Barcode Linear Imager combines rugged construction with advanced FuzzyScan 2.0 imaging technology, delivering high-performance scanning in even the harshest environments. Designed for retail, manufacturing, logistics, and general-purpose use, the F780 provides exceptional accuracy in decoding poorly printed, low-contrast, or damaged barcodes—making it an indispensable tool for scan-intensive applications.

Built to endure multiple 1.6m drops and sealed to IP41 standards, this scanner features a high-speed engine capable of 500 scans per second. With support for standard 1D symbologies and, in the F788 model, advanced linear-stacked barcodes like PDF417 and GS1 DataBar, the F780 Series ensures superior readability across diverse applications. Its ergonomic design, optional vibration feedback, and seamless switching between handheld and presentation modes using the Cino SmartStand enhance usability and flexibility.

Offering plug-and-play interfaces including USB HID, RS232, PS/2, and keyboard wedge, the F780 is ready to integrate into any workflow—right out of the box.

Product Features

  • Advanced FuzzyScan 2.0 imaging for superior barcode readability

  • Ultra-fast 500 scans per second for rapid data capture

  • Reads damaged, smudged, or low-contrast barcodes with ease

  • Supports 1D and stacked linear barcodes (PDF417, GS1 DataBar, Codablock, etc.)

  • Withstands multiple 1.6m drops onto concrete; IP41 rated for durability

  • Ergonomic, lightweight design for comfortable all-day use

  • Auto-switch between handheld and presentation modes with SmartStand

  • Multiple interface support: USB, RS232, PS/2, HID/COM

  • Optional vibration feedback for noisy environments

Product Specifications

Scan Engine

High-performance linear imaging with FuzzyScan 2.0

Scan Rate

Up to 500 scans/second

Supported Symbologies

1D barcodes (F780), linear-stacked (F788): PDF417, Codablock, etc.

Minimum Resolution

3 mil (Code 39, PCS 0.9)

Reading Distance

Up to 24" on 20 mil Code 39; >16" on 100% UPC/EAN

Light Source

630 nm visible red LED

Connectivity

USB HID/COM, RS232, PS/2, keyboard wedge

Drop Resistance

Withstands multiple 1.6m (5ft) drops to concrete

Protection Rating

IP41

Dimensions

97.8 x 70.5 x 156.2 mm

Weight

157g (excluding cable)

Operating Temperature

-10°C to 50°C

Storage Temperature

-40°C to 70°C

Ambient Light Immunity

0 to 100,000 lux

Power Consumption

Operating: 180mA @ 5V; Standby: 80mA @ 5V

Accessories

SmartStand, USB/RS232/PS2 cables, universal holder

Features

Form Factor:
  • Handheld
Connectivity:
  • Corded
Interface:
  • USB
Color:
  • Black
Manufacturer
:
CINO

Attachments

Brochure (f780_brochure.pdf, 269 Kb) [Download]
