CIPHER 2500 LINEAR BLK USB

54, Rugged, 2D, Industrial, 5 Years, Corded, USB, Black, Cipher Lab
$236.00
For Special & Volume Pricing - Call +61 2 9090 4610
A2500SCBSUA01
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

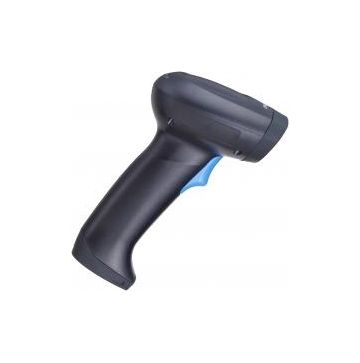

Engineered for performance and durability, the CipherLab 2500 Series Barcode Scanner is the ultimate solution for retail, warehousing, light industrial, and commercial scanning tasks. Equipped with a high-speed linear imager capable of 578 scans per second, this scanner delivers rapid, accurate reads of 1D barcodes—even those that are small, poorly printed, or printed on reflective surfaces.

Designed for dependable use in demanding environments, the CipherLab 2500 features IP54-rated sealing, 1.8m drop resistance, and auto-sensing capabilities for continuous workflow. Whether at the POS, in receiving or inventory, this business-rugged scanner enhances productivity with seamless USB, RS232, and Keyboard Wedge connectivity and auto cable detection.

Product Features

  • High-Speed Scanning: Up to 578 scans per second for fast, efficient barcode capture.

  • Linear Imager Technology: Scans all 1D barcodes, including high-density (3-mil) and low contrast (PCS 15%) labels.

  • Durability Tested: Withstands 1.8m drops and 1,000 tumbles at 1m, making it ideal for rugged environments.

  • IP54 Protection: Dust-protected and splash-resistant for industrial and retail use.

  • Auto-Sensing Mode: Supports auto-sense and continuous scanning for hands-free workflows.

  • Easy Deployment: Automatic interface detection for USB, RS232, and keyboard wedge connections.

  • Ergonomic Design: Lightweight, comfortable 145g form factor for extended use.

  • Wide Depth of Field: Optimised scan range with clear 3mm scan beam for precise targeting in cluttered barcode areas.

  • Red LED Illumination: Dual 625nm red LEDs provide reliable scanning in varied lighting conditions.

  • ScanMaster Software: Easy scanner configuration and firmware updates.

  • Supported Symbologies: Reads all standard 1D barcodes, including Codabar, UPC, EAN, Code 39, Code 128, GS1 DataBar, Interleaved 2 of 5, and more.

Product Specifications

Model

CipherLab 2500 (Corded)

Scanner Type

Linear Imager

Scan Technology

CCD Linear Sensor (2500 pixels)

Resolution

Reads barcodes down to 3 mil

Scan Rate

578 scans per second

Light Source

625 nm red LED (dual)

Connectivity

USB, RS232, Keyboard Wedge (auto cable detection)

Supported Barcodes

1D: UPC, EAN, Code 39, Code 128, Codabar, GS1, ITF, MSI, etc.

Min Print Contrast (PCS)

15>%

Motion Tolerance

2 m/s

Drop Resistance

1.8m onto concrete

Ingress Protection

IP54 rated

Scan Modes

Manual trigger, auto-sense, continuous

Physical Dimensions

16.1 x 6.6 x 9.6 cm

Weight

145g

Color Options

Black, Register White

Software

CipherLab ScanMaster (PC), ScanManager

Warranty

5-Year Manufacturer Warranty

Features

IP Rating:
  • 54
Rugged:
  • Rugged
Scan Engine:
2D
Usage:
  • Industrial
Warranty:
5 Years
Connectivity:
  • Corded
Interface:
  • USB
Color:
  • Black
Manufacturer
:
Cipher Lab
