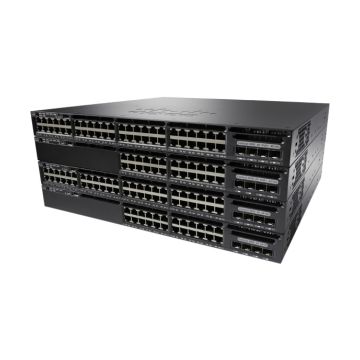

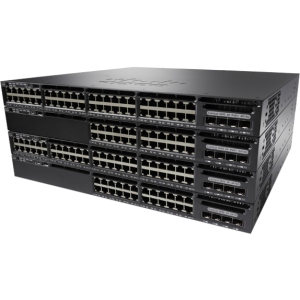

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
| Basic |
|---|
| Brand Name: |
Cisco |
| Ethernet Technology: |
Gigabit Ethernet |
| Expansion Slot Type: |
SFP |
| Form Factor: |
Desktop |
| |
Rack-mountable |
| Layer Supported: |
2 |
| Manageable: |
Yes |
| Media Type Supported: |
Twisted Pair |
| Network Technology: |
10/100/1000Base-T |
| Number of Total Expansion Slots: |
4 |
| PoE (RJ-45) Port: |
No |
| Port/Expansion Slot Details: |
Gigabit Ethernet |
| Power Source: |
Power Supply |
| Product Family: |
Catalyst 3650 |
| Product Type: |
Ethernet Switch |
| Redundant Power Supply Supported: |
Yes |
| Stack Port: |
Yes |
| Total Number of Network Ports: |
24 |
| Battery Information |
|---|
| Power Source: |
Power Supply |
| General Information |
|---|
| Brand Name: |
Cisco |
| Manufacturer Part Number: |
WS-C3650-24TS-L |
| Manufacturer Website Address: |
http://www.cisco.com |
| Manufacturer: |
Cisco Systems, Inc |
| Package Contents: |
- Catalyst 3650-24T Ethernet Switch
- Power Supply
|
| Product Line: |
Catalyst |
| Product Model: |
3650-24T |
| Product Name: |
Catalyst 3650-24T Ethernet Switch |
| Product Series: |
3650 |
| Product Type: |
Ethernet Switch |
| I/O Expansions |
|---|
| Expansion Slot Type: |
SFP |
| Number of SFP Slots: |
4 |
| Number of Total Expansion Slots: |
4 |
| Interfaces/Ports |
|---|
| Bypass: |
No |
| Ethernet Technology: |
Gigabit Ethernet |
| LRE Port: |
No |
| Management Port: |
Yes |
| Modular: |
No |
| Number of Network (RJ-45) Ports: |
24 |
| PoE (RJ-45) Port: |
No |
| Port/Expansion Slot Details: |
24 x Gigabit Ethernet Network |
| |
4 x Gigabit Ethernet Uplink |
| Stack Port: |
Yes |
| Token Ring Port: |
No |
| Total Number of Network Ports: |
24 |
| Uplink Port: |
Yes |
| Management & Protocols |
|---|
| Manageable: |
Yes |
| Management: |
- QoS
- VLAN
- Embedded Event Manager (EEM)
- RMON
- SNMP v1, 2c, 3
- MIB
- DHCP
|
| Management |
|---|
| Management: |
- QoS
- VLAN
- Embedded Event Manager (EEM)
- RMON
- SNMP v1, 2c, 3
- MIB
- DHCP
|
| Media & Performance |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Media Type Supported: |
Twisted Pair |
| Network Technology: |
10/100/1000Base-T |
| Twisted Pair Cable Standard: |
Category 5e |
| Memory |
|---|
| Flash Memory: |
2 GB |
| Memory Technology: |
DRAM |
| Standard Memory: |
4 GB |
| Miscellaneous |
|---|
| Certifications & Standards: |
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.11
- IEEE 802.1x
- IEEE 802.1x-Rev
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
Safety:
- UL 60950-1 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- GOST
- NOM (obtained by partners and distributors)
Electromagnetic Emissions:
- 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)
- AS/NZS CISPR22 Class A
- CISPR22 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- KCC
- CNS13438 Class A
- EN55024
- CISPR24
- KN24
|
| Form Factor: |
Desktop |
| |
Rack-mountable |
| Green Compliance Certificate/Authority: |
RoHS-5 |
| Green Compliant: |
Yes |
| Package Contents: |
- Catalyst 3650-24T Ethernet Switch
- Power Supply
|
| Network & Communication |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Layer Supported: |
2 |
| Network Technology: |
10/100/1000Base-T |
| Network |
|---|
| Network Technology: |
10/100/1000Base-T |
| Physical Characteristics |
|---|
| Compatible Rack Unit: |
1U |
| Depth: |
447.7 mm |
| Form Factor: |
Desktop |
| |
Rack-mountable |
| Height: |
43.9 mm |
| Weight (Approximate): |
6.87 kg |
| Width: |
444.5 mm |
| Power Description |
|---|
| Input Voltage: |
110 V AC |
| |
220 V AC |
| PoE (RJ-45) Port: |
No |
| Power Source: |
Power Supply |
| Redundant Power Supply Supported: |
Yes |
| Product Information |
|---|
| Form Factor: |
Desktop |
| |
Rack-mountable |
| Power Source: |
Power Supply |
| Width: |
444.5 mm |
| Reliability |
|---|
| MTBF: |
661800 Hour |
| Storage |
|---|
| Flash Memory: |
2 GB |
| Technical Information |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Management: |
- QoS
- VLAN
- Embedded Event Manager (EEM)
- RMON
- SNMP v1, 2c, 3
- MIB
- DHCP
|
| Media Type Supported: |
Twisted Pair |
| Memory Technology: |
DRAM |
| Modular: |
No |
| Number of Network (RJ-45) Ports: |
24 |
| Power Source: |
Power Supply |
| Warranty |
|---|
| Limited Warranty: |
Lifetime |
