Description

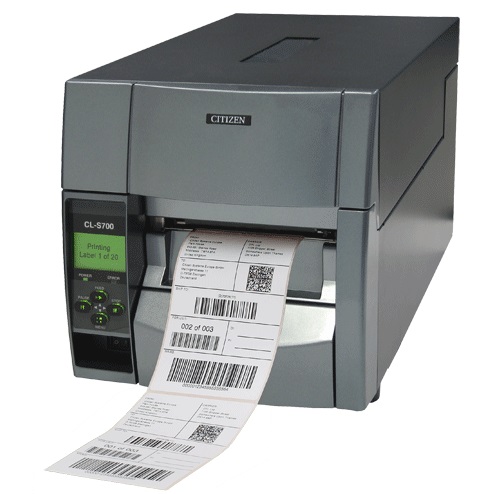

The Citizen CL-S703R is a powerful and rugged 300DPI industrial label printer designed to handle the most demanding labelling tasks in manufacturing, logistics, healthcare, and warehousing environments. Built with a robust Hi-Lift™ metal print mechanism and heavy-duty metal housing, this printer is engineered for long-term performance and durability.
With 300DPI high-resolution printing, the CL-S703R produces crisp, detailed labels and barcodes, while the integrated rewind mechanism allows for internal batch roll-up of printed labels, perfect for batch jobs or peel-and-apply applications. Standard connectivity options include USB, Serial (RS-232), and Parallel, and optional Ethernet or Wi-Fi is available for seamless integration into your networked environment.
The CL-S703R’s Cross-Emulation™ technology automatically detects and switches between Zebra® and Datamax® emulation languages, making it incredibly versatile for various enterprise applications.
Product Features
- 300DPI Print Resolution – Ideal for high-quality, small-label or barcode printing
- Built-in Rewinder – Allows full label roll-up for batch jobs or offline use
- Durable Construction – Metal case and Hi-Lift™ 90° mechanism for easy ribbon/media access
- User-Friendly LCD Display – With VuePrint™ menu for configuration and real-time status
- Multiple Interfaces – USB, Serial, and Parallel included; optional Ethernet or Wi-Fi
- High Media Capacity – Supports large 8-inch label rolls for long print runs
- ARCP™ Ribbon Control – For precise, consistent printing using ribbons up to 450m
- Cross-Emulation™ Support – Seamlessly switches between Zebra® and Datamax® command languages
- Standard and 2D Barcode Support – Compatible with all common barcode formats.
Product Specifications
Specification | Details |
Model Number | CLS703RW (CL-S703R with Rewind) |
Print Method | Thermal Transfer & Direct Thermal |
Print Resolution | 300 DPI (8 dots/mm) |
Max Print Speed | Up to 8 IPS (200 mm/sec) |
Max Print Width | 4 inch (104 mm) |
Max Print Length | 812 mm |
Media Type | Roll-fed, fanfold, die-cut, continuous, tags, wristbands |
Media Width | Up to 4 inch |
Media Thickness | 0.0635 mm to 0.254 mm |
Label Roll Capacity | Up to 203 mm (8") O.D. on 38–76 mm core |
Ribbon Capacity | Up to 450 m, ink in/out, ARCP™ supported |
Emulations | Zebra®, Datamax® (auto-sensing Cross-Emulation™) |
Display | Large Graphic LCD with VuePrint™ Menu System |
Interfaces (Standard) | USB 1.1, RS-232 Serial, Parallel (IEEE 1284) |
Interfaces (Optional) | Ethernet LAN, Wireless LAN |
Memory | 16MB SDRAM (1MB usable), 4MB Flash (1MB usable) |
Barcode Support | 1D & 2D barcodes including Code 128, QR, PDF-417, Maxicode, and more |
Power Supply | AC 100–240V, 50/60Hz |
Power Consumption | Max 3.5A |
Dimensions (WxDxH) | 255mm x 490mm x 385mm (with rewinder) |
Weight | 17.6 kg (with rewinder) |
Operating Environment | 0°C – 40°C, 30% – 80% RH (non-condensing) |
Certifications | RCM, UL, CE, FCC Class A, CCC |
Features
Cable:
- Serial
- USB
- Parallel
Print Size:
- 4"
Warranty:
1 Year
Print Method:
- Thermal Print
- Direct Thermal
Interface:
- USB
- Serial / RS232
- Parallel
Color:
- Grey
Type:
- Monochrome
Print Speed :
- 8
Printer Type / Suitable For:
- Industrial
Print Width:
- 4 inch
