Description

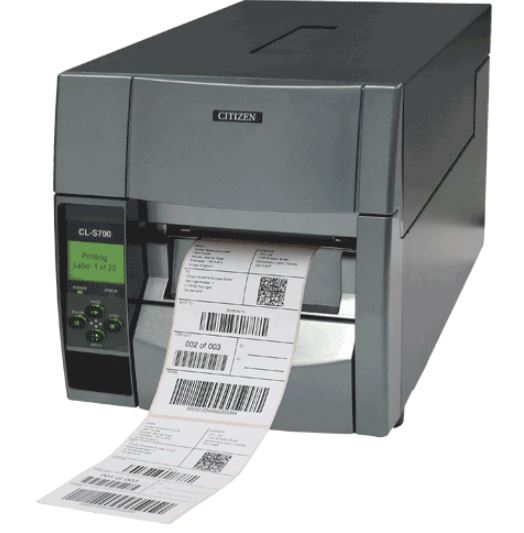

The Citizen CL-S703II is a rugged, high-performance industrial label printer built to deliver precise 300DPI resolution printing in demanding environments. Whether you’re labelling products, assets, or packaging, this printer ensures sharp, high-definition results—ideal for applications requiring small fonts or detailed barcodes.
Designed for heavy-duty use, the CL-S703II features a robust metal Hi-Lift™ mechanism, making ribbon changes effortless with a full 90° open design. The printer’s ARCP™ automatic ribbon tensioning system ensures smooth and wrinkle-free printing for both inside and outside wound ribbons up to 450 metres long.
With Direct Thermal and Thermal Transfer capability, it supports a wide range of media including fanfold and roll-fed labels. The large graphic LCD with intuitive controls makes configuration easy, and Cross-Emulation™ technology allows seamless switching between Zebra® and Datamax® command languages—ensuring straightforward integration into existing systems.
Equipped with USB, Serial, and Parallel interfaces, and optional Ethernet or Wi-Fi, the CL-S703II is ready for modern industrial connectivity. With Citizen’s reliability and performance, this printer is ideal for warehouses, logistics, healthcare, manufacturing and other high-volume labelling environments across Australia.
Product Features
- 300 DPI Print Resolution – Ideal for detailed text, graphics, and barcodes
- Thermal Transfer & Direct Thermal Printing – Flexibility for multiple label types
- Hi-Lift™ Metal Mechanism – Full 90° opening for easy ribbon/media loading
- Heavy-Duty Metal Case – Built for industrial use and durability
- ARCP™ Ribbon Control – Smooth ribbon operation with up to 450m ribbons
- Cross-Emulation™ – Supports Zebra® ZPL2® and Datamax® command sets
- Easy-to-Use Interface – Large LCD, soft-close top cover, and simple navigation
- Flexible Media Handling – Supports continuous, die-cut, tags, fanfold and more
- Connectivity Options – USB, RS-232 Serial, Parallel, optional Ethernet/Wi-Fi
- Compact Footprint for Industrial Environments – Fits neatly into workstations
Product Specifications
Specification | Details |
Model | Citizen CL-S703II |
Print Method | Thermal Transfer & Direct Thermal |
Print Resolution | 300 DPI (11.8 dots/mm) |
Max Print Width | 4 inch (104 mm) |
Max Print Length | 253.9 mm |
Max Print Speed | Up to 8 IPS (203 mm/sec) |
Media Types | Roll, Fanfold, Die-Cut, Continuous, Tags, Tickets |
Media Width | 1 inch to 4 inch (25.4 mm – 118 mm) |
Label Width | 7.62 mm – 118 mm |
Media Thickness | 0.0635 mm – 0.254 mm |
Max Roll Diameter | Ø203 mm with 1.5 inch - 4-inch (38–76 mm) core |
Ribbon Length | Up to 450 metres (inside or outside wound) |
Interfaces (Standard) | USB 1.1, RS-232 Serial, IEEE 1284 Parallel |
Optional Interfaces | Ethernet LAN, Wireless LAN |
User Interface | Graphic LCD, LED indicators, 4 operating buttons |
Printer Emulations | Zebra® ZPL-II®, Datamax®, Cross-Emulation™, Eltron® EPL2® |
Memory | 64MB SDRAM (30MB usable), 16MB Flash (4MB usable) |
Sensors | Transparent, Reflective, Optional Label Peeling Sensor |
Power Supply | 100–240V AC, 50/60Hz, 1.5–3.5A |
Power Consumption | Max. 3.5A |
Dimensions (WxDxH) | 255mm x 490mm x 265mm |
Weight | 13.3 kg |
Operating Temperature | 0°C to 40°C (Humidity: 30%–80% non-condensing) |
Storage Conditions | -20°C to 60°C (Humidity: 5%–85% non-condensing) |
Compliance | UL, C-UL, FCC Class A, CE, RCM/C-Tick, CCC |
Warranty | 2-Year Manufacturer’s Warranty |
Features
Core Size:
1 inch
Print Size:
- 4"
Warranty:
2 Years
Print Method:
- Thermal Transfer
- Direct Thermal
Interface:
- USB
- Serial / RS232
- Parallel
Color:
- Black
Type:
- Monochrome
Print Speed :
- 8
Printer Type / Suitable For:
- Industrial
Print Width:
- 4 inch
