Description

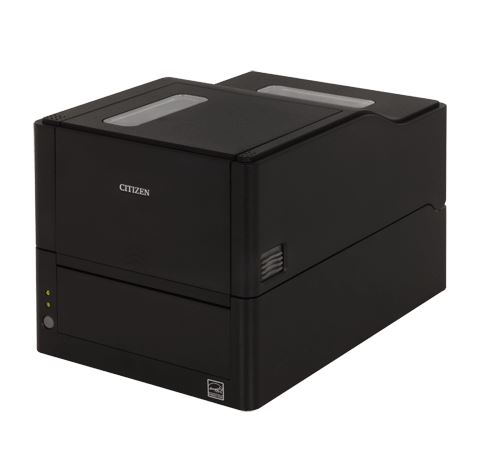

The Citizen CL-E321 label printer delivers exceptional performance in a compact, modern design. Engineered for versatility and ease of use, this printer supports both thermal transfer and direct thermal printing at up to 8 inches per second, making it ideal for fast-paced environments such as logistics, healthcare, and light manufacturing.
Equipped with USB, Ethernet LAN, and RS232 serial interfaces as standard, the CL-E321 enables flexible connectivity and remote management through LinkServer, Citizen’s web-based printer configuration tool. Media changes are quick and effortless thanks to the unique Hi-Lift mechanism, offering full access to the printhead and ribbon path for fast media loading and tool-free maintenance.
With Cross-Emulation support for both ZPL-II and Datamax languages, the CL-E321 integrates easily into existing printer environments. Built with adjustable gap and black mark sensors, it handles a wide variety of media types including wristbands, asset labels, garden tags, and continuous rolls.
Product Features
- 203 dpi resolution with fast 8 IPS printing speed
- Dual printing modes: Thermal Transfer & Direct Thermal
- Compact footprint – perfect for space-constrained workstations
- Hi-Lift mechanism – full access for easy media/ribbon changes
- One-minute tool-free maintenance of head and platen
- Triple interface support: USB 2.0, Ethernet LAN, RS232 Serial
- LinkServer enables web-based remote management
- Adjustable sensors – supports gap, black mark, and punch hole
- Cross-Emulation auto-switches between ZPL-II and Datamax
- Available in black or white case for various work environments
- Eco-friendly design with <0.15W power in idle mode
- Supports media up to 4 inch wide and 5 inch roll diameter
- Perfect for logistics, retail, manufacturing, healthcare & more
Product Specifications
Specification | Details |
Print Method | Thermal Transfer & Direct Thermal |
Resolution | 203 dpi |
Max Print Speed | 8 IPS (200 mm/s) |
Max Print Width | 4 inch (104 mm) |
Max Print Length | 2540 mm (100 inches) depending on emulation |
Interfaces | USB 2.0, RS232 Serial, 10/100 Ethernet (LAN) |
Emulations | Cross-Emulation (ZPL-II, Datamax), CBI, EPL (upcoming) |
Memory | 32MB SDRAM (4MB user), 16MB Flash (4MB user) |
Sensors | Adjustable gap, black mark, and punch hole sensing |
Media Types Supported | Continuous, gap labels, black mark, wristbands, tags |
Media Width | 4 inch |
Media Thickness | 63.5 – 190 µm |
Roll Diameter | Max 125 mm , Core: 0.5inch – 1 inch |
Paper Feed Method | Friction Feed |
Cutter | Optional (Factory-fitted CLE321CG) |
Controls/Indicators | Feed/Settings button, 2 LED indicators |
Web Management | LinkServer (via LAN) |
Power Supply | Auto-switching 100–240V, 50/60Hz |
Power Consumption | 60W typical while printing |
Dimensions (W x D x H) | 178mm x 266mm x 173mm |
Weight | 2.6 kg (2.82 kg with cutter) |
Operating Temp. | 5 to 40°C, 30–85% RH (non-condensing) |
Storage Temp. | -20 to 50°C, 10–90% RH |
Certifications | CE, FCC Class A, CB, C-tick, NOM, CCC, S-Mark |
Software Support | Windows 7/8.1/10, 2008R2–2016, Linux |
Recommended Use | Logistics, Retail, Manufacturing, Healthcare, Asset Labelling |
Warranty | 2 Years |
Features
Cable:
- Serial
- USB
- Ethernet
Core Size:
1 inch
Cutter Option:
- Auto Cutter
OS Compatability:
- Windows
Print Size:
- 4"
Warranty:
1 Year
Print Method:
- Thermal Print
- Direct Thermal
Interface:
- USB
- Ethernet
- Serial
Color:
- Black
Type:
- Monochrome
Print Speed :
- 8
Printer Type / Suitable For:
- Desktop
Print Width:
- 4 inch
