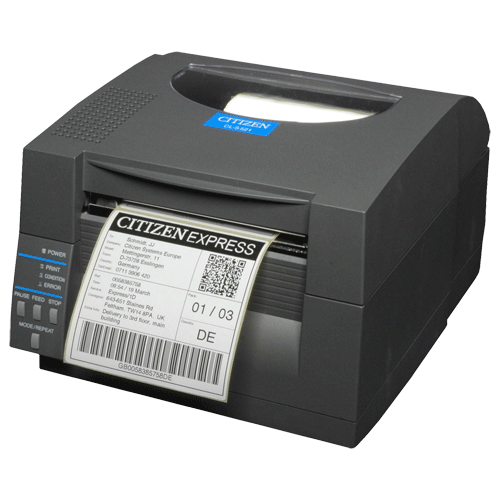

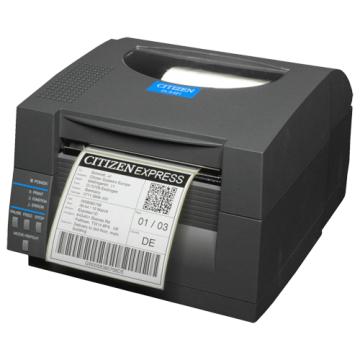

CITIZEN CLS-521II Label 203dpi Printer with Cutter Blk

3 inch, Cutter, Windows, 4", 2 Years, Direct Thermal , USB, Serial, 203dpi, Black, Monochrome, 6, Desktop, 4 inch, CITIZEN
$679.00
For Special & Volume Pricing - Call +61 2 9090 4610
CLS521IIG
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The CITIZEN CLS-521II is a compact and durable direct thermal label printer designed for industrial labelling applications in healthcare, logistics, pharmacy, and retail. With a fast print speed of up to 6 inches per second and 300 DPI resolution, it offers precision and high performance for barcode and label printing needs.

Built with a rugged metal Hi-Lift print mechanism, it provides tool-free media loading and adjustable sensors for versatile media compatibility. Dual emulation support (Zebra ZPL and Datamax DPL) ensures seamless integration with existing systems. Standard USB and Serial connectivity is included, with optional Parallel, Ethernet, or Wireless LAN interfaces available. It also supports a wide range of barcode formats and includes user-friendly label design software.


Product Features

  • Reliable direct thermal printing with 300 DPI resolution
  • High-speed printing up to 6 IPS (152 mm/sec)
  • Rugged metal Hi-Lift mechanism for easy loading and maintenance
  • Auto-sensing ZPL and DPL emulation for compatibility
  • Standard USB and Serial interfaces with optional Ethernet/Wi-Fi/Parallel
  • Supports die-cut, continuous, fanfold, tags, and tickets
  • Adjustable media sensor for label gap and black mark
  • Powerful 32-bit RISC processor for fast throughput
  • Optional cutter and label peeler modules
  • ENERGY STAR qualified with internal power supply


Product Specifications

Specification

Details

Print Method

Direct Thermal

Print Resolution

300 DPI

Max Print Speed

6 IPS (152 mm/sec)

Max Print Width

4 inch (104 mm)

Media Width

4 inch

Media Thickness

0.0635 – 0.254 mm

Media Types

Roll, Fanfold, Die-cut, Continuous, Tags

Media Roll Diameter

127 mm

Paper Core Size

1 inch to 3 inch (min 50.8 mm for labels)

Print Length Range

6.4 mm to 812.8 mm

Interface

USB 1.1, RS232 (Standard) ; Ethernet, Wi-Fi, Parallel (Optional)

Emulations

ZPL, DPL (Auto-Sensing)

Memory

16MB DRAM, 4MB Flash

Barcodes Supported

1D & 2D incl. Code 128, QR Code, Data Matrix, PDF417

Font Support

OCR-A, OCR-B, TrueType Rasterizer

Cutter Option

Optional Guillotine Cutter

Power Supply

Internal, 220-240V, ENERGY STAR Certified

Dimensions (WxDxH)

231mm x 289mm x 186mm

Weight

Approx. 3.6 kg

Operating Environment

0 to 40°C, 30–80% RH

Software

Bartender Ultralite (included)

Warranty

2 Years

Features

Core Size:
3 inch
Cutter Option:
  • Cutter
OS Compatability:
  • Windows
Print Size:
  • 4"
Warranty:
2 Years
Print Method:
  • Direct Thermal
Interface:
  • USB
  • Serial
Color:
  • Black
Type:
  • Monochrome
Print Speed :
  • 6
Printer Type / Suitable For:
  • Desktop
Print Width:
  • 4 inch
Manufacturer
:
CITIZEN

Attachments

Manual (cls521_um.pdf, 2,671 Kb) [Download]
