Description

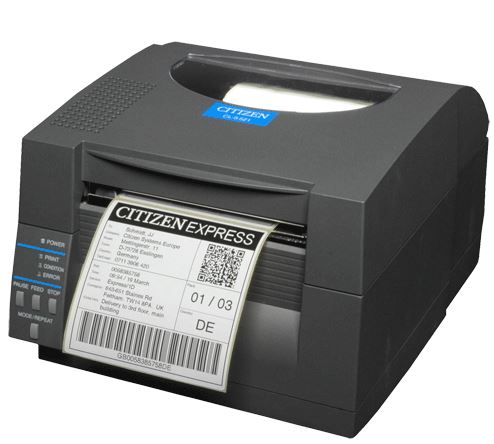

Citizen CLS-531II is a powerful 300DPI direct thermal label printer ideal for retail, logistics, manufacturing, and healthcare applications in Australia. Featuring a robust metal print mechanism and Citizen’s signature Hi-Lift clamshell design, this desktop printer makes media loading effortless.
With dual emulation support (Zebra ZPL and Datamax DPL), it offers maximum compatibility and flexibility. Standard USB and RS232 interfaces ensure seamless integration, and the adjustable media sensors handle a wide range of label types and configurations. Whether you're printing shipping labels, barcode tags, or product stickers, the CLS-531II delivers clear, consistent results at speeds 4 IPS (100mm/sec).
Product Features
- High-resolution 300DPI direct thermal printing for crisp barcode and text output
- Strong metal print mechanism ensures long-lasting performance
- Hi-Lift clamshell design enables easy ribbon and media loading
- Auto-emulation of Zebra ZPL and Datamax DPL commands
- USB and RS232 interfaces for standard connectivity
- Adjustable media sensors support various label formats
- Optional peeler and guillotine cutter modules available
- Compact footprint with ENERGY STAR internal power supply
- Includes Bartender Ultralite label design software
- Optional Ethernet, Parallel, or WLAN interfaces for extended connectivity
Product Specifications
Specification | Details |
Model | CLS-531II |
Print Method | Direct Thermal |
Print Resolution | 300 DPI (12 dots/mm) |
Max Print Width | 4 inch (104 mm) |
Max Print Length | 812.8 mm |
Max Print Speed | 4 IPS (100 mm/s) |
Memory | 16MB SDRAM, 4MB Flash ROM |
Interfaces | USB 1.1, RS232C (Standard); Optional Ethernet, Parallel, WLAN |
Media Width | Up to 4 inch |
Media Thickness | 0.0635 mm to 0.254 mm |
Max Roll Diameter | 127 mm |
Core Diameter | 25.4 to 76 mm (min. 50.8 mm for labels) |
Barcodes Supported | 1D & 2D incl. Code 128, QR Code, Data Matrix, PDF417, Aztec |
Emulations | Citizen, Datamax DPL, Zebra ZPL (auto-sensing) |
Sensors | Reflective, Transparent, Optional Peeler Sensor |
Display/Controls | LCD Panel with 4 Function Keys (Feed, Stop, Pause, Mode) |
Power Supply | Internal 220–240V, ENERGY STAR Qualified |
Dimensions (WxDxH) | 231mm x 289mm x 186mm |
Weight | Approx. 3.6 kg |
Operating Environment | 0–40°C, 30–80% RH (non-condensing) |
Warranty | 2 Years Limited Warranty |
Features
Core Size:
1.5 inch
OS Compatability:
- Windows
Print Size:
- 4"
Warranty:
2 Years
Print Method:
- Direct Thermal
Interface:
- USB
- Serial / RS232
Color:
- Black
Type:
- Monochrome
Print Speed :
- 4
Printer Type / Suitable For:
- Desktop
Print Width:
- 4 inch
