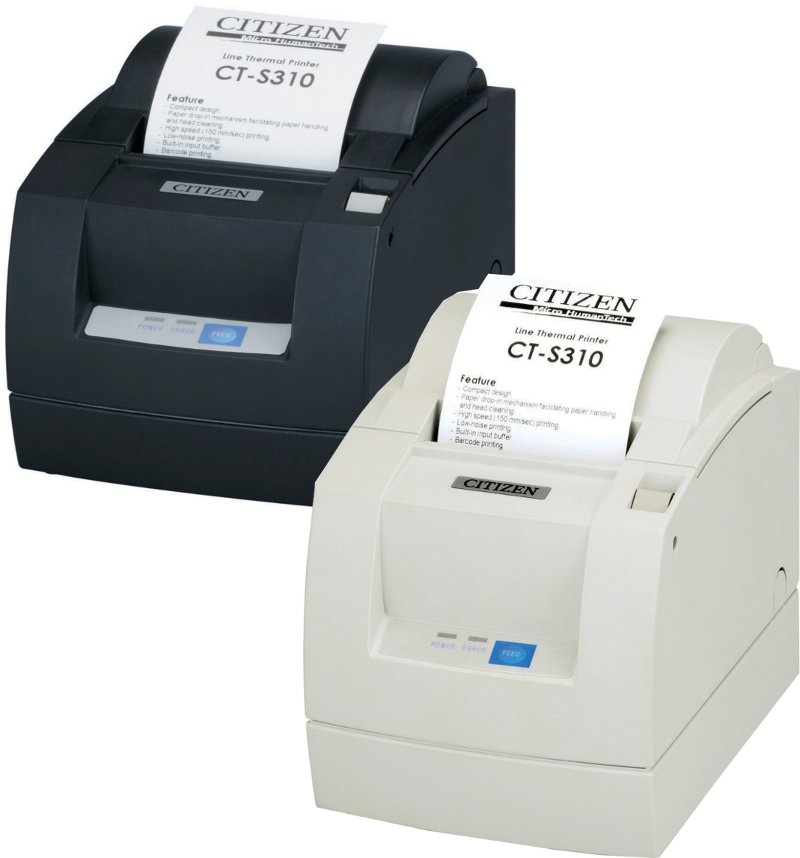

Citizen CTS310UR / CTS310URBL Thermal Receipt Printer With USB & RS-232 Interface

CTS310UR / CTS310URBL
[Contact us for a price] Request a quote
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
Citizen

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

Discontinued: - Replacement CTS-310II

The Citizen CT-S310 POS printer has it all: 150 mm/sec high-speed printing, the smallest footprint in its class and a dual-interface standard (USB + serial, parallel, or Ethernet) on all models. All this, plus it can be positioned horizontally, vertically, or even wall mounted for extra versatility. Best of all, it comes with the features you have come to know and trust from one of the most respected names in POS printers: drop-in paper loading, a long-life paper cutter, barcode printing.
Features:
  • Low cost Thermal Printing
  • 150mm/sec. printing speed
  • Addressable two-colour thermal printing (with special paper)
  • Drop-in Paper Loading
  • USB is default in addition to Serial or Parallel interface board
  • NV Memory for Bit map Data Storage
  • Built-in buzzer
  • Wall mount kit
  • Can stand alone vertically
  • Internal Power Supply, can be taken of to lower printer height
  • Splash proof cover
  • Easy customization with software utility
  • Available in White & Black

Attachments

CITIZEN CTS310-Brochure (cts310.pdf, 162 Kb) [Download]

Specifications

Printing Method

Line Thermal Dot Printing

Printing Width

80mm Paper: 72mm/576 Dots

58mm Paper: 48mm/384 Dots

Dot Pitch

8 x 8 dots/mm (203 x 203 dpi)

Printing Speed (Max.)

Max. 150 mm/Sec (23.6 Lines/Sec)

Number of Columns

80 mm Paper: Font A - 48/42 columns, Font B - 64/56 columns, Font C - 72/63 Columns

58 mm Paper: Font A - 32/30 columns, Font B - 42/40 columns, Font C - 48/45 Columns

Character Size

Font A:1.25 ×3.00mm (12 x 24 Dots),

Font B:0.88 ×2.13mm (9 x 17 Dots),

Font C: 0.88 x 2.0mm (8 x 16 Dots

Character Table

Alphanumeric Character (Font A, B & C)

Code page 437, 850, 852, 857, 860, 863, 864, 865, 866, Katakana, WPC1252, Thai code 18

Bar-code Type

UPC-A/E,JAN-13/8,ITF,Code 39,Code 128,CODABAR,Code 93

Line Spacing

4.23mm (1/6 inch), can be set by a command

Paper feed method

Friction

Paper Type

Thermal Paper Roll

Paper Width

80 ± 0.5mm or 58 ± 0.5mm

Paper Roll Diameter

Max Ø 83.0mm

Paper Supply Method

Easy Paper Loading, Drop in and Print

Emulation

ESC/POS

Print Buffer

4K bytes/45 bytes

NV Memory

256 Kbytes

Sensors

Paper Near End Sensor, Paper End Sensor , Rear Cover Open Sensor

Drawer Ports

2 ports

Standard Interfaces Available

USB interface standard plus 2nd interface card

Parallel

IEEE1284

Serial

RS232C

Ethernet

10/100 Mb/sec

Driver available

Windows 2000/NT/XP/2003 server, OPOS 1.8, CUPS

Software Utilities

Firmware/NV Image download

Weight

approx. 1.2 Kg

External Dimensions

(W x D x H)

145 x 195 x 159 mm, CT-S300S with internal power adapter

145 x 195 x 121 mm, CT-S300A with external power adapter

Reliability

Head

100,000,000 pulses or 100 Km

Auto Cutter

1,000,000 cuts

EMC/Safety Standards

UL, C-UL, FCC Class A, TUV-GS, CE

Power Supply (Adapter)

Input: AC100 ~230V± 10%(include)

Output: DC 24V, 2A
