Description

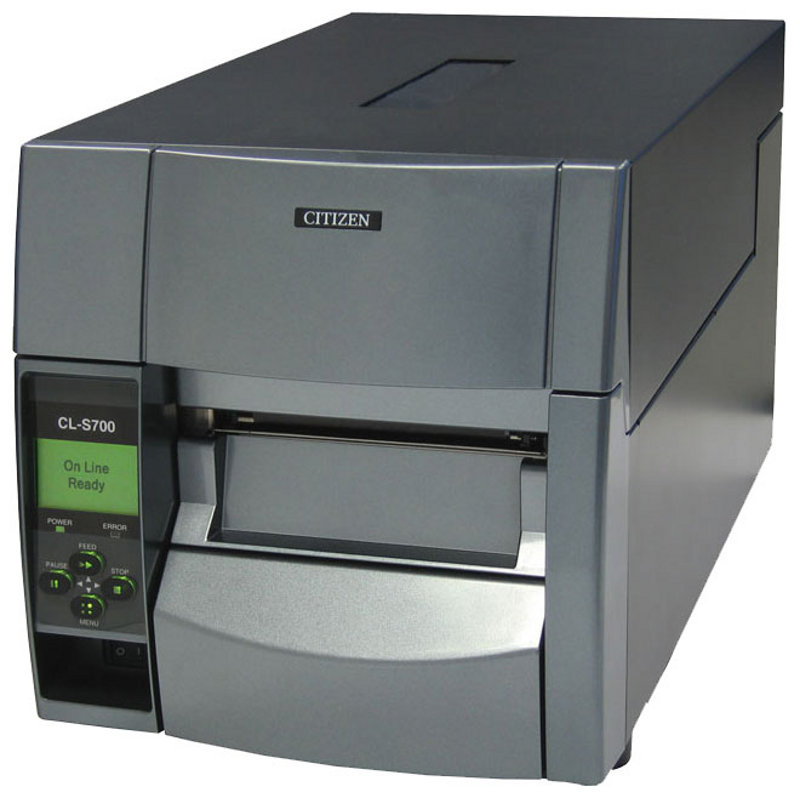

The Citizen CL-S703 is a 300DPI high-resolution industrial label printer engineered for demanding labelling applications across manufacturing, logistics, retail, and healthcare. Designed with dual printing technology (Thermal Transfer & Direct Thermal), this robust printer ensures exceptional print clarity for barcodes, graphics, and text—even on the smallest labels.
Featuring a durable Hi-Lift™ metal mechanism with a 90° opening for easy ribbon and media access, the CL-S703 offers unmatched reliability in tough environments. With a max print speed of 8 inches per second, it combines speed and precision with ease of use. The large backlit LCD allows for intuitive printer setup and status monitoring, while standard USB, serial, and parallel interfaces provide flexible integration into various systems.
The printer supports a wide range of media types, with media thickness ranging from 0.06 to 0.25 mm, and label widths up to 4.65 inches. It’s capable of handling heavy-duty workloads with a rated print durability of 100 km or 1 million labels (with approved media). Perfect for operations requiring consistent, sharp, and long-lasting label output.
Product Features
- High Resolution Printing – 300 DPI (12 dots/mm) for sharp barcodes and text
- Fast Print Speed – Up to 8 IPS (200 mm/sec) for efficient output
- Dual Printing Modes – Supports Thermal Transfer & Direct Thermal methods
- Heavy-Duty Design – Metal construction with soft-close top cover for durability and safety
- Easy Ribbon Access – Hi-Lift™ 90° metal mechanism for quick maintenance
- Advanced Emulation – Supports Zebra® and Datamax® language emulations with auto-sensing
- Flexible Media Support – Handles media up to 4.65" wide with 8" roll capacity
- User-Friendly Interface – Graphic LCD with intuitive controls and alarms
- Standard Interfaces – USB, RS-232 Serial, and Parallel; optional Ethernet and Wireless LAN
- Long-Life Performance – Designed to print up to 100 km or 1 million peeled labels
Product Specifications
Specification | Details |
Model | Citizen CL-S703 |
Print Method | Thermal Transfer & Direct Thermal |
Resolution | 300 DPI (12 dots/mm) |
Max Print Speed | 8 IPS (200 mm/sec) |
Max Print Width | 4 inch |
Max Media Width | 4 inch (118 mm) |
Min Media Width | 1.00 inch (25.4 mm) |
Max Roll Diameter | 8 inches (203 mm) |
Media Thickness | 0.06 – 0.25 mm (0.0024 – 0.01 in.) |
Label Thickness | Max 0.17 mm (0.0067 in.) |
Label Length (Max) | 120 mm (4.72 in.) |
Core Size | Min. 1 inch (25.4 mm) |
Interfaces (Standard) | USB, Serial (RS-232), Parallel (IEEE 1284) |
Optional Interfaces | Ethernet, Wireless LAN |
Display | Backlit graphic LCD with menu navigation and status indicators |
Emulation | Cross-Emulation™: Zebra®, Datamax®, Eltron® EPL2® |
Media Type | Continuous, Die-cut, Black Mark, Tag, Fanfold |
Cutter Options | Rotary cutter (optional), 0.8 sec per cut |
Memory | 64MB SDRAM, 16MB Flash (30MB & 4MB user-available) |
Dimensions (WxDxH) | 255mm × 490mm × 265mm |
Weight | 13.3 kg (29.3 lbs) |
Operating Temp | 0 – 40 °C, Humidity: 30 – 80% non-condensing |
Certifications | UL, CE, C-Tick/RCM, FCC Class A, CCC |
Warranty | 2-Year Manufacturer’s Warranty |
