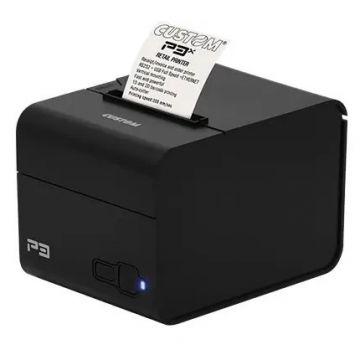

Custom P3X 80MM Eth/RS232/Usb Blk Thermal Printer

Auto Cutter, 80mm, Windows, Linux, Thermal, USB, Serial / RS232, Ethernet, 203dpi, Black, 200mm/sec, Custom
$479.00
For Special & Volume Pricing - Call +61 2 9090 4610
911MH020100733
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The CUSTOM P3X is a high-performance thermal receipt printer engineered for demanding retail and hospitality environments. With support for Windows®, Android™, iOS®, and Linux platforms, the P3X ensures seamless integration into any POS system. Its compact, robust design supports both desktop and wall-mounted installations, offering flexibility in constrained spaces. Featuring a fast print speed of up to 200 mm/s, the P3X efficiently handles high-volume transactions with crisp 203 dpi resolution.

Equipped with triple connectivity (USB, Serial, and Ethernet), this printer adapts easily to a wide range of use cases. Its long-life print head and automatic cutter guarantee low maintenance and high reliability. Whether you're printing kitchen orders or customer receipts, the CUSTOM P3X delivers professional, consistent results every time.

Product Features

  • Triple Interface: USB, RS232 Serial, and Ethernet for versatile POS connectivity

  • Cross-Platform Compatibility: Seamlessly integrates with Windows®, Android™, iOS®, and Linux

  • High-Speed Printing: Delivers up to 200 mm/sec print speed for fast transaction processing

  • Precision Thermal Printing: 203 dpi resolution for sharp text, logos, and barcodes

  • Flexible Installation: Can be used on desktop or mounted vertically on walls

  • Auto Cutter: Long-life cutter rated for 1 million cuts, supports full and partial cuts

  • Compact and Robust: Space-saving design with durable construction

  • Barcode Support: Prints 1D and 2D barcodes including QR codes

  • Memory Optimised: 8 MB SDRAM and 2 MB internal flash for reliable performance

  • Multi-Language Fonts: Supports international font sets and multiple character styles

Product Specifications

Print Method

Thermal, fixed head

Resolution

203 dpi (8 dots/mm)

Print Speed

Up to 200 mm/sec

Paper Width

57mm / 80mm

Media Roll Diameter

Max 80 mm

Interfaces

USB (or Virtual COM), RS232 Serial, Ethernet

Supported OS

Windows®, Android™, iOS®, Linux

Auto Cutter

1 million cuts (full/partial)

Print Head Life

150 km

Memory

8MB SDRAM, 2MB internal flash

Mounting Options

Desktop or vertical wall-mount

Dimensions (W x D x H)

142 x 190 x 135.5 mm

Weight

1.1 kg

Power Input

24 VDC ± 10>#/span###

Paper Sensors

Cover open, paper end, head temperature

Barcodes

1D/2D including QR, PDF417

Features

Cutter Option:
  • Auto Cutter
Max Roll Diameter:
80mm
OS Compatability:
  • Linux
  • Windows
Receipt Printers Type:
  • Thermal
Interface:
  • USB
  • Serial / RS232
  • Ethernet
Color:
  • Black
Print Speed :
  • 200mm/sec
Manufacturer
:
Custom

Attachments

Brochure (CUSTOM_P3X_pdf.pdf, 3,686 Kb) [Download]
