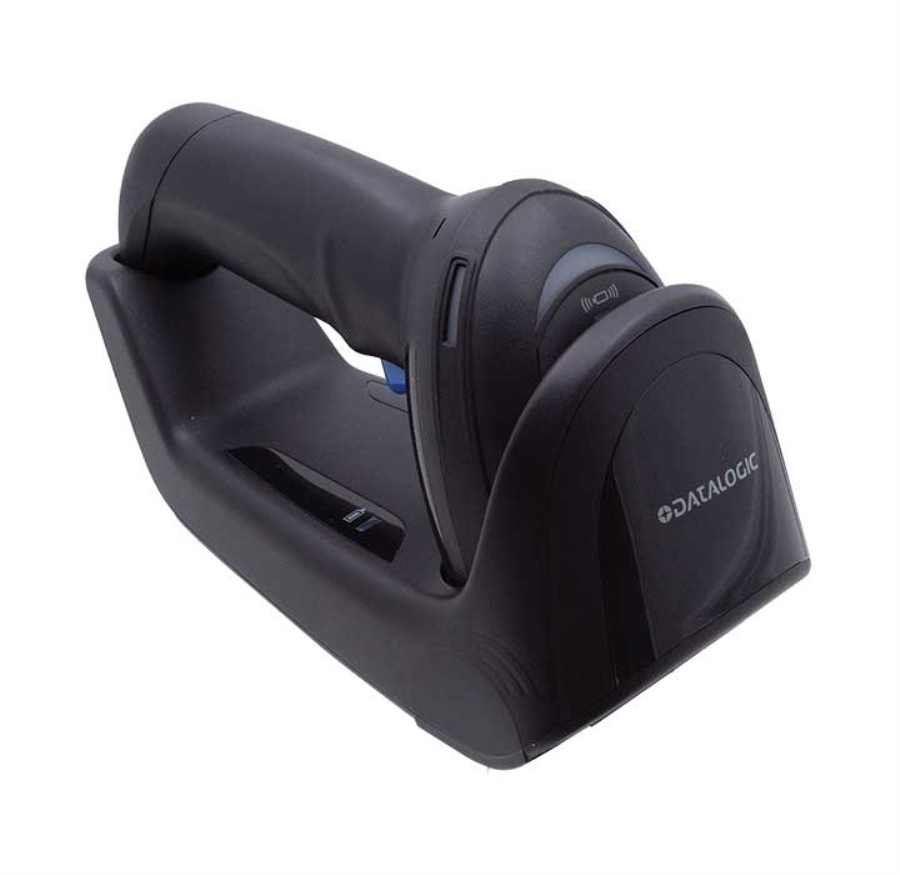

Datalogic Gryphon GM4200 Kit, 433MHZ, 1D Imager, Black with Base and USB Cable

52, 1D, High Density, 3 Years, Handheld, In Counter , Cordless, USB, Black, Datalogic
$599.00
For Special & Volume Pricing - Call +61 2 9090 4610
GM4200-BK-433K1
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic Gryphon GBT4200 is a premium wireless 1D linear imager designed for fast, efficient barcode scanning in demanding environments. With Bluetooth 4.0 Class 1 wireless technology and inductive wireless charging, the GBT4200 delivers unrivalled flexibility, top-tier reliability, and a low-maintenance solution for retail, healthcare, office, and light manufacturing applications.

Equipped with enhanced linear imaging technology, the GBT4200 scans high-density, low-contrast, and damaged 1D barcodes with ease — even from mobile device screens. Datalogic’s Green Spot technology and 3GL™ (Three Green Lights) offer real-time visual feedback for confirmed scans, while Motionix™ motion-sensing technology enables hands-free and handheld transitions automatically.

Designed with ergonomics and hygiene in mind, the scanner features Disinfectant-Ready housing, IP52 sealing, and drop resistance up to 1.8 m. With a robust 2550 mAh battery offering 80,000+ scans per charge and wireless operation up to 100 metres, this scanner is ideal for 24/7 operations.

Product Features

  • Bluetooth 4.0 (Class 1) – Wireless range up to 100 metres in open air.

  • Inductive Wireless Charging – No contact pins; reduces wear and maintenance.

  • High-Speed Linear Imager – Reads poorly printed, damaged, or mobile barcodes.

  • Advanced Read Feedback – Green Spot, beeper, and 3GL LEDs.

  • Motionix™ Technology – Automatic switching between handheld and hands-free mode.

  • Disinfectant-Ready Enclosure – Withstands daily sanitation procedures.

  • Fast Scanning Rate – Up to 1,000,000 pixels/sec and 400 reads/sec.

  • Flexible Communication – Supports USB-C / USB / RS-232 / Keyboard Wedge (via cradle).

  • Durable Design – Withstands 1.8 m drops, sealed to IP52.

Product Specifications

Model

Gryphon GBT4200

Scan Technology

Enhanced Linear Imager (CCD)

Light Source

Dual LED Array, 612–630 nm

Connectivity

Bluetooth 4.0 (Class 1); USB Charging Cradle

Interfaces (Cradle)

USB Type-C, USB, RS-232, Keyboard Wedge

Environmental Sealing

IP52

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Humidity

0–95% (non-condensing)

Supported Symbologies

All 1D linear barcodes, including GS1 DataBar

Dimensions (Scanner)

16.6 x 6.8 x 10.9 cm

Weight (Scanner)

235 g (including battery)

Warranty

3-Year Factory Warranty

Features

IP Rating:
  • 52
Scan Engine:
1D
Scan Range:
  • High Density
Warranty:
3 Years
Form Factor:
  • Handheld
  • In Counter
Connectivity:
  • Cordless
Interface:
  • USB
Color:
  • Black
Manufacturer
:
Datalogic
