DATALOGIC MGL 9800i Lng Sc Scl Saphire Dual Displ RSx1

2D, Standard, 1 Year, Handsfree, Serial / RS232, Grey, Datalogic
$4,364.00
For Special & Volume Pricing - Call +61 2 9090 4610
DLM9800LS2-R1
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

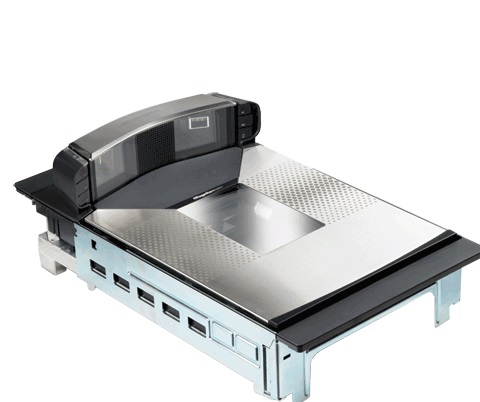

The Datalogic Magellan™ 9800i redefines retail checkout performance with its cutting-edge imaging technology, ergonomic design, and unmatched versatility. Engineered for high-volume POS environments, this premium multi-plane scanner and scale combines advanced digital imaging on all sides with customer-facing mobile device scanning, offering effortless 1D and 2D barcode reading from any angle.

Ideal for supermarkets, hypermarkets, and self-checkout systems, the Magellan 9800i features an ultra-low bonnet height, supporting ADA-compliant touchscreen and terminal placement. Its Top Down Reader (TDR) option delivers a large topside field of view and customer-facing scanning in one integrated solution, while the All-Weighs™ scale platter and ScaleSentry™ technology prevent shrinkage from misplaced items.

Supporting remote diagnostics, EAS integration, USB and RS-232 interfaces, and OPOS/JavaPOS compatibility, the 9800i is a future-ready investment for modern retail operations.

Product Features

  • 360° Imaging – Advanced digital imagers on all planes capture 1D and 2D barcodes from any orientation.

  • Customer-Facing Mobile Scanning – Integrated reader for smartphones and paper coupons, reducing transaction time.

  • Top Down Reader (TDR) – Optional cast aluminium unit adds overhead scanning and customer interaction capabilities.

  • All-Weighs™ Platter – Largest Datalogic scale platter ever, allowing accurate weighing of oversized produce and items.

  • ScaleSentry™ Shrink Monitoring – Detects items outside the weigh zone and halts transaction until corrected.

  • Ultra-Low Profile Design – Improves operator ergonomics and accommodates accessible POS layouts.

  • Multi-Interface Support – USB, RS-232, IBM 46XX, powered USB and Ethernet-compatible.

  • Smart EAS Integration – Supports Sensormatic and Checkpoint systems with built-in deactivation and status alerts.

  • Durable Glass Options – Choose between Datalogic Clear™ Glass or Sapphire Laminated Glass – both with lifetime guarantees.

Product Specifications

Scan Technology

Multi-plane digital imaging (1D & 2D) on all sides

Barcode Types

1D, 2D, Stacked, Postal, GS1 DataBar, Aztec, QR, PDF417, Micro QR

TDR Option

Yes – Cast aluminium, customer-facing scanner

Scale Options

Single or dual interval; max capacity 15 kg/30 lb

All-Weighs™ Platter

Yes – Allows weighing of oversized items on bonnet

Shrink Prevention

ScaleSentry™ infrared beam detection system

EAS Integration

Checkpoint (IX/Evolve), Sensormatic SmartSentry™ compatibility

Power Requirements

100–240 VAC, 50-60 Hz, Operating: 12W, Sleep Mode: 11W

Interfaces

RS-232, USB, IBM 46XX, powered USB, Ethernet, Remote Scale Display ports

Audio/Visual Feedback

85 dB WAV-enabled speaker, adjustable tone/volume, visual good read indicators

ESD Protection

Air discharge: 25kV

Operating Temperature

10°C to 40°C

Storage Temperature

-40°C to 70°C

Humidity

5% to 95% (non-condensing)

Dimensions (L x W x H)

Multiple lengths: 35.2 cm – 50.7 cm x 29.2 cm x 6.8 cm

Glass Options

Datalogic Clear™ or Sapphire Laminated – Lifetime Guarantee

Compliance

RoHS, China RoHS, REACH, CE

Software Support

Scanalyzer™, JavaPOS, OPOS, Wavelink Avalanche

Warranty

1-Year Factory Warranty



Features

Scan Engine:
2D
Scan Range:
  • Standard
Warranty:
1 Year
Form Factor:
  • Handsfree
Interface:
  • Serial / RS232
Color:
  • Grey
Manufacturer
:
Datalogic

Attachments

Brochure (dlm9800i_brochure.pdf, 205 Kb) [Download]
