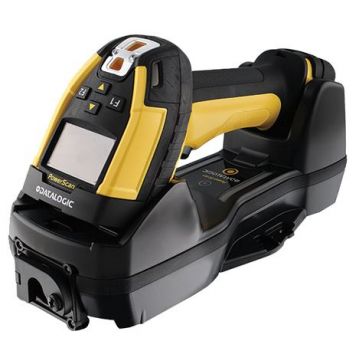

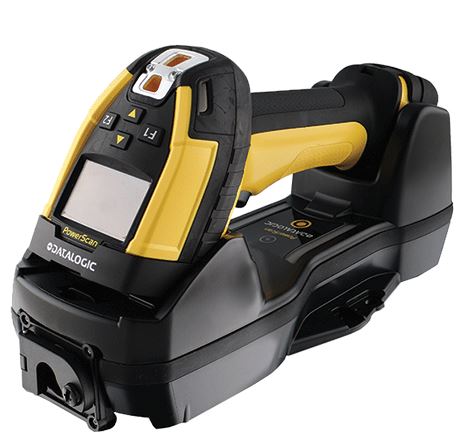

DATALOGIC PowerScan Mob 9600HP w Disp USB kit

• Snappy omnidirectional reading on 1D, stacked and 2D codes, postal codes
• Standard Range and High Performance models
• Water and Particulate Sealing Rating: IP65 and IP67; Cradle IP65; 10 million hits trigger
• Center of gravity design
• Modular cradle design allowing interface expansion
• White light illumination
• High visibility OLED Display with 4-Keys /16-Keys keypad options
• Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
• Datalogic’s Motionix™ motion-sensing technology
• Wireless Charging reducing total cost of ownership
• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.

Specifications
Scan Engine
Area Imager

Light Source
Aiming: 630 - 670 VFD (Visible Laser Diode)
Illumination: LED Array

Scan Pattern
1280 x 1024 Pixels

Scan Rate

Motion Tolerance
N/A

Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF

Capture Area
N/A

Contrast Ratio
15% Minimum reflective difference

Resolution
SR: 1D Codes: 3 mil; 2D Codes: 6 mil
HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil

Depth of field
SR Models
Code 128
5 mils: 6.4 to 30.9 cm
20 mils: 4 to 103.7 cm
40 mils: 5.5 to 175 cm
EAN/UPC 13 mils: 4 to 67.5 cm
DataMatrix 10 mils: 6 to 30 cm

HP Models
Code 128
2.5 mils: 6.3 to 11.5 cm
5 mils: 3.8 to 41 cm
40 mils: 5.5 to 242.9 cm
EAN/UPC 13 mils: 4 to 120 cm
PDF417 10 mils: 0.5 to 46.1 cm
DataMatrix 10 mils: 4.2 to 32 cm
Performance may be impacted by Bar code quality and environmental conditions

Tilt Angle
360°

Pitch Angle
+/- 52°

Skew Angle
+/- 52°

Ambient Light Immunity
0 to100,000 Lux

Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Digital Watermarking Digimarc Barcodes (HP and DC models)

Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program

Driver available
JavaPOS, OPOS Utilities

Indicators/Controls
PM9600: No Display, 1 x Scan Key
PM9600-D: Display 4 Lines x 16 Collumns, 1 Scan Key & 3 Key Keypad
PM9600-DK: Display 4 Lines x 16 Collumns, 1 Scan Key & 16 Key Keypad
Beepers
Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good read feedback
Datalogic ‘Green Spot’ on the Code
Dual good read LED's

Communication Type
Datalogic Star Cordless System™

Communication Technology
433.92 Mhz Radio
Effective radiated power: < 10mW
Range (open Air): up to 50 m, low speed 100 m
Seamless roaming
Two way communications
Point to Point or Multi-point configuration
up to 16 Scanners to a base 2-way Communication

Interfaces
to base:
RS-232 / USB / Keyboard Wedge Multi-Interface /
Ethernet and Industrial Protocols

Supply Voltage
Battery: 3350 mAh Li-ion rechargeable
Charge time with external power supply: 2.5 Hours @95%, 3.2 Hours 100%
Reads per full charge: 80,000
Input Voltage for Charge/Communication Base: 10 -30 VDC
POT: 5 VDC +/-10%

Power Consumption
Charging (Typical) < 15 W
Scanner only: 480 mA @ 3.7 V (Operative)
Cradle only: 150 mA @ 5 V (Operative)

Drop Specification
Withstands 50 drops from 2.5 m @ 20 °C
Withstands 50 drops from 2.0 m @ -20 °C

Environmental Sealing
IP65

ESD Protection
+/- 20 kV air discharge

Operating Environment
-20° ~ 50°C, Relative Humidity up tp 95% none condensing
Battery Charging: 0 to 40°C

Storage Environment
-40° ~ 70°C, Relative Humidity up tp 95% none condensing

EMC/Safety Standards
China RoHS, EU RoHS, Complies to R.E.A.C.H, CDRH Class II, IEC 60825 Class 2, IEC 62471 Class 1 LED Exempt

External Dimensions (WxDxH)
PM9600: 79 x 140 x 198 mm

Weight
PM9600: 425 g
PM9600-D: 445 g
PM9600-DK: 455 g
