Description

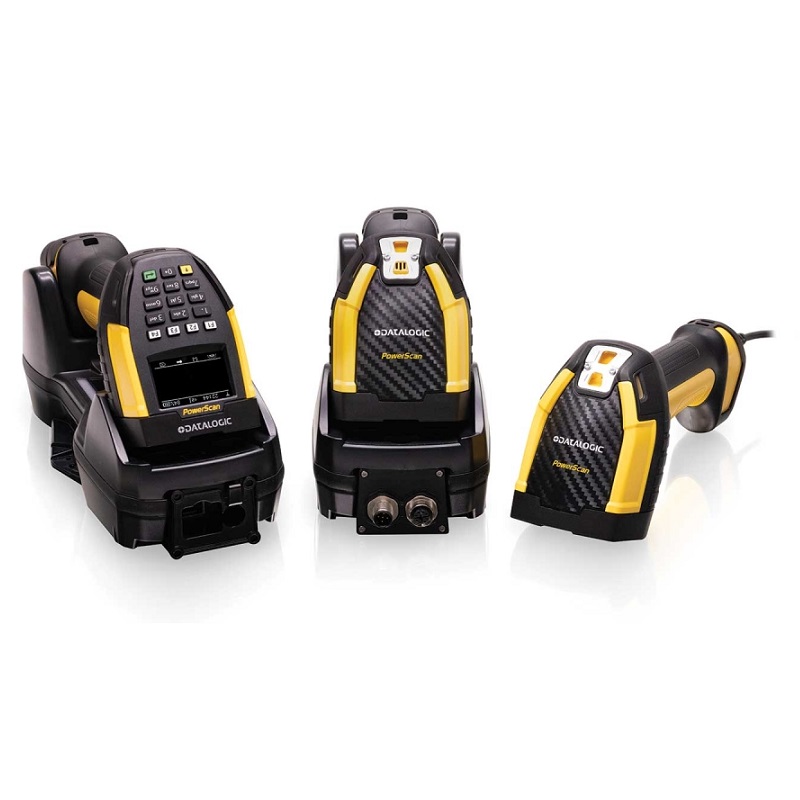

The Datalogic PowerScan™ PM9600 is a next-generation industrial cordless 2D scanner purpose-built to thrive in the most demanding warehouse and manufacturing environments. With its ultra-rugged IP65/IP67-rated housing, ergonomic balance, and robust decoding capability, it ensures high performance in all-day scanning operations.
Engineered for extreme durability and productivity, the PM9600 features Datalogic’s STAR Cordless System™, offering long-range, interference-free RF communication for up to 230 metres in open air. Its innovative wireless inductive charging system eliminates contact wear, ensuring maximum uptime and reduced maintenance costs.
Available in Standard Range (SR) and High Performance (HP) models, the PM9600 provides fast omnidirectional reading of all standard 1D, 2D, postal, and stacked barcodes—even from damaged or low-contrast labels. With options for OLED display and programmable keypads (4 or 16 keys), this device adapts to the most complex workflows on the shop floor or in the warehouse.
Product Features
-
Cordless STAR RF Communication – Reliable 433/910 MHz RF with up to 230 m range and multi-point connectivity for up to 16 scanners
-
Wireless Charging System – Inductive charging eliminates broken contact pins and extends device longevity
-
Ultra-Rugged Construction – IP65/IP67 rated, withstands 50 drops from 2.5 m and 5,000 tumbles from 1 m
-
Ergonomic Balanced Design – Reduces wrist strain and enhances comfort for intensive scanning shifts
-
OLED Display with Keypad Options – High-contrast 1.8” screen with 4-key or 16-key models available
-
Datalogic 3GL™ & Green Spot Technology – Instant visual feedback for successful reads
-
Motionix™ Technology – Automatically detects scanner movement to activate scanning instantly
-
Wide Decode Capability – Supports 1D, 2D, postal, stacked codes, and Digimarc (on HP models)
-
Fast Charge & Long Battery Life – 3,350 mAh lithium-ion battery with 80,000 scans per charge
-
Customisable Cradle Interfaces – RS-232, USB, Keyboard Wedge, Ethernet, and Industrial Ethernet support
Product Specifications
Model | Datalogic PowerScan PM9600 |
Scanner Type | Cordless 1D/2D Area Imager |
Radio Communication | STAR Cordless System™ (433/910 MHz) |
Radio Range | Up to 230 m open-air |
Wireless Charging | Inductive; no exposed contacts |
Battery | 3350 mAh Li-ion; up to 80,000 scans per charge |
Display Options | 1.8" OLED Graphic Display with 4 or 16-key keypad |
Drop Resistance | 50 drops from 2.5 m (8.2 ft) |
Sealing | Scanner IP65/IP67; Cradle IP65 |
Interfaces Supported | USB, RS-232, Keyboard Wedge, Ethernet, Industrial Ethernet |
Print Contrast | Minimum 15>% |
Decoding | 1D, 2D, Stacked, Postal, Digimarc (HP models) |
Imager Sensor | 1280 x 800 pixels |
Weight | 425–455 g (depending on model) |
Visual Feedback | Beeper, Dual Good Read LEDs, Green Spot, Vibration |
Temperature Range | -20°C to 50°C (operation), -40°C to 70°C (storage) |
Software Utilities | Datalogic Aladdin™, OPOS/JavaPOS, EASEOFCARE™ Service |
Warranty | 3-Year Factory Warranty |
Features
- Rugged
- Industrial
- Omnidirectional
- Handheld
- Cordless
- Yellow
