Description

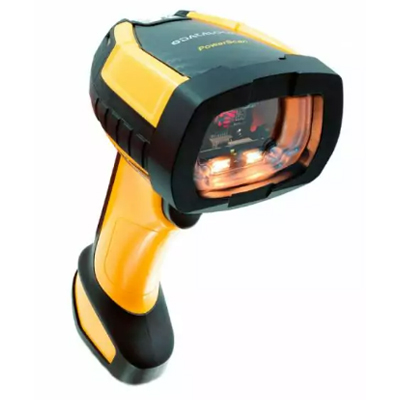

The Datalogic PowerScan PM9600 sets the benchmark in rugged, cordless barcode scanning for industrial environments. Purpose-built for warehouse, manufacturing, and logistics applications, the PM9600 combines unmatched durability with advanced imaging technology, ensuring high-speed, first-pass barcode capture every time – even in the harshest conditions.
Powered by Datalogic’s STAR Cordless System™, this industrial imager offers robust wireless communication over long ranges and features wireless charging technology, eliminating traditional contact wear and reducing maintenance costs. With an ergonomic design, IP65/IP67 sealing, and the ability to withstand 50 drops from 2.5 metres, the PM9600 delivers reliable performance in demanding, high-volume operations.

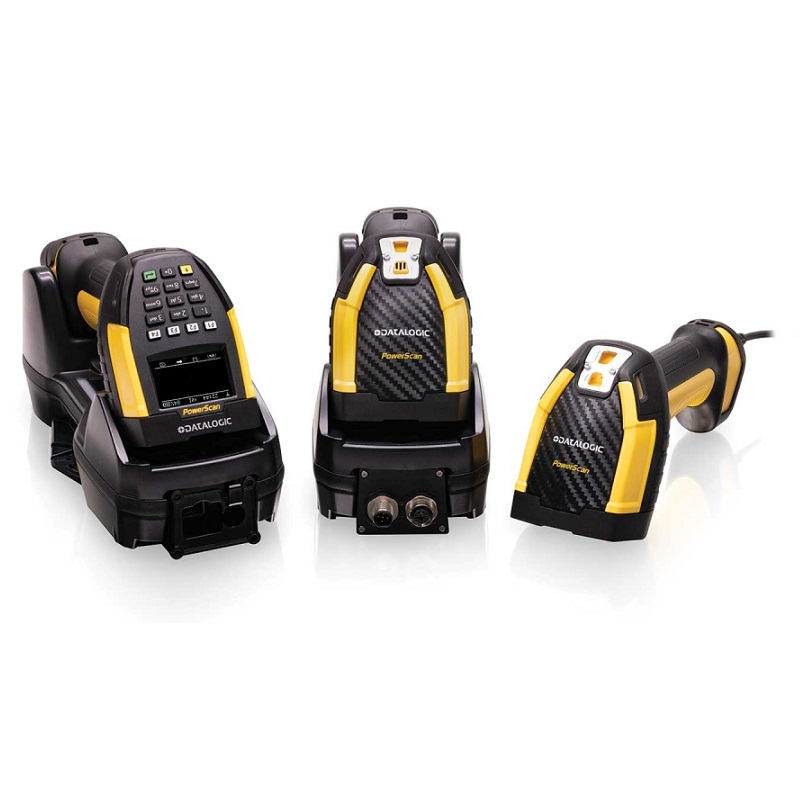

Available with a standard 4-key or 16-key keypad and bright OLED display, it provides user feedback with Datalogic's 3GL™ green light technology, loud beeper, and haptic vibration. Flexible interface support includes RS-232, USB, Keyboard Wedge, and industrial Ethernet, all through the modular BC9600 base station.
Product Features
-
Cordless Freedom: STAR Cordless System™ for interference-free, long-range wireless communication
-
Wireless Charging: Inductive technology eliminates broken contacts and reduces TCO
-
Ultra-Rugged Build: IP65/IP67 rated, withstands 50 drops from 2.5 m, 10M trigger hits
-
Advanced Scanning: Reads 1D, 2D, postal, stacked, and Digimarc codes with white LED illumination
-
High-Speed Performance: Up to 80,000 scans per charge, 3 mil (1D) / 4 mil (2D) resolution
-
Ergonomic and Balanced: Designed to reduce wrist strain during long scanning shifts
-
Flexible Configurations: Available with 4-key or 16-key keypad and OLED display
-
Superior User Feedback: Beeper, vibration, and Datalogic 3GL™ for good-read confirmation
-
Multiple Interface Support: Modular cradle with RS-232, USB, Keyboard Wedge, Ethernet options
-
Datalogic Aladdin™: Free configuration utility and SDK for seamless integration
Product Specifications
Scan Technology | Area Imager (1280 x 800 pixels) |
Decode Capability | 1D, 2D, Postal, Stacked, Digimarc (HP models) |
Wireless Communication | STAR Cordless System™ (433/910 MHz, up to 230 m range) |
Charging Method | Wireless inductive charging |
Battery | 3350 mAh Li-Ion, 80,000 reads per charge, 2.5 hr charge to 95>% |
Durability | IP65/IP67 sealing, 50 drops from 2.5 m, 10M trigger hits |
Interfaces | USB, RS-232, Keyboard Wedge, Ethernet/Industrial Ethernet via BC9600 cradle |
Display/Keypad Options | OLED 1.8” screen, 4-key or 16-key keypad |
Feedback | Beeper, vibration, 3GL™ (Green Spot, LEDs) |
Typical Depth of Field | Code 128 (5 mil): 6.4–30.9 cm (SR), 2.5–11.5 cm (HP) |
Environmental | Operating Temp: -20 to 50 °C, Storage: -40 to 70 °C, Humidity: 0–95>% |
Weight | 425–455 g depending on model |
Dimensions (H×L×W) | 19.8 x 14.0 x 7.9 cm |
Software | Datalogic Aladdin™, OPOS/JavaPOS, SDK |
Warranty | 3-Year Factory Warranty |
Features
IP Rating:
- 65
Rugged:
- Rugged
Scan Engine:
2D
Usage:
- Industrial
Warranty:
3 Years
Form Factor:
- Handheld
