Description

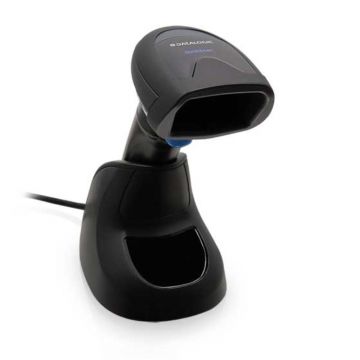

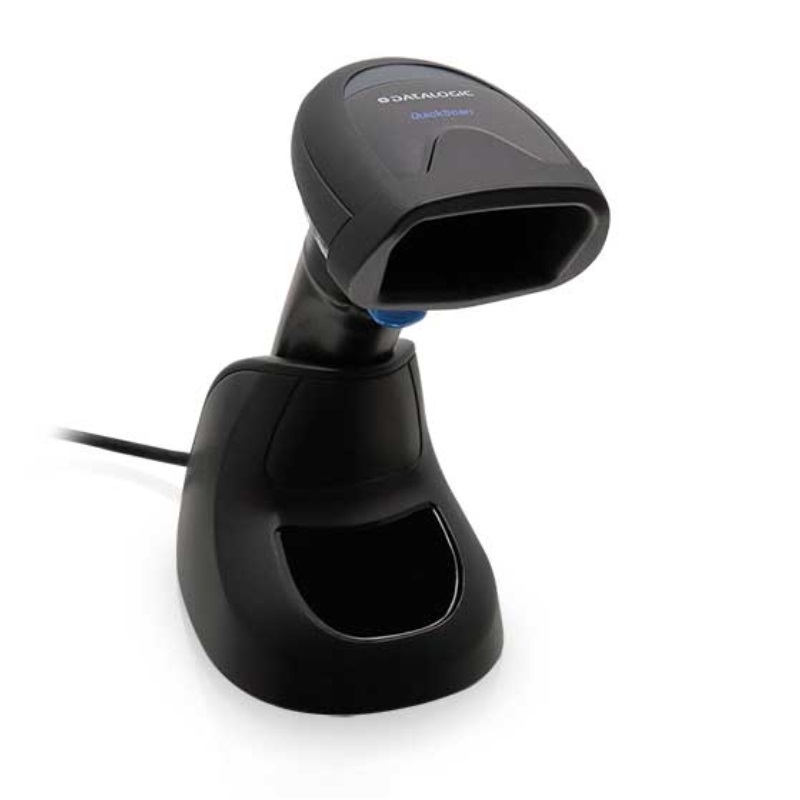

The Datalogic QuickScan™ QD2590 2D barcode scanner is built for performance in demanding retail and commercial environments. With an enhanced megapixel sensor, sharp dual LED aimer, and Datalogic’s industry-leading Green Spot technology, the QD2590 ensures fast, accurate scanning of all standard 1D and 2D barcodes—even those that are poorly printed, damaged, or displayed on mobile screens.
This upgraded model of the QD2500 series delivers exceptional Depth of Field and scanning flexibility across a wide range of media, including smartphones, paper labels, and through plexiglass. Thanks to Motionix™ motion-sensing technology, the scanner seamlessly switches between handheld and presentation modes, boosting productivity at the checkout or service counter.
Designed for high-volume retail, hospitality, government, and light industrial applications, the QD2590 is built to last with rugged drop resistance, IP52 protection, and a trigger rated for 10 million actuations. Backed by a 5-year warranty, it delivers unmatched value and performance.
Product Features
-
Advanced 1 Megapixel imager for improved precision and scanning range
-
Captures 1D, 2D, stacked, postal, and DotCode symbologies
-
Reads barcodes on mobile devices and behind plexiglass
-
Blue LED dual aimer with Datalogic Green Spot for accurate targeting and confirmation
-
Automatic switching between handheld and presentation mode via Motionix™
-
Rated for 1.5m drop resistance and IP52 sealing for dust and water resistance
-
Multiple interface support: USB, USB-C, RS-232, Keyboard Wedge
-
Ergonomic, stylish design in black or white
-
5-Year manufacturer warranty
Product Specifications
Scan Technology | Area Imager (1 Megapixel: 1280 x 800) |
Supported Barcodes | 1D, 2D, PDF417, QR, DotCode, Postal, GS1 DataBar |
Interface Options | USB, USB-C, RS-232, Keyboard Wedge |
Aiming System | Dual Blue LED (470nm), Datalogic Green Spot |
Illumination | Red LED (617nm) |
Motion Tolerance | 30 IPS (inches per second) |
Reading Angle | Pitch: ±65°, Skew: ±65°, Roll: 360° |
Max Resolution | 1D: 3 mil, PDF417: 3 mil, DM: 5 mil, QR: 6.7 mil |
Print Contrast Ratio | 15% minimum |
Drop Resistance | 1.5 m / 5 ft |
Sealing | IP52 |
Dimensions | 14.8 x 6.8 x 12.6 cm |
Weight | 145 g |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -40°C to 70°C |
Light Immunity | Up to 100,000 lux |
Warranty | 5 Years |
Features
- Handheld
- Serial / RS232
- Black
