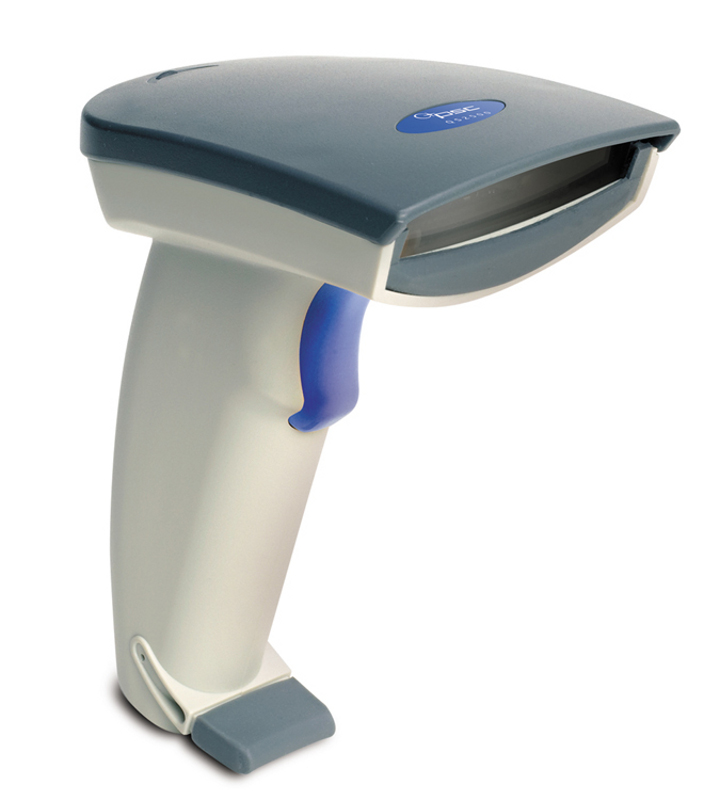

DataLogic QS-2500 QuickScan Linear Imager Handheld Barcode Scanner

DLQS2500-K
[Contact us for a price] Request a quote
For Special & Volume Pricing – Call 1300 590 094

Need Help

Choosing a Product
1300 590 094 Live Chat Email Us
Talk to our technical Expert
price match

Description

 The QuickScan QS2500 is Datalogic’s general purpose low cost handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price.
Main Features:
  • Handheld Linear Imager Scanner
  • Aggressive reading and extended depth-of-field
  • Reliable and durable, No moving parts
  • 10 drops from 1.5m to concrete
  • Developed with operator comfort in mind
  • Lightweight, ergonomic design
  • RSS Decoding & PDF417 reading
  • Available in Light grey (see picture) and Black

Attachments

Datalogic DLQS2500-Brochure (qs2500.pdf, 143 Kb) [Download]

Specifications

Depth of field

5 mil

2.5 - 11.4cm

10 mil

1.3 - 21.6 cm

13 mil (100% UPC)

1.3 - 28.0 cm

20 mil

2.5 - 40.6 cm

Lightsource

660nm Visible Red Diode

Scan rate

200 Scan/sec

Resolution

0.13mm/5 mils

Print Contrast

25% or higher

Scan Width

10.2 cm at 12.7 cm from label

Pitch Angle

+/- 60º

Skew Angle

+/- 75º

Scan Angle

+/- 46º

Interface

PS2 Keyboard wedge, Wand emulation, Standard RS-232, USB, IBM 46xx and IBM USB

Symbologies supported

UPC-A/E, EAN8/13, JAN8/13, Code128, Codabar, Pharmacode39, Code93, Interleaved 2 of 5, Code39, Standard 2 of 5, IATA, MSI, Plessey, RSS 14, RSS Expanded, RSS-14 Stacked, RSS Limited, Matrix 2 of 4, PDF417 with audio assist.

Dimensions (H x W x L)

185 x 74 x 114 mm
