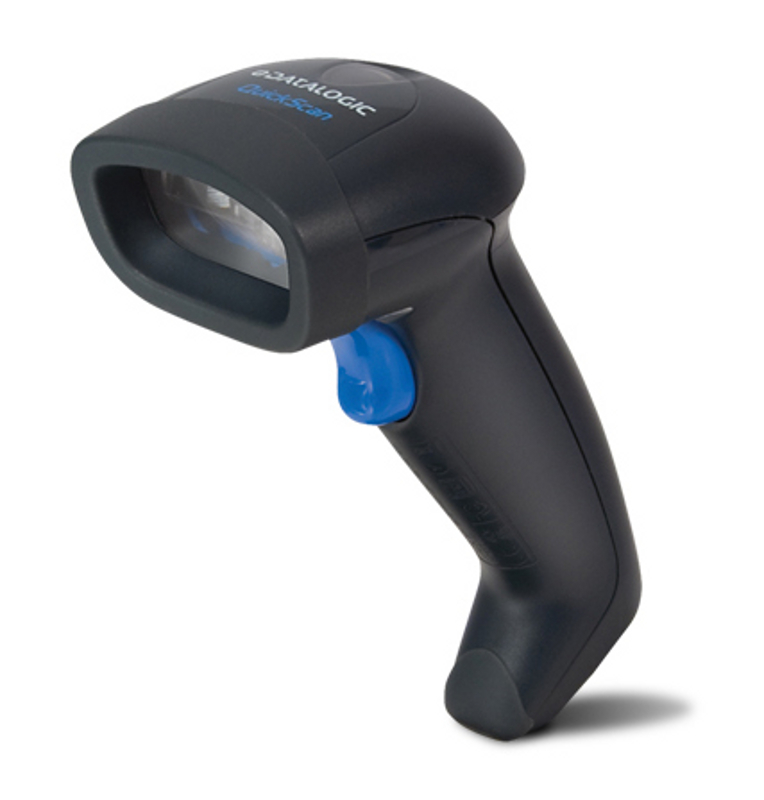

Datalogic QuickScan QD2100 Series Omni Directional Barcode Scanner

[Contact us for a price]
For Special & Volume Pricing - Call 0291 919 694
DLC100405, DLC100403, DLC100404

Description

**Discontinued Replacement: QD2130**

The QuickScan I QD2100 Series linear imaging reader is an entry level product that is perfect for use in retail and office environments plus activities associated with couriers and postal services. The QD2100 Series is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance especially on hard to read bar codes and is capable of reading a wide range of symbologies including the majority of 1D codes plus GS1 DataBar™ linear codes. The QD2100 Series reader features Datalogic’s exclusive patented ‘Green Spot’ for good read feedback directly on the code. When in Stand Mode, the Green Spot remains on to show the operator where to position the code for quick and intuitive reading.

Main Features:
  • Datalogic Green Spot for good read feedback
  • User replaceable scan window
  • Two multi-interface options support the most popular interface combinations
  • Supports GS1 DataBar™ codes
  • Remote host download functions (Model QD2110 Series)
  • Water and Particulate Sealing Rating: IP42
  • Drop resistance to 1.5 m / 5.0 ft

Attachments

Datalogic QuickScan QD2100-Brochure (DAT_QD2100_DS.pdf, 286 Kb) [Download]

Specifications



Decoding Capability



1D / Linear Codes

Autodiscriminates all standard 1D codes including GS1 DataBarTM linear codes

Postal Codes

China Post

Stacked Codes

GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional

Electrical



Current

Operating (Typical): 340 mA @ 5 VDC

Standby/Idle (Typical): 190 mA @ 5 VDC

Input Voltage

QD2110: 4 -14 VDC; QD2130: 5 VDC +/- 10%

Physical Characteristics

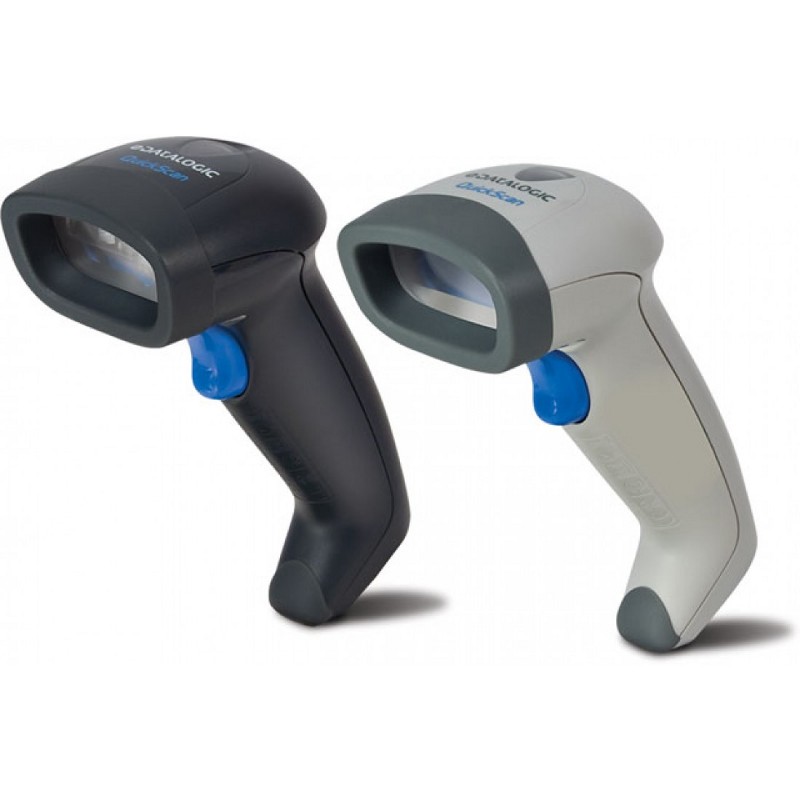

Colors Available

Black; White

Dimensions

17.0 x 7.1 x 6.6 cm / 6.7 x 2.8 x 2.6 in

Weight

121.9 g / 4.3 oz

Reading Performance



Light Source

Red LED 610-650 nm

Print Contrast Ratio (Minimum)

15%

Read Rate (Maximum)

270 reads/sec.

Reading Angle

Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 65°

Reading Indicators

Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED

Resolution (Maximum

0.102 mm / 4 mils

Interfaces

RS-232 / IBM 46XX / USB Multi-Interface: QD2110

RS-232 / USB / Keyboard Wedge / Wand Multi-Interface: QD2130
