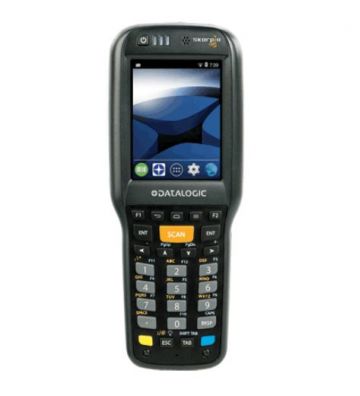

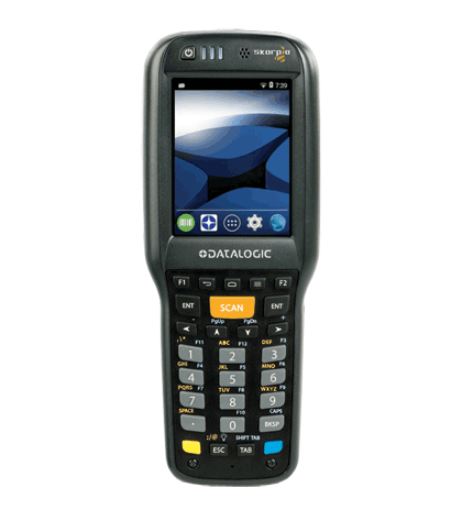

Datalogic Skorpio X4 BT Wifi Std 2D img 28 Key Num And 4.4 Mobile Computer

$2,609.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match


DATALOGIC Skorpio X4 BT Wifi Std 2D img 28 Key Num And 4.4

Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4

Features :

  • Rugged PDA
  • All new/high performance architecture with 3x performance over its predecessor
  • Increased ruggedness: 1.8 m / 6.0 ft drop resistance
  • Choice of Windows Embedded Compact (WEC7) or Android Operating Systems
  • Wi-Fi: 802.11 a/b/g/n with MIMO antennas
  • Bluetooth v4.0 Wireless Technology
  • Full compatibility with Skorpio X3 accessories
  • Choice of 3 keyboard layouts for both WEC7 and Android

Specifications :

Processor : TI OMAP4 @ 1 GHz CPU

Operating Platform : Microsoft Windows Embedded Compact 7 (WEC7) or
Android v4.4*

Development Environment : WEC7:
Datalogic Windows SDK™,
Wavelink® Studio™
Datalogic Android SDK
Xamarin SDK

Software Utilities : Applications: Pal Application Library pre-licensed (WEC7 only)
Wavelink Avalanche® pre-licensed (WEC7 only),
42 Gears SureLock pre-licensed for device lockdown (Android only)
SOTI MobiControl
Datalogic xPlatform Utility (DXU) pre-licensed,
Datalogic Desktop Utility (DDU) pre-licensed for device lockdown (WEC7 only)
SureFox locked web browser pre-licensed for WEC7 and Android models
Wavelink® Terminal Emulation™ pre-licensed (for Pistol Grip/WEC7 models only)
StayLinked SmartTE (for Android)

Memory : Ram Memory: 1 GB
Flash Memory: 8 GB (partially used for firmware and reserved data, depending on the OS)

Memory Expansion : Micro-SD card slot: Compatible with Micro SD-HC cards up to 32 Gb

Scan Options : 2D IMAGER (STANDARD RANGE) Megapixel sensor for extended range;
White LED Illumination
Optical Resolution: 1D codes: 3 mils, 2D codes: 6.6 mils
Depth of Field (typical): 4.5 to 74 cm (13 mil/EAN), depending on bar code density and type
1D IMAGER 2500 pixel sensor; Sharp green LED scan line
Optical Resolution: 2.5 mils (linear codes)
Depth of Field: 4.0 to 74 cm (13 mil/EAN), depending on bar code density and type

Symbologies supported : Depending on Scan enging used:
1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES: Aztec Code, Data Matrix, MaxiCode, PDF417, MicroPDF417, Micro QR Code, QR Code
POSTAL CODES: Australian Post, Japanese Post, KIX Code, Royal Mail, USPS Intelligent Mail, USPS PLANET, USPS POSTNET
GS1 COMPOSITE CODES UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1 128 Composite (Composites supported on WEC7 only)

Keyboards : 28-key Numeric, 38-key Numeric/Function or 50-key QWERTY backlit keyboard

Audio : Wideband Speech (HD Audio) supported on Android

Display : TFT / Transflective LCD with 240 x 320 pixel resolution, LED backlight and integrated touch screen, 3.2 in diagonal

Camera : N/A

I/O Ports : Main connector with USB 2.0 High Speed Host (480 Mbps) and Client, RS-232 up to 115.2 Kbps
microUSB port for power and communications
Ethernet: via single dock (external module) or multi-slot dock

Radio Options : LOCAL AREA NETWORK (WLAN): TI Wi-Link 8, IEEE 802.11a/b/g/n; Frequency Range: Country dependent, typically 2.4 and 5 GHz; Cisco Compatible CCX v4 Security
PERSONAL AREA NETWORK (WPAN): Bluetooth v4 with BLE (Android models); Bluetooth v2.1 + EDR (WEC7 models)

Battery : Removable battery pack with rechargeable Li-Ion batteries.
Standard: 3.7 V; 3000 mAh (11.1 Watt-hours)
Extended: 3.7 V; 5200 mAh (19.2 Watt-hours)
Extended Battery is standard on the Gun Models

Battery Life :

Drop Specification : Withstands drops from 1.8 m onto concrete

Environmental Sealing : IP64

ESD Protection :

Operating Environment : -10 ~ 50°C

Storage Environment : -20 ~ 70°C

EMC/Safety Standards : AGENCY APPROVALS The product meets necessary safety and regulatory approvals for its intended use.
LASER CLASSIFICATION VLD - Class 2 IEC/EN60825-1; Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice No. 50 dated June 24, 2007.

External Dimensions (WxDxH) : Handheld: 193 x 76 x 42 mm (61 x 35 mm at keyboard)
With Pistol Grip: 193 x 76 x 156 mm

Weight : Handheld (with standard battery): 388 g (with extended Battery) 422 g
Pistol Grip (with standard battery): 482 g (with extended Battery) 516 g



Brochure (skorpio_x4.pdf, 127 Kb) [Download]
