Description

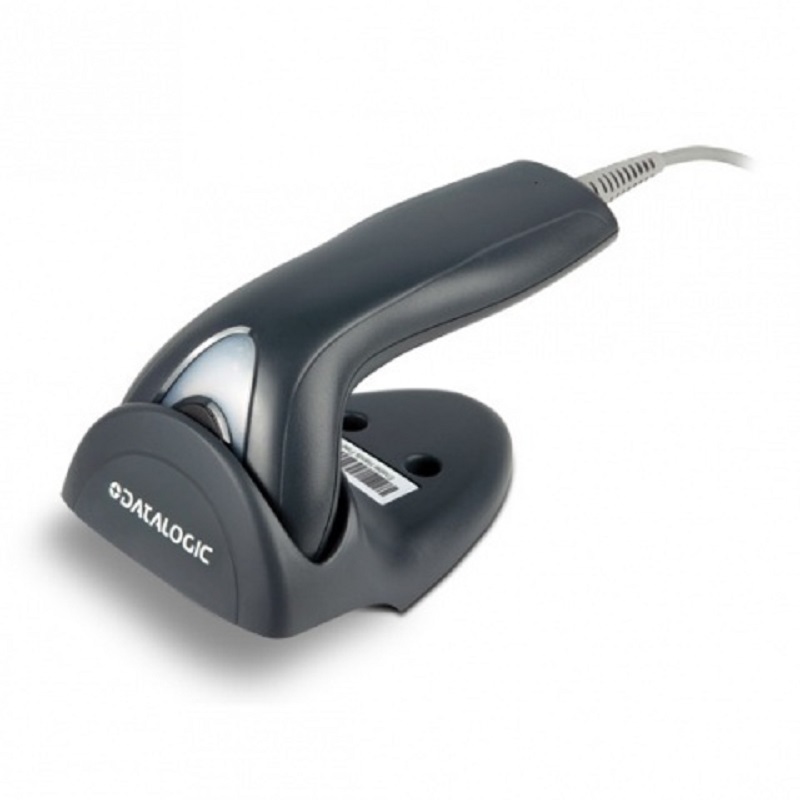

The Datalogic Touch™ TD1100 series is a cost-effective yet high-quality linear imaging barcode scanner designed for contact reading. It’s perfect for low- to medium-volume applications in retail, document handling, libraries, and light industrial environments. Available in two widths—Touch 65 (6.5 cm window) and Touch 90 (9 cm window)—this scanner delivers superior performance on all standard 1D barcodes, including damaged or poorly printed labels.
With a lightweight and compact design, the Touch TD1100 is robust enough to handle multiple 1.5m drops to concrete and features multi-interface options including USB, RS-232, Keyboard Wedge, and Wand Emulation (Pro models). It supports hands-free scanning with an optional ‘read-thru’ stand and offers advanced features like GS1 DataBar support and Datalogic’s Aladdin™ configuration utility.
Product Features
-
Contact scanning with high accuracy on poorly printed or damaged barcodes
-
Choice of 6.5 cm or 9 cm reading window (Touch 65 or Touch 90)
-
Lightweight, compact design ideal for desktop or wall-mount use
-
Supports GS1 DataBar linear and stacked codes
-
Multi-interface options (USB / RS-232 / KB Wedge / Wand Emulation)
-
Drop resistance up to 1.5m on concrete
-
Optional read-thru stand for hands-free scanning
-
Datalogic Aladdin™ software for simple setup and configuration
-
5-Year Manufacturer Warranty
Product Specifications
Scan Technology | Linear Imager (Contact Reading) |
Supported Barcodes | All standard 1D including GS1 DataBar formats |
Reading Width | Touch 65: 6.5 cm / Touch 90: 9.0 cm |
Light Source | 640 nm Red LED |
Resolution | 0.102 mm / 4 mil |
Print Contrast Ratio | Minimum 25>% |
Reading Angle | Pitch ±65°, Skew ±70°, Roll ±45° |
Reading Range | Up to 15 cm (EAN13) / 12 cm (Code 39 10 mil) |
Interfaces | USB, RS-232, Keyboard Wedge, Wand Emulation |
Indicators | LED and Beeper (adjustable tone) |
Power Requirements | 5VDC ± 0.5V, <100mA during operation |
Dimensions | Touch 65: 160 × 84 × 58 mm / Touch 90: 170 × 104 × 67 mm |
Weight | Touch 65: 130g / Touch 90: 153g |
Drop Resistance | Withstands 1.5 m drops to concrete |
Sealing | IP30 |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 70°C |
Humidity (Non-Condensing) | 5% to 95>% |
Mounting Options | Optional Desk/Wall Holders for Touch 65/90 |
Software | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 5-Year Manufacturer Warranty |
Features
IP Rating:
- 30
Scan Engine:
1D
Scan Range:
- Standard
Warranty:
5 Years
Form Factor:
- Handsfree
Connectivity:
- Corded
Interface:
- USB
- Serial / RS232
Color:
- Black
