Description

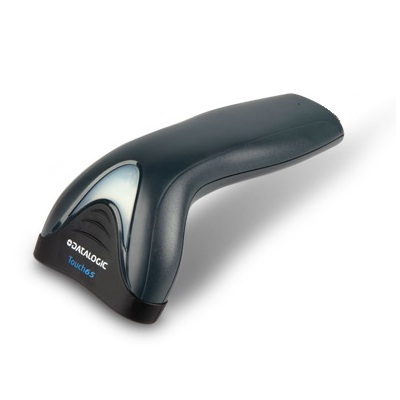

The Datalogic Touch™ TD1100 series offers a reliable and cost-effective solution for businesses that require high-performance close contact scanning. Designed for retail, libraries, office automation, and document processing environments, the TD1100 is a linear imager barcode scanner that reads all standard 1D barcodes, including those that are poorly printed or damaged.
With options for 65mm or 90mm wide scanning windows, the TD1100 series is ideal for scanning both standard and wider barcodes. Its lightweight and compact design makes it easy to use for extended periods, while its IP30-rated construction and 1.5m drop resistance ensure robust durability.
The TD1100 series comes in two versions:
-
Lite models: USB or RS232/Keyboard Wedge interfaces
-
Pro models: Multi-interface support (USB, RS232, Keyboard Wedge, Wand Emulation)
Product Features
-
Available in 65mm or 90mm scanning window widths
-
Reads all standard 1D barcodes including damaged or poorly printed labels
-
Multiple interface options: USB, RS-232, Keyboard Wedge, Wand Emulation
-
Robust 1.5m drop resistance for enhanced durability
-
Hands-free scanning with read-thru holder (optional)
-
Green Spot good read feedback LED and adjustable tone beeper
-
5-year manufacturer's warranty
-
Complies with EU and China RoHS standards
Product Specifications
Scan Technology | Linear Imager (1D) |
Light Source | 640 nm visible red LED |
Maximum Resolution | 0.102 mm / 4 mil |
Interfaces Available | USB, RS-232, Keyboard Wedge, Wand Emulation |
Drop Resistance | 1.5 m / 5.0 ft |
Environmental Sealing | IP30 |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 70°C |
Print Contrast Ratio | Minimum 25>#/span### |
Dimensions (Touch 65) | 16.0 x 8.4 x 5.8 cm |
Dimensions (Touch 90) | 17.0 x 10.4 x 6.7 cm |
Weight | 130 g (Touch 65), 153 g (Touch 90) |
Supported Barcodes | Code 39, EAN-13, UPC, GS1 DataBar, and more |
Warranty | 5-Year Factory Warranty |
