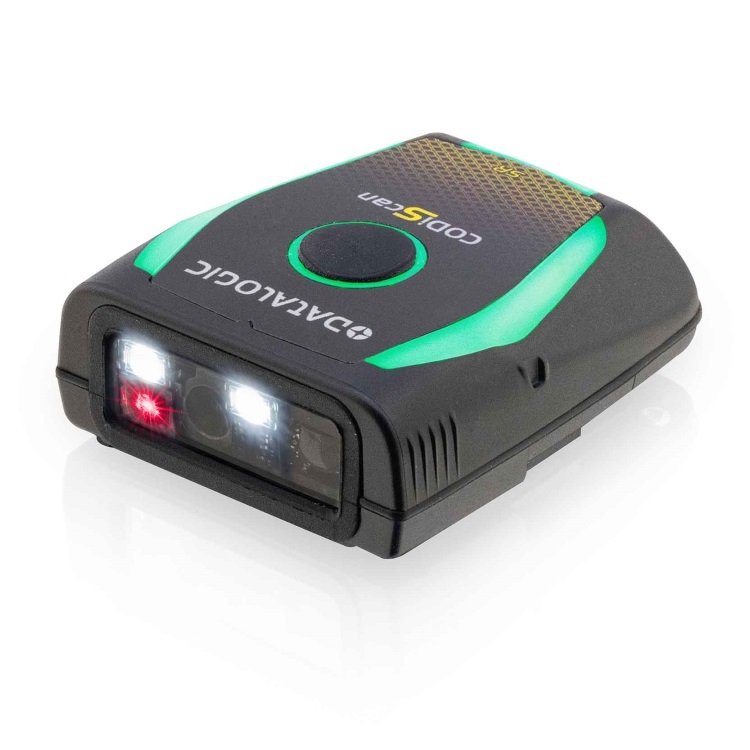

DATALOGIC WEARABLE SCANNER CODISCAN 2D-MR BT

54, 2D, 1 Year, Handsfree, Cordless, Bluetooth, Green, Datalogic
$1,029.00
For Special & Volume Pricing - Call +61 489 087 085
HS7600SR
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic CODiScan is an ultra-lightweight, Bluetooth wearable barcode scanner engineered to enhance operator productivity in logistics, retail, and manufacturing. Weighing just 44g, the CODiScan enables true hands-free scanning with multiple mounting options – on the hand, neck, belt, or pocket – offering unmatched comfort during long shifts.With intelligent aiming, 360° LED feedback, haptic vibration, and Datalogic’s Green Spot on-label confirmation, this scanner delivers fast, accurate results while eliminating the inefficiencies of traditional handheld models. It captures all common 1D/2D barcodes with an impressive read range up to 5 metres and runs up to 16 hours on a single 2-hour charge.CODiScan is configurable via the Datalogic Aladdin™ mobile or web app and integrates seamlessly with Android™ devices and Datalogic’s Gateway for PC/cloud connectivity. Designed for durability with IP54 sealing and drop resistance up to 1.8 m, the CODiScan delivers industrial-grade performance in an ergonomic, modular design.


Product Features

  • Feather-Light and Compact: Just 44g with minimal footprint for all-day wear
  • Versatile Mounting: Wearable on hand (adjustable trigger), belt, neck, or pocket
  • High-Performance Scanning: Captures 1D/2D barcodes up to 5 metres (100 mil Code 39)
  • Smart Aiming and Feedback: Green Spot, LEDs, vibration, and audio confirmation
  • Ergonomic Modularity: Washable hand trigger and re-usable electronics for hygiene & sustainability
  • Long Battery Life: Up to 16 hours / 12,000 scans on a 2-hour charge
  • Flexible Charging Options: 1-slot, 2-slot modular (up to 6), or 12-slot industrial-grade chargers
  • Bluetooth 5.2 & Wi-Fi Gateway: Fast pairing and reliable data transmission
  • Easy Configuration: Mobile Aladdin app and web tools for quick setup, firmware updates, and analytics
  • Rugged Build: IP54 rated


Product Specifications

Scan Technology

Area Imager (1280 x 960 pixels)

Decode Capabilities

1D, 2D, Postal (QR, PDF417, Data Matrix, GS1, USPS, etc.)

Feedback System

Green Spot, rear & side LEDs, audio (85 dBA), vibration

Wireless Connectivity

Bluetooth 5.2 (BLE/Classic), Wi-Fi via Gateway

Transmission Range

Bluetooth: Up to 100 m / 328 ft

Mounting Options

Hand Trigger (Right/Left), Neck, Belt, Pocket

Battery

640 mAh Li-Polymer (Rechargeable)

Ingress Protection  IP54

Dimensions

53 x 44 x 19 mm / 2.0 x 1.7 x 0.7 in

Weight

44 g / 1.5 oz

Operating Temperature

-20 to 50 °C / -4 to 122 °F

Compatibility

Android, PC via Gateway; Pre-installed app on Memor 11

Warranty

1-Year (standard)

Features

IP Rating:
  • 54
Scan Engine:
2D
Warranty:
1 Year
Form Factor:
  • Handsfree
Connectivity:
  • Cordless
Interface:
  • Bluetooth
Color:
  • Green
Manufacturer
:
Datalogic

Attachments

Brochure (Datalogic-CODiScan-DS-pdf.pdf, 3,061 Kb) [Download]
