Description

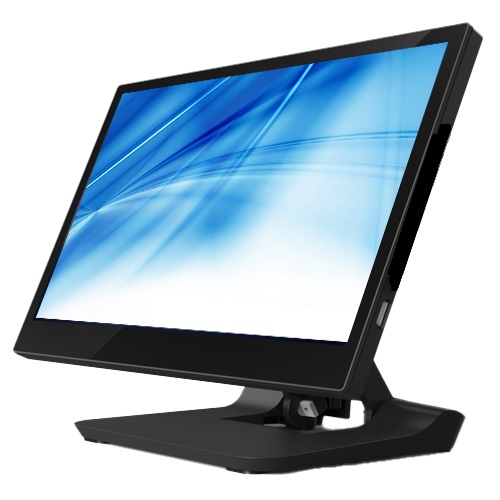

The Element 455W is a stylish and space-efficient 15.6" fanless touch POS terminal, powered by the Intel Celeron J6412 processor, 8GB DDR4 RAM, and a high-speed 128GB M.2 SSD. Designed for modern retail and hospitality environments, it features a true-flat PCAP touchscreen, full HD resolution (1920x1080), and a foldable stand with VESA mounting for wall or pole installation.
This all-in-one POS system offers flexibility and performance, ideal for checkouts, service counters, and digital signage. With support for a wide range of peripherals including MSR, iButton, fingerprint reader, and second displays, the 455W is a powerful tool to improve service speed, efficiency, and customer experience.
Product Features
- 15.6" Full HD TFT LCD (1920x1080) with true-flat PCAP multi-touch
- Intel Elkhart Lake Celeron J6412 (up to 2.6GHz) processor
- 8GB DDR4 RAM (expandable to 32GB)
- 128GB SSD (M.2) for fast and reliable storage
- Fanless and silent operation, ideal for hospitality and retail
- Foldable stand and VESA mount support for desktop, wall, or pole installation
- Sleek black housing with optional modular peripherals: MSR, iButton, Fingerprint, 2nd display
- Pre-installed with Windows 10 IoT Enterprise LTSC 2021 64-bit
- Built-in 3W speaker and LED indicator
- EMC & Safety certifications: CE, FCC, LVD
Product Specifications
Specification | Details |
Model | Element 455W |
Part Number | TTFLEL455025 |
Processor | Intel® Celeron J6412 (Elkhart Lake, up to 2.6GHz) |
System Memory | 8GB DDR4 (Max 32GB) |
Storage | 128GB M.2 SSD |
Display | 15.6" Full HD (1920x1080) TFT LCD, 220 nits brightness |
Touch Panel | True-flat PCAP multi-touch (10 points) |
OS | Windows 10 IoT Enterprise LTSC 2021 (64-bit) |
USB Ports | 2 x USB 3.0, 2 x USB 2.0, 1 x USB-C 2.0 (data), 1 x USB-C 3.0 (data) |
Serial Ports | 2 x DB9 COM (5V/12V selectable) |
Video Output | 1 x FeDP (mini DisplayPort for second display) |
LAN | 1 x RJ45 (Gigabit Ethernet) |
Cash Drawer Port | 1 x RJ11 (12V/24V) |
Audio | 1 x 3W internal speaker |
Expansion Slot | 1 x miniPCI-E |
Optional I/O | Powered USB (12V, 24V), RUSB in display |
Mounting | VESA 100 x 100 mm |
Power Supply | 65W / 19V External Adapter |
Operating Temperature | 0°C ~ 35°C |
Storage Temperature | -20°C ~ 60°C |
Humidity | 20% ~ 85% RH non-condensing |
Dimensions | 369mm x 209mm x 264mm |
Weight | 4.3kg |
Warranty | 3 Years |
Features
- Black
- Single
- RJ11
- Serial
- USB
- No
- Windows
- No
- Intel Celeron
- 8 GB
- No
- 15.6 inch
- 128GB
- SSD
- Touch POS
